LG 86BH5F-M 86-inch Ultra Stretch Signage

Model 86BH5F-M

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Screen: 86-inch IPS, 58:9 Ultra Stretch format
  • Native resolution: 3840 × 600 pixels
  • Typical brightness: 500 cd/m²
  • Orientation: Landscape or portrait, subject to the installation instructions
  • Picture-by-Picture: Up to four content regions
Digital Signage & Video Walls Part of our complete AV solutions Explore Solutions
LG 86BH5F-M 86-inch Ultra Stretch Signage
  • Authorized LG Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the LG 86BH5F-M?

The LG 86BH5F-M is an 86-inch Ultra Stretch signage display with a 58:9 screen for advertising and information in long, narrow spaces. Its 3840 × 600 native pixel grid suits content created specifically for the panel, rather than a standard 16:9 TV layout. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

This IPS commercial display is intended for a planned signage installation. Use the wide canvas for a continuous banner or separate information areas, with artwork scaled to 3840 × 600 pixels.

  • Orientation: Landscape or portrait, subject to the installation instructions.
  • Picture-by-Picture: Up to four content regions.

Use cases

Applications

  • Retail banner advertising designed for 58:9

  • Indoor transport and venue information

  • Reception feature signage and wayfinding

Technical details

Technical Specifications

Display

Screen
86-inch IPS, 58:9 Ultra Stretch format
Native resolution
3840 × 600 pixels
Typical brightness
500 cd/m²
Picture-by-Picture
Up to four content regions
Screen
86-inch IPS, 58:9 Ultra Stretch format.
Native resolution
3840 × 600 pixels.
Typical brightness
500 cd/m².

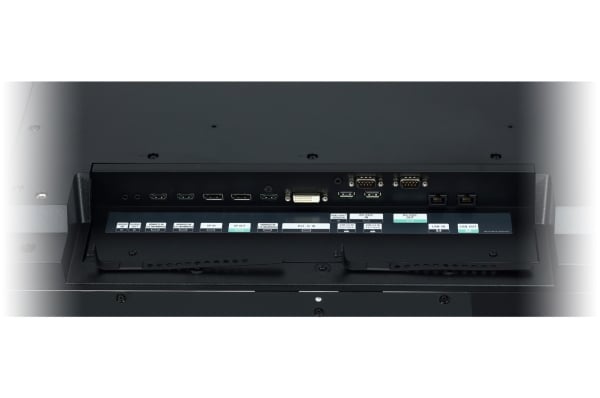

Connectivity

Video connections
Three HDMI inputs, DisplayPort and DVI-D

Physical & Mounting

Orientation
Landscape or portrait, subject to the installation instructions
Net panel weight
20.5 kg
Dimensions (W × H × D)
2158.3 × 348.5 × 81.7 mm
VESA mounting
600 × 200 mm

Model & Identification

Model
86BH5F-M
Manufacturer part number
86BH5F-M

General

Operating environment
Indoor, 0–40°C

In the box

What's Included

  • One LG 86BH5F-M display

  • Remote control

  • Two remote batteries

  • Power cord

  • DisplayPort cable

  • RS-232C cable

  • IR/light sensor receiver

  • Manual

Installation

Installation & Mounting

Recommended Equipment and Mounting Checks

VSYS VS01A-46F Fixed TV Mount. VSYS wall-mount candidate for the stated load and 600 × 200 mm pattern. Confirm that its rails clear the short panel height and that the complete mounting arrangement suits the required orientation.

VSYS VTLX16-69FW TV Cart. VSYS floor-cart candidate supporting the stated panel load and 600 × 200 mm pattern. Its wide screen needs a clearance and stability check; confirm the arrangement with Corporate AV before purchase.

VSYS VS01A-46F Fixed TV MountVSYS VTLX16-69FW TV Cart

Installation

Specify a VSYS wall support or floor cart against the 600 × 200 mm hole pattern and 20.5 kg panel load. For this unusually wide cabinet, confirm rail overhang, panel clearance, orientation approval, cable access and stability before ordering. The linked supports are specification candidates requiring a mechanical check, not unconditional approval for every layout. Keep the complete assembly indoors within LG's temperature limits.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your 86BH5F-M quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the LG 86BH5F-M used for?

The LG 86BH5F-M is an 86-inch Ultra Stretch signage display with a 58:9 screen for advertising and information in long, narrow spaces. Its 3840 × 600 native pixel grid suits content created specifically for the panel, rather than a standard 16:9 TV layout.

Is 86BH5F-M a standard 3840 × 2160 4K television?

No. Its native pixel grid is 3840 × 600, with a 58:9 aspect ratio. The 3840-pixel width does not make it a 3840 × 2160 panel. Design the graphics for the native canvas to avoid stretched text or cropped information.

Can 86BH5F-M be used outdoors or in direct UAE sunlight?

Treat this as an indoor signage display. Brightness alone does not establish weather resistance or direct-sun suitability. Share the intended location, ambient light and operating schedule with Corporate AV so the installation and content can be assessed.

Which equipment should I consider with 86BH5F-M?

VSYS VS01A-46F Fixed TV Mount. VSYS wall-mount candidate for the stated load and 600 × 200 mm pattern. Confirm that its rails clear the short panel height and that the complete mounting arrangement suits the required orientation.

VSYS VTLX16-69FW TV Cart. VSYS floor-cart candidate supporting the stated panel load and 600 × 200 mm pattern. Its wide screen needs a clearance and stability check; confirm the arrangement with Corporate AV before purchase.

What is included with 86BH5F-M?

One LG 86BH5F-M display; Remote control; Two remote batteries; Power cord; DisplayPort cable; RS-232C cable; IR/light sensor receiver; Manual. Confirm the exact regional pack on the quotation.

What should I check before installing 86BH5F-M?

Specify a VSYS wall support or floor cart against the 600 × 200 mm hole pattern and 20.5 kg panel load. For this unusually wide cabinet, confirm rail overhang, panel clearance, orientation approval, cable access and stability before ordering. The linked supports are specification candidates requiring a mechanical check, not unconditional approval for every layout. Keep the complete assembly indoors within LG's temperature limits.

Can Corporate AV help specify 86BH5F-M for a UAE project?

Share your 86BH5F-M quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request an LG 86BH5F-M quotation in the UAE?

Contact Corporate AV about LG 86BH5F-M. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
