LG

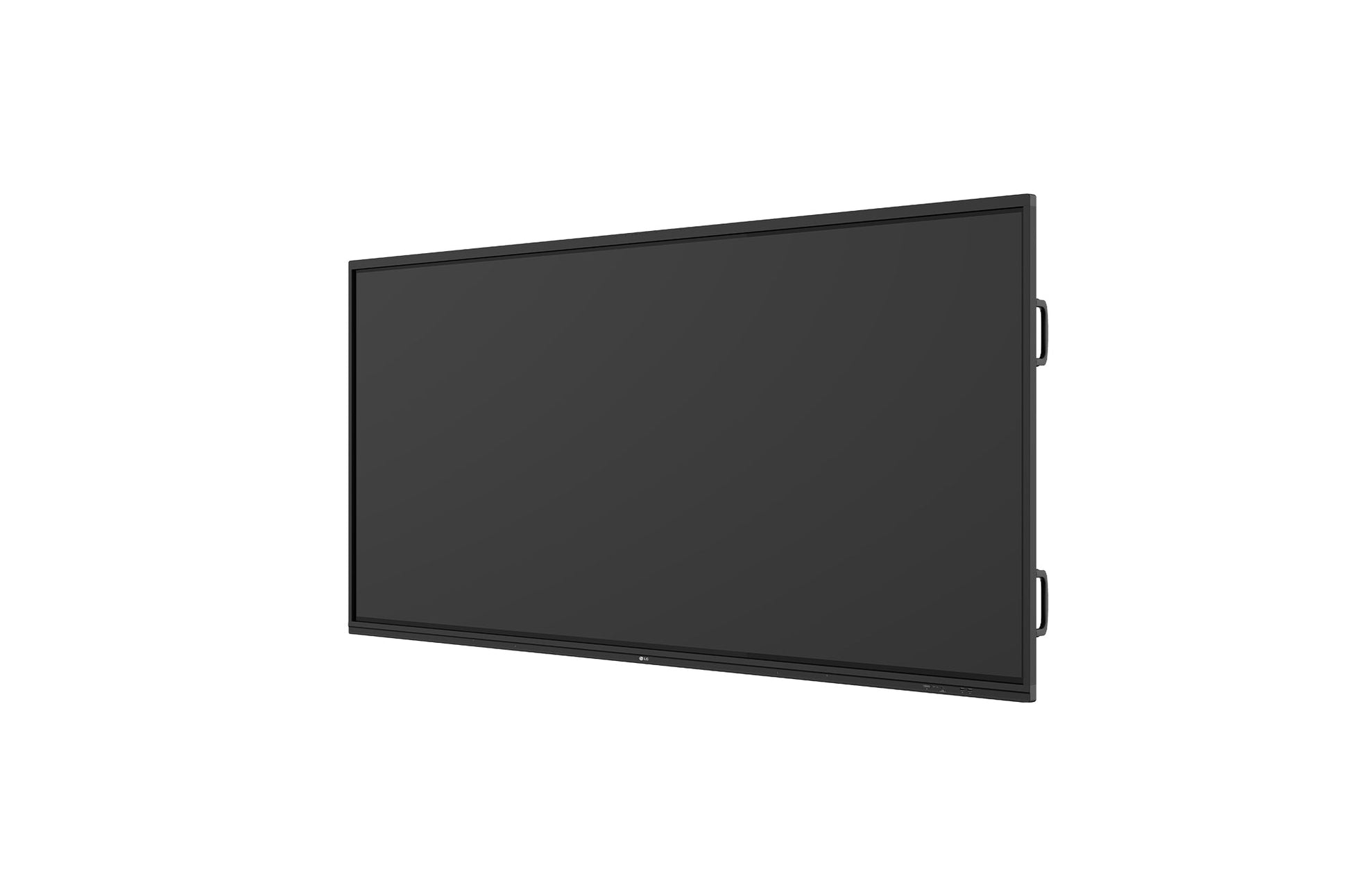

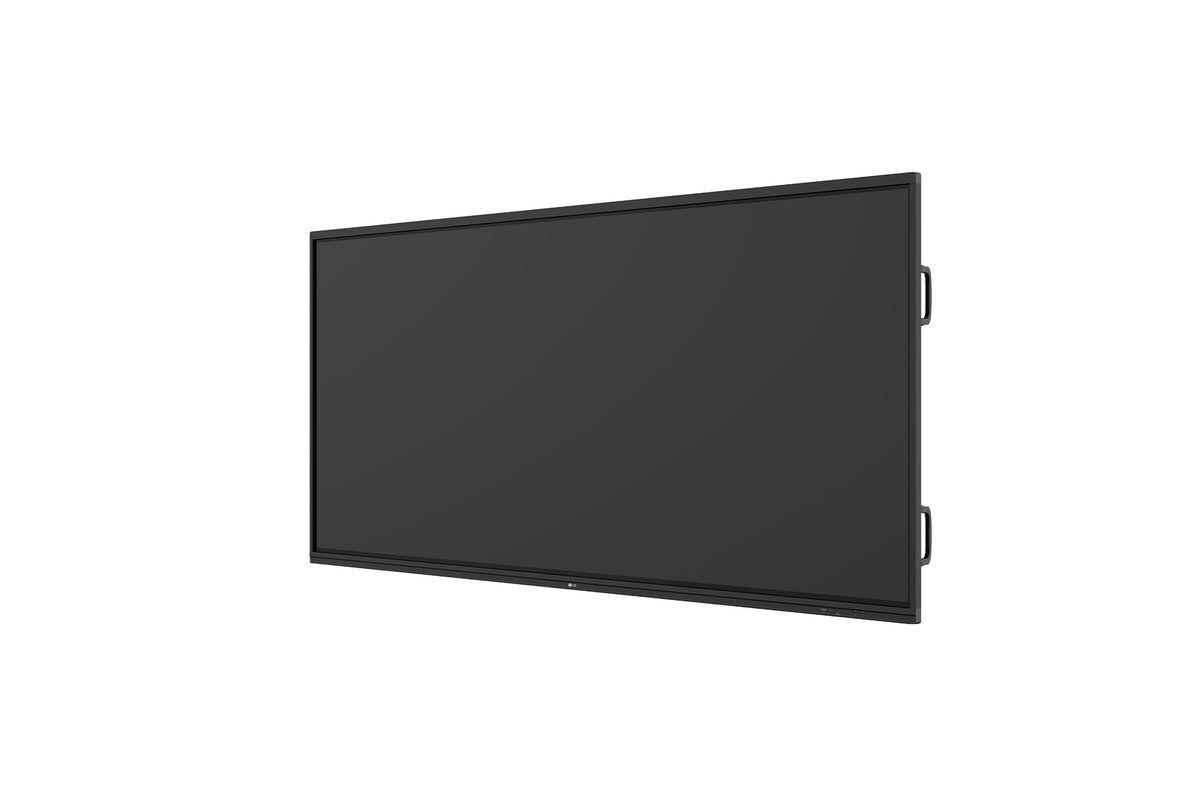

LG 105TR5WP 105-inch 5K Interactive CreateBoard

Model 105TR5WP

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Display: 105-inch, 21:9, 5120 × 2160 at 60 Hz
  • Typical brightness: 400 cd/m² with glass
  • Touch: Up to 50 points; host OS and application determine usable touch functions
  • Operating platform: Android 13, 8 GB RAM and 64 GB storage
  • Rated operation: 16/7
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
LG 105TR5WP 105-inch 5K Interactive CreateBoard
  • Authorized LG Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the LG 105TR5WP?

The LG 105TR5WP CreateBoard provides a 105-inch, 21:9 workspace for group writing, shared presentations and meeting layouts. Its 5120 × 2160 panel and up to 50 touch points create room for material and collaboration tools alongside one another. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

This is a landscape interactive display with Android and built-in microphones and speakers. A complete meeting solution still requires the appropriate camera, conferencing host, software and licences.

  • Touch: Up to 50 points; host OS and application determine usable touch functions.
  • Operating platform: Android 13, 8 GB RAM and 64 GB storage.

Use cases

Applications

  • Large meeting rooms with a shared writing workspace

  • Training and collaborative planning sessions

  • Wide-format presentation and annotation

Technical details

Technical Specifications

Display

Typical brightness
400 cd/m² with glass
Typical brightness
400 cd/m² with glass.

Touch

Touch
Up to 50 points; host OS and application determine usable touch functions

System & Software

Operating platform
Android 13, 8 GB RAM and 64 GB storage

Audio & Camera

Microphones
Eight built-in microphones; assess pickup for the actual room

Connectivity

Connectivity
HDMI, DisplayPort, USB-C, USB and Ethernet; confirm source format and cable capability

Physical & Mounting

Orientation
Landscape only
Net panel weight
84.6 kg
VESA mounting
1000 × 600 mm
Dimensions (W × H × D)
2510.7 × 1129.9 × 91.7 mm

Model & Identification

Model
105TR5WP
Manufacturer part number
105TR5WP

General

Display
105-inch, 21:9, 5120 × 2160 at 60 Hz
Rated operation
16/7
Display
105-inch, 21:9, 5120 × 2160 at 60 Hz.
Rated operation
16/7.

In the box

What's Included

  • One LG 105TR5WP CreateBoard

  • 3 m power cord

  • 5 m USB Type-A to Type-B cable

  • 1.8 m USB-C to USB-C cable

  • 3 m HDMI cable

  • Two writing pens

  • User manual

  • Quick start guide

  • Remote control

  • Two remote batteries

  • WiFi module

Installation

Installation & Mounting

Recommended Equipment and Mounting Checks

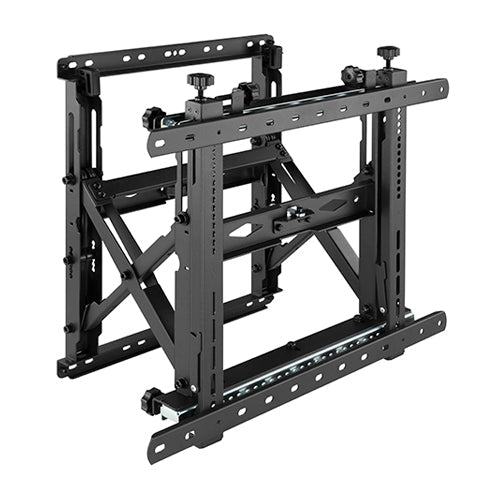

VSYS VSVW13-610T Video Wall Mount. VSYS wall support with a 45–110-inch size range, 130 kg panel rating and listed 1000 × 600 mm pattern. Confirm the solid-wall construction, access space and screw engagement for this installation.

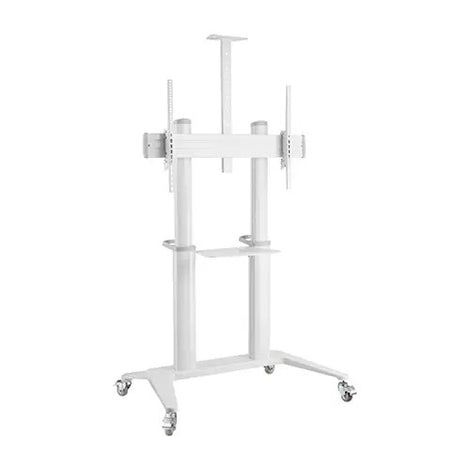

VSYS VTLX12-610TW TV Cart. VSYS floor cart rated for 70–120-inch panels and 140 kg, with the required 1000 × 600 mm pattern. Confirm total fitted load, access route and stability with the wide cabinet.

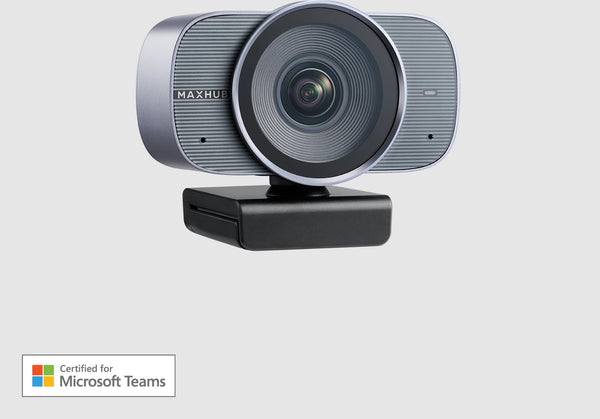

MAXHUB UC W31 4K USB Camera. Optional USB camera for a compatible conferencing host. Confirm host and application support and the room audio arrangement.

VSYS VSVW13-610T Video Wall MountVSYS VTLX12-610TW TV CartMAXHUB UC W31 4K USB Camera

Installation

Plan professional handling for the 84.6 kg, approximately 2.5 m wide display. Landscape only is the supported orientation. Specify VSYS wall or floor support against the 1000 × 600 mm fixing pattern, full installed load, rear access and structural conditions. The linked VSYS supports match the nominal size, panel weight and 1000 × 600 mm pattern; confirm orientation approval, screw depth and all fitted accessories before purchase. Use indoors at 0–40°C.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your 105TR5WP quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the LG 105TR5WP used for?

The LG 105TR5WP CreateBoard provides a 105-inch, 21:9 workspace for group writing, shared presentations and meeting layouts. Its 5120 × 2160 panel and up to 50 touch points create room for material and collaboration tools alongside one another.

Is the 105TR5WP a complete Teams or Zoom room?

It provides the interactive display, speakers and microphones. A meeting platform, compatible camera and conferencing host still need specification. The display alone does not include every component or licence required for a complete room.

Can 105TR5WP display 5K from any laptop or OPS PC?

The source, port, cable and selected output timing must all support the intended resolution. An optional OPS computer is separate, and its output may be limited to 4K. Confirm the complete signal path rather than assuming every input or computer delivers native 5K.

Which equipment should I consider with 105TR5WP?

VSYS VSVW13-610T Video Wall Mount. VSYS wall support with a 45–110-inch size range, 130 kg panel rating and listed 1000 × 600 mm pattern. Confirm the solid-wall construction, access space and screw engagement for this installation.

VSYS VTLX12-610TW TV Cart. VSYS floor cart rated for 70–120-inch panels and 140 kg, with the required 1000 × 600 mm pattern. Confirm total fitted load, access route and stability with the wide cabinet.

MAXHUB UC W31 4K USB Camera. Optional USB camera for a compatible conferencing host. Confirm host and application support and the room audio arrangement.

What is included with 105TR5WP?

One LG 105TR5WP CreateBoard; 3 m power cord; 5 m USB Type-A to Type-B cable; 1.8 m USB-C to USB-C cable; 3 m HDMI cable; Two writing pens; User manual; Quick start guide; Remote control; Two remote batteries; WiFi module. Confirm the exact regional pack on the quotation.

What should I check before installing 105TR5WP?

Plan professional handling for the 84.6 kg, approximately 2.5 m wide display. Landscape only is the supported orientation. Specify VSYS wall or floor support against the 1000 × 600 mm fixing pattern, full installed load, rear access and structural conditions. The linked VSYS supports match the nominal size, panel weight and 1000 × 600 mm pattern; confirm orientation approval, screw depth and all fitted accessories before purchase. Use indoors at 0–40°C.

Can Corporate AV help specify 105TR5WP for a UAE project?

Share your 105TR5WP quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request an LG 105TR5WP quotation in the UAE?

Contact Corporate AV about LG 105TR5WP. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
