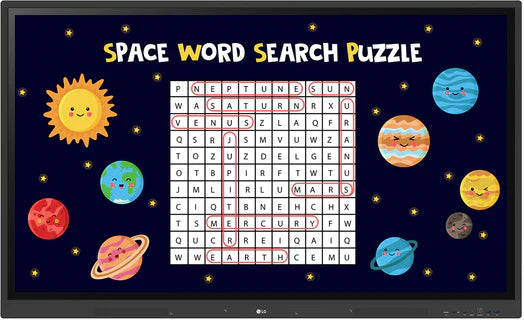

LG 55TR3DK-BM 55-inch 4K Interactive CreateBoard
Model 55TR3DK-BM
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 55-inch 4K interactive display, 16:9
- Native resolution: 3840 × 2160 (4K UHD)
- Typical brightness without glass: 390 cd/m²; 440 cd/m² maximum without glass
- Touch: Infrared; up to 40 points in Windows, 32 in Android; application limits vary
- Memory and storage: 8 GB RAM, 64 GB storage
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG 55TR3DK-BM?
The LG 55TR3DK-BM is a 55-inch 4K interactive CreateBoard for shared teaching, workshop annotation and collaborative presentations. LG's current regional specification combines 8 GB of RAM, 64 GB of storage and an Android 13 EDLA platform with built-in writing tools and screen sharing. It supports up to 40 touch points in a compatible Windows environment; touch and writing limits differ by operating system and application. Confirm the supplied firmware and regional build before ordering. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 55-inch commercial interactive display with 3840 × 2160 resolution, infrared touch and built-in speakers. It provides a whiteboarding platform; a Windows OPS computer, conferencing camera, microphones and any paid software services are separate unless expressly included in the quotation.
- Typical brightness without glass: 390 cd/m²; 440 cd/m² maximum without glass.
- Touch: Infrared; up to 40 points in Windows, 32 in Android; application limits vary.
Use cases
Applications
-
55-inch classroom and training-room whiteboarding
-
Corporate workshops and collaborative presentations
-
Shared teaching spaces with separately specified conferencing or Windows equipment
Technical details
Technical Specifications
Display
- Screen
- 55-inch 4K interactive display, 16:9
- Native resolution
- 3840 × 2160 (4K UHD)
- Typical brightness without glass
- 390 cd/m²; 440 cd/m² maximum without glass
- Screen
- 55-inch 4K interactive display, 16:9.
- Native resolution
- 3840 × 2160 (4K UHD).
Touch
- Touch
- Infrared; up to 40 points in Windows, 32 in Android; application limits vary
System & Software
- Memory and storage
- 8 GB RAM, 64 GB storage
- Platform
- Android 13 EDLA in current regional specification; confirm supplied build
- Memory and storage
- 8 GB RAM, 64 GB storage.
Audio & Camera
- Audio
- 15 W × 2 built-in speakers
Connectivity
- Video and USB-C
- HDMI, VGA, USB-C; confirm supported source functions and cable
- OPS computer
- Slot supported; computer is optional
Physical & Mounting
- Orientation
- Landscape
- VESA mounting
- 400 × 200 mm
- Display weight without stand
- 26.1 kg
- Dimensions (W × H × D)
- 1271 × 774 × 87 mm
Certifications & Warranty
- Operating rating
- 16/7
Model & Identification
- Model
- 55TR3DK-BM
- Manufacturer part number
- 55TR3DK-BM
In the box
What's Included
-
One LG 55TR3DK-BM interactive display
-
Power cord, 3 m
-
USB Type-A-to-Type-B cable, 5 m
-
HDMI cable, 3 m
-
Two writing pens
-
Remote control with two batteries
-
User manual
-
Quick start guide
-
Wi-Fi module; confirm supplied regional pack
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01E-46F Fixed TV Mount. Optional VSYS wall-mount candidate: the published screen range and load rating accommodate this 55-inch, 26.1 kg display; verify the 400 × 200 mm fixing arrangement and rear clearances with the exact bracket. Check touch-use stability, wall structure, screws and any attached equipment before installation.
VSYS VTLX16-69FW TV Cart. Optional VSYS floor-stand candidate: its 55–100-inch range, 120 kg load rating and listed 400×200 mm VESA pattern accommodate this display. Verify touch-use stability and the total installed load, lock the casters for use and plan the movement route.
Installation
Use the 400 × 200 mm VESA pattern, 26.1 kg display weight and attached accessory loads when selecting the support. Have the exact mounting geometry, touch-use stability, lifting plan and wall structure assessed. Install in landscape orientation, provide ventilation and confirm fasteners with the supplied manual. Check the actual Android build, EDLA configuration and organisation's account policy before deployment.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your 55TR3DK-BM quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
