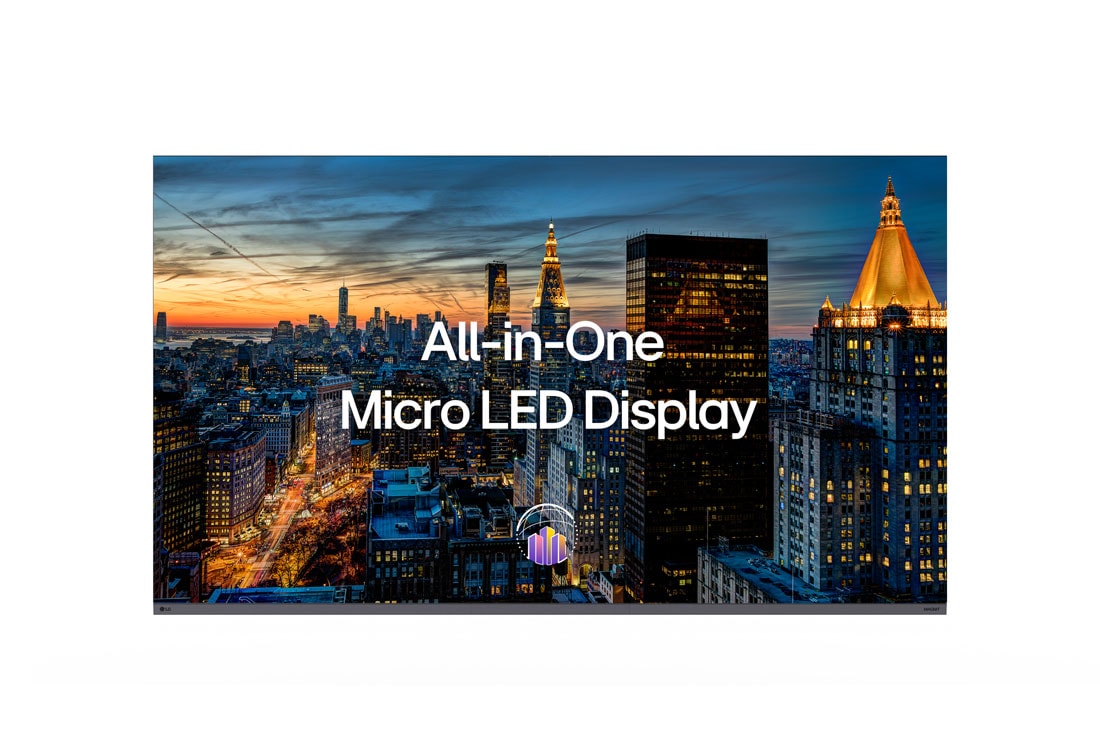

LG LAAA009-G3 163-inch MAGNIT Micro LED Display
Model LAAA009-G3
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.aeDatasheet: Download PDF
- Screen size: 163 inches
- Technology: MAGNIT Micro LED
- Native screen resolution: 3840 × 2160
- Pixel pitch: 0.94 mm
- Brightness after calibration: 500 nits maximum
- Controller: Embedded LG webOS
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG LAAA009-G3?
The LG LAAA009-G3 is a 163-inch MAGNIT Micro LED display supplied as an all-in-one screen platform with an embedded webOS controller and built-in speakers. Its 4K UHD native canvas and 0.94 mm pixel pitch suit presentation walls, corporate reception areas and indoor showcase spaces. The MAGNIT architecture combines micro-sized LED chips with LG surface and black-coating technologies for detailed indoor imagery. Corporate AV can help specify the screen, sources and installation for projects in Dubai, Abu Dhabi and across the UAE.
A complete all-in-one display platform, rather than a single LED cabinet. Additional mounting and project services are quotation items.
Technical details
Technical Specifications
Display
- Screen size
- 163 inches
- Native screen resolution
- 3840 × 2160
- Pixel pitch
- 0.94 mm
- Brightness after calibration
- 500 nits maximum
Audio & Camera
- Built-in audio
- 10 W + 10 W
Connectivity
- Video inputs
- 3 HDMI and 1 DisplayPort
Model & Identification
- Manufacturer part number
- LAAA009-G3
General
- Technology
- MAGNIT Micro LED
- Controller
- Embedded LG webOS
- Service access
- Front
- Application
- Indoor professional display
In the box
What's Included
All-in-one LED screen architecture with embedded controller and built-in speakers. Obtain the exact regional packing list for LAAA009-G3; mounting, stands, lifting, external sources, conferencing equipment and commissioning must be itemised on the quotation.
Installation
Installation & Mounting
Recommended Equipment
A complete all-in-one display platform, rather than a single LED cabinet. Additional mounting and project services are quotation items.
Installation
Survey wall structure, delivery route, lifting access, power capacity, ventilation and front service clearance. The installation requires professional assembly, alignment and commissioning. Select compatible mounting hardware for the exact screen; a generic flat-panel mount is not an assumed substitute.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional supply and service arrangements on the quotation.
More details
Additional Information
Applications
Use the 163-inch screen as a single presentation surface for slide decks, video and branded content. Check the smallest text and nearest seat during design; pixel pitch alone does not establish a universal minimum viewing distance.
Project Support
Share your LAAA009-G3 quantity, site location, content requirements and installation plan with Corporate AV for a project quotation.
