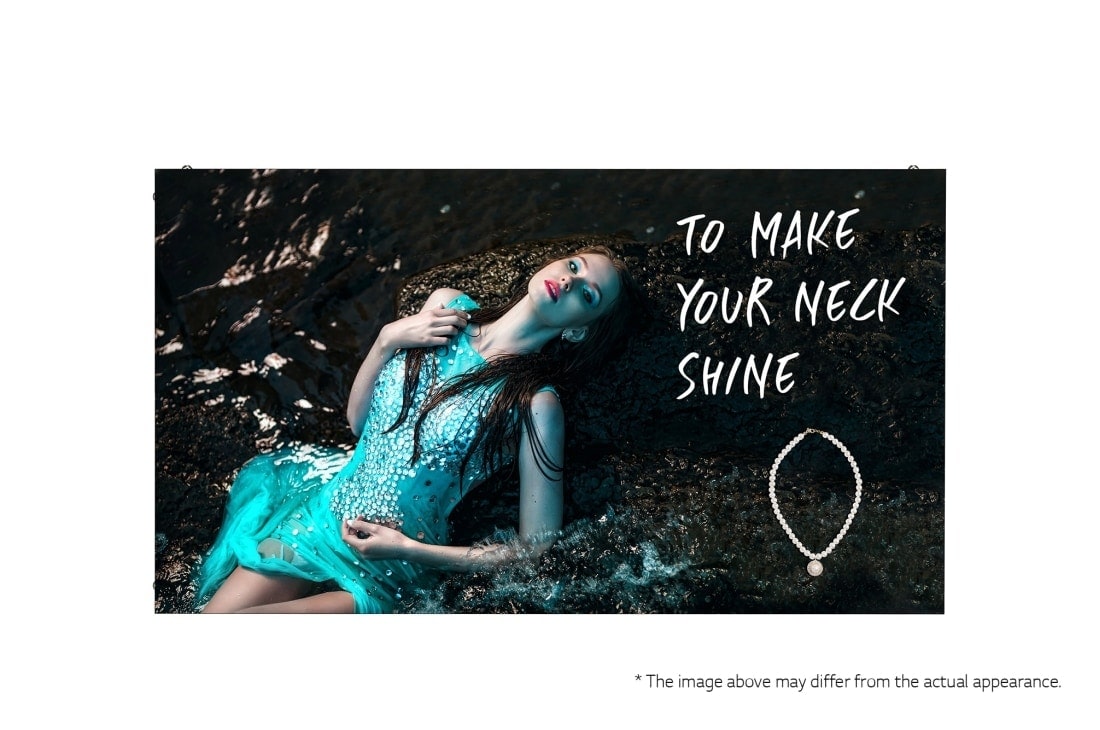

LG LSCB018-RK 1.875 mm Indoor LED Cabinet
Model LSCB018-RK
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.aeDatasheet: Download PDF
- Product scope: Standard RK modular indoor LED cabinet
- Pixel pitch: 1.875 mm
- Resolution per cabinet: 320 × 180
- Cabinet dimensions (W × H × D): 600 × 337.5 × 34 mm
- Weight per cabinet: 5.3 kg
- Maximum brightness after calibration: 800 nits
- Authorized LG Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the LG LSCB018-RK?
The LG LSCB018-RK is a slim indoor direct-view LED cabinet with 1.875 mm pixel pitch and front service access. Its 600 × 337.5 mm cabinet face forms a repeatable grid for building a larger presentation or signage wall. The standard RK cabinet provides 320 × 180 pixels, with up to 800 nits after calibration. Corporate AV can specify a suitable wall layout for corporate, retail and hospitality projects in Dubai, Abu Dhabi and across the UAE.
Standard RK cabinet only; custom wall dimensions and required system equipment are quoted to the approved design.
Technical details
Technical Specifications
Display
- Pixel pitch
- 1.875 mm
- Resolution per cabinet
- 320 × 180
- Maximum brightness after calibration
- 800 nits
- Wall size and resolution
- Determined by cabinet layout
Control & Management
- Control and processing
- External compatible LED control system; specified to project
Physical & Mounting
- Cabinet dimensions (W × H × D)
- 600 × 337.5 × 34 mm
- Weight per cabinet
- 5.3 kg
- Cabinet material
- Die-cast aluminium
Model & Identification
- Manufacturer part number
- LSCB018-RK
General
- Product scope
- Standard RK modular indoor LED cabinet
- Service access
- Front
In the box
What's Included
This listing identifies the standard LSCB018-RK cabinet. Confirm cabinet quantity, processor/controller, mounting frame, power and data distribution, spare modules and commissioning as separate bill-of-material items.
Installation
Installation & Mounting
Recommended Equipment
Standard RK cabinet only; custom wall dimensions and required system equipment are quoted to the approved design.
Installation
Check the wall opening and structural tolerances before finalising the cabinet array. Provide front access for module service and plan cable routing, electrical capacity, ventilation and calibration. Cabinet depth is not the total installed wall projection.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional supply and service arrangements on the quotation.
More details
Additional Information
Applications
Use the RK cabinet grid for flat indoor walls displaying presentations, branding or information. Match pitch to actual content and viewing positions. Corner and flexible LSCB cabinets are separate suffixes and require their own approved design.
Project Support
Share your LSCB018-RK quantity, site location, content requirements and installation plan with Corporate AV for a project quotation.
