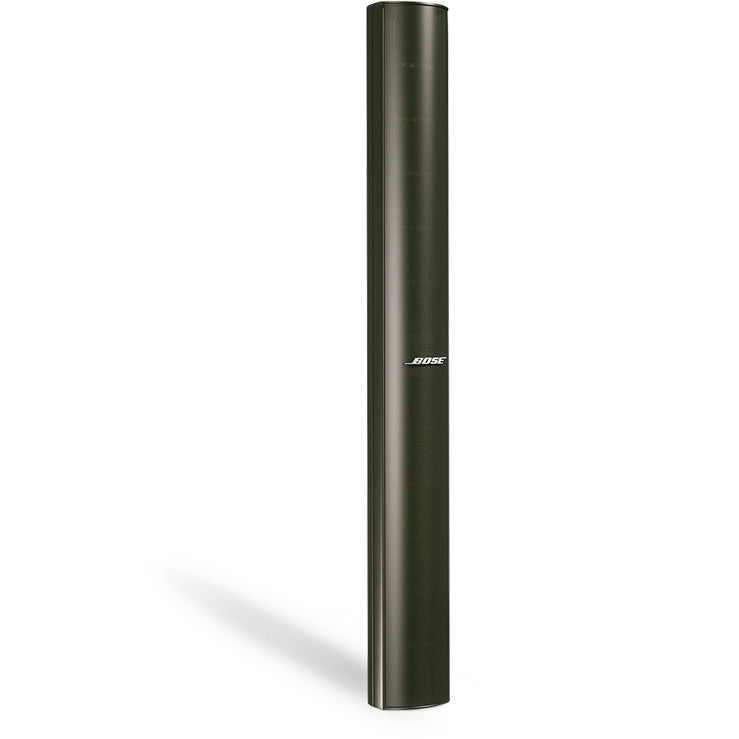

Bose MA12 Column Loudspeaker Black
Model 40189
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Drivers: 12 × 2.25-inch
- Nominal impedance: 8 Ω
- Continuous power handling: 300 W
- Coverage: 145° horizontal × 20° vertical, single module
- Frequency range (-10 dB): 100 Hz–16 kHz
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose MA12 Column Loudspeaker Black?
The black Bose MA12 is a passive column loudspeaker for installations where controlled vertical coverage and clear speech are priorities. It is intended for indoor spaces and reproduces the mid/high-frequency range; specify bass reinforcement when full-range music is required. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A single MA12 module uses twelve 2.25-inch drivers in a narrow column. The system needs external amplification and Bose loudspeaker EQ; stacking modules changes the vertical coverage and mounting requirements.
- Frequency range (-10 dB): 100 Hz–16 kHz.
Use cases
Applications
-
Speech reinforcement in presentation spaces
-
Worship and multipurpose rooms
-
Architecturally discreet installed sound
Technical details
Technical Specifications
System
- Drivers
- 12 × 2.25-inch
- Drivers
- 12 × 2.25-inch.
Frequency
- Frequency range (-10 dB)
- 100 Hz–16 kHz
Performance & Coverage
- Coverage
- 145° horizontal × 20° vertical, single module
- Coverage
- 145° horizontal × 20° vertical, single module.
Power
- Nominal impedance
- 8 Ω
- Continuous power handling
- 300 W
- Transformer option
- Separate CVT-MA12 required for suitable 70/100 V use
- Nominal impedance
- 8 Ω.
- Continuous power handling
- 300 W.
Physical
- Dimensions (H × W × D)
- 984 × 105 × 128 mm
- Net weight
- 8.5 kg
- Colour
- Black
General
- Model
- MA12 Column Loudspeaker Black
- Manufacturer part number
- 40189
- Environment
- Indoor only
In the box
What's Included
-
One black MA12 loudspeaker
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose PowerSpace P4300+ 4-Channel DSP Amplifier. PowerSpace P4300+ provides DSP and amplification for a correctly configured low-impedance system. Set the Bose loudspeaker EQ, output mode and protection for the actual speaker count and load.
Bose WB-MA12/MA12EX Pitch-Only Wall Bracket - Black. WB-MA12/MA12EX is a model-specific pitch bracket option. Confirm the finish, array arrangement and structural fixing requirements.
Installation
Provide the Bose MA12 loudspeaker EQ, suitable amplifier limiting and the correct model-specific bracket. Do not connect the 8-ohm speaker directly to a constant-voltage line without the specified optional transformer. Have stacked arrays and fixings designed for the complete load.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your MA12 Column Loudspeaker Black quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
