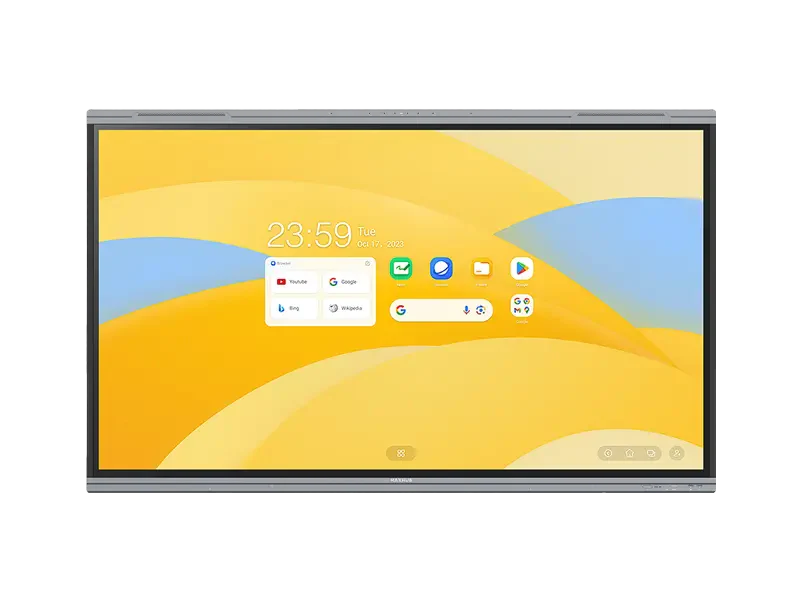

MAXHUB 86 inch Interactive Flat Panel U3 Series Interactive Display Model U8630
Model U8630
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- 86" 4K UHD interactive display built for large Google EDLA-certified classrooms
- 50-point IR touch with pressure sensitivity and palm rejection
- 8-microphone array with 0-10m pickup range
- TUV certified for flicker-free, low blue light eye care during extended use
- Authorized MAXHUB Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
MAXHUB U8630: 86" U3 Series Interactive Display for UAE Classrooms
The MAXHUB U8630 is an 86" education-focused interactive flat panel with Google EDLA certification. Corporate AV supplies and installs the U8630 across Dubai, Abu Dhabi, and the wider UAE, bringing precise 50-point touch, secure Google Classroom integration, and full classroom management to a single display.
What Is the MAXHUB U8630?
It's an Android-based interactive display purpose-built for education, combining a high color accuracy 4K touchscreen with pressure-sensitive writing and palm rejection for a natural pen-on-paper feel.
Why this product
Key Benefits
-
Google EDLA Certified
secure, direct access to Google for Education apps and accounts
-
50-Point IR Touch
pressure sensitivity and palm rejection for natural handwriting
-
High Color Accuracy
Delta E ≤1.5, 10-bit color depth, 72% NTSC gamut
-
TUV Certified Eye Care
Flicker Free and Low Blue Light certification for extended classroom use
-
8-Microphone Array
0-10m pickup range for full-classroom audio capture
-
Triple Display Support
Type-C and HDMI outputs connect up to three external displays
-
100W Type-C Charging
powers a connected laptop while sharing its screen
Use cases
Applications
-
Large classrooms and lecture halls
Google Classroom-integrated teaching
-
Training centers
interactive lessons with precise annotation
-
School computer labs
triple-display setups for group work
Technical details
Technical Specifications
Display
- Screen Size
- 86"
- Panel Type
- VA
- Resolution
- 3840 × 2160 (4K UHD)
- Brightness
- 500 nits (typ.)
- Response Time
- 6.5 ms
- Color Depth
- 10-bit (1.07 billion colors)
- Color Gamut
- 72% NTSC, Delta E ≤1.5
- Backlight
- DLED, 50,000 hour lifespan
Touch
- Touch
- IR, 50 touch points, pressure sensitivity, palm rejection
System & Software
- Operating System
- Android 13, Google EDLA certified
- Software
- MAXHUB Class, MAXHUB Class Pro, MAXHUB Pivot
Audio & Camera
- Microphones
- 8x array, 0-10m pickup range
- Speakers
- 2.2 channel, 2×8W + 2×18W
Connectivity
- Connectivity
- Type-C (100W charging), HDMI Out (triple display), USB, RS232, RJ45
Certifications & Warranty
- Certifications
- TUV Flicker Free, TUV Low Blue Light, Google EDLA
In the box
What's Included
U8630 display unit, wall mount points, stylus pens, power cord.
Ownership and support
Ownership & Support
Warranty
Covered under MaxHub's standard manufacturer warranty. Contact Corporate AV for full terms.
Sustainability
DLED backlight rated for 50,000+ hours reduces both energy use and replacement frequency across a school's device lifecycle.
Expandability
Type-C and HDMI outputs support up to three connected external displays, and 100W Type-C charging powers a connected laptop directly.
More details
Additional Information
Why Buy the MAXHUB U8630 from Corporate AV?
- Genuine MaxHub stock with manufacturer warranty support
- Expert guidance on Google for Education deployment
- Volume pricing for multi-classroom school rollouts
- Professional installation across Dubai, Abu Dhabi, and the wider UAE
- Local after-sales support: a real team you can call or WhatsApp, not a call centre
📞 Contact us: +971 56 498 8088, WhatsApp us or email info@corporateav.ae.
Distribution
Corporate AV supplies and installs the U8630 across Dubai, Abu Dhabi, and the wider UAE and GCC.
