MAXHUB 86 inch E3 Series Interactive Display Model E8630

Maxhub

86-inch 4K interactive display, Google EDLA certified
40-point Think&Ink touch with zero-bonding glass
100W USB-C power delivery, single-cable setup
Supplied and installed across Dubai, Abu Dhabi, and the wider UAE by Corporate AV

Details
More Information

📞 Call or WhatsApp Corporate AV for Best Price: +971 56 498 8088 | 💬 WhatsApp Us Now | Email Us

MAXHUB E8630: 86" E3 Series Interactive Display for UAE Classrooms

The MAXHUB E8630 is an 86" flagship-size E3 Series interactive flat panel with Google EDLA certification, running Android 14. Corporate AV supplies and installs the E8630 across Dubai, Abu Dhabi, and the wider UAE, bringing precise 40-point touch, secure Google Classroom integration, and full classroom management to a single display.

What Is the MAXHUB E8630?

It's an Android-based interactive display purpose-built for education, combining a 10-bit 4K touchscreen with MAXHUB Think&Ink writing technology and zero-bonding glass for a precise, lag-free writing experience.

Key Features

Google EDLA Certified: secure, native access to the entire Google Play Store ecosystem
40-Point Think&Ink Touch: ±1.5mm precision, zero-bonding glass for lag-free writing
AI-Powered Octa-Core Processor: 8GB RAM and 128GB storage for smooth multitasking
SkyWave Sound System: 2.2 channel, 2x12W+2x25W maximum output

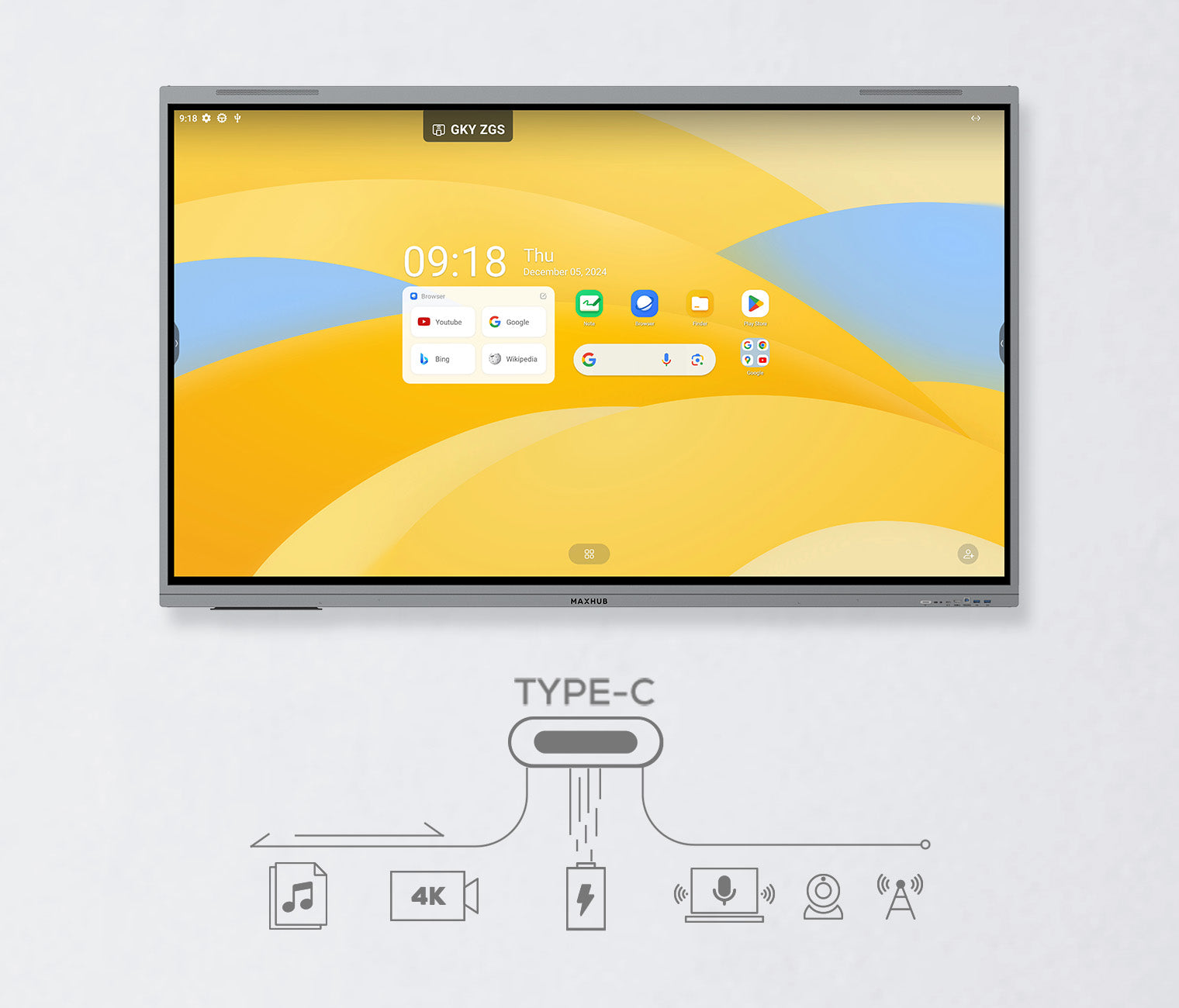

100W USB-C Power Delivery: video, audio, touch, and LAN over a single cable
Ambient Light Sensor: auto-adjusts brightness for optimal classroom visibility
Anti-Glare 9H Tempered Glass: durable, clear even in bright classrooms

Technical Specifications

Screen Size	86"
Panel Type	VA
Resolution	3840 × 2160 (4K UHD)
Brightness	400 nits (typ.)
Color	10-bit, Delta E ≤1
Touch	IR, 40 points, ±1.5mm accuracy
Operating System	Android 14, Google EDLA certified
Memory	8GB RAM, 128GB storage
Speakers	2.2 channel SkyWave, 2×12W + 2×25W maximum
Connectivity	USB-C (65W front PD), HDMI, RS232, RJ45, Wi-Fi 6, Bluetooth 5.2
Software	MAXHUB EDU OS V4, Class Pro, Connect, Pivot
Certifications	Google EDLA, Energy Star, IP5X

Ideal Applications

Large classrooms and lecture halls: Google Classroom-integrated teaching
Hybrid learning spaces: optional camera modules for remote classes
Training centers: interactive lessons with precise annotation

Why Buy the MAXHUB E8630 from Corporate AV?

Genuine MaxHub stock with manufacturer warranty support
Expert guidance on Google for Education deployment
Volume pricing for multi-classroom school rollouts
Professional installation across Dubai, Abu Dhabi, and the wider UAE
Local after-sales support: a real team you can call or WhatsApp, not a call centre

📞 Contact us: +971 56 498 8088, WhatsApp us or email info@corporateav.ae.

Package Contents

E8630 display unit, 2x passive touch pens, power cord, power adaptor.

Recommended Wall Mount (Interactive Push-Pull)

As a touch-interactive display, this board benefits from a mount built for IFP use. The VSYS VSVW13-610T Push-Pull Pop-Out Mount supports interactive panels from 45 to 110 inches and up to 130kg, with a rigid zero-shake frame designed for touch use and 190mm pop-out for rear service access. Available as an optional add-on.

Recommended Floor Stand (Interactive Cart)

For a mobile installation, the VSYS VTLX12-610TW Interactive Display Cart is purpose-built for large-format interactive panels, supporting 70-120 inch displays up to 140kg with a height-adjustable camera shelf. Available as an optional add-on.

Warranty

Covered under MaxHub's standard manufacturer warranty. Contact Corporate AV for full terms.

Sustainability

Google EDLA certification and long-term Android update support extend the useful classroom life of the display before replacement is needed.

Expandability

MAXHUB EDU OS V4 and Pivot device management support scaling from a single classroom to a fully managed school-wide deployment.

Distribution

Corporate AV supplies and installs the E8630 across Dubai, Abu Dhabi, and the wider UAE and GCC.

Best Price

WhatsApp us for the best price

Expert FAQs

Is the E8630 compatible with Google Classroom?

Yes. The E8630 is Google EDLA certified, giving secure, native access to Google Classroom, Drive, Meet, and the full Google Play Store ecosystem.

What does zero-bonding glass actually improve?

Zero-bonding eliminates the air gap between the glass and the display panel, which reduces parallax and gives a more precise, lag-free writing experience with the stylus.

How is the E8630 different from the U-series panels?

The E3 Series is positioned as a value-focused education panel with 40-point touch, compared to the U3 and U4 Series which offer 50-point touch and, in the case of U4, a built-in 50MP camera.

Does the E8630 automatically adjust brightness for the room?

Yes. A built-in ambient light sensor automatically adjusts screen brightness based on the classroom's lighting conditions.

What optional accessories work with the E8630?

The module slot supports an optional USB camera, video bar, OPS Windows PC module, sensor box, or mobile stand, all sold separately.
