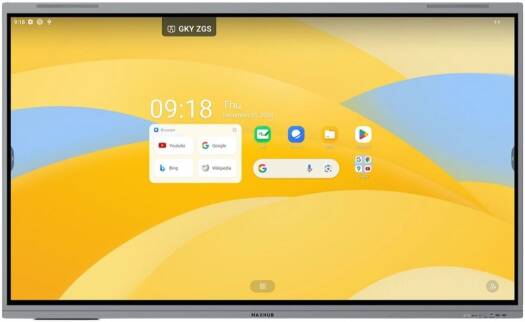

MAXHUB S6520 65-inch 4K Interactive Display
MPN S6520
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Display: 65-inch 3840 × 2160 UHD at 60 Hz
- Touch: 50-point infrared touch, OS-dependent; palm rejection
- Memory: 8 GB RAM and 128 GB storage
- Brightness: 400 cd/m² typical; 450 cd/m² maximum
- Authorized MAXHUB Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the MAXHUB S6520?
The MAXHUB S6520 is a 65-inch 4K interactive display for classrooms and smaller training groups. Its built-in Android environment, multi-user writing, camera and microphone array bring presentation and collaboration tools together in one panel, while a Windows OPS computer remains an optional choice. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 65-inch classroom-focused interactive flat panel combining a 4K display, infrared touch and built-in collaboration hardware.
- Platform: Android 14 with Google EDLA certification in the V1.3 reference; confirm supplied firmware.
Use cases
Applications
-
Interactive classroom teaching
-
Staff training and practical workshops
-
Shared presentations with remote participants
Technical details
Technical Specifications
Display
- Brightness
- 400 cd/m² typical; 450 cd/m² maximum
- Brightness
- 400 cd/m² typical; 450 cd/m² maximum.
Touch
- Touch
- 50-point infrared touch, OS-dependent; palm rejection
- Touch
- 50-point infrared touch, OS-dependent; palm rejection.
System & Software
- Platform
- Android 14 with Google EDLA certification in the V1.3 reference; confirm supplied firmware
- Memory
- 8 GB RAM and 128 GB storage
- Software
- MAXHUB EDU OS V4, Class Pro whiteboarding, Connect sharing and Pivot management
- Memory
- 8 GB RAM and 128 GB storage.
Audio & Camera
- Camera
- Built-in 50 MP camera with automatic framing
- Microphones
- Eight-microphone array
- Speakers
- V1.3 reference lists two 20 W speakers; earlier revisions list two 16 W speakers
Connectivity
- USB-C charging
- Up to 65 W on the specified port; reference reduces this to 15 W with OPS inserted
Physical & Mounting
- Duty and orientation
- 16/7; landscape
- Dimensions (W × H × D)
- 1488.4 × 915.3 × 99.2 mm
- Net display weight
- 32.25 kg
- VESA mounting
- 600 × 400 mm
Model & Identification
- Model
- S6520
- Manufacturer part number
- S6520
General
- Display
- 65-inch 3840 × 2160 UHD at 60 Hz
- Display
- 65-inch 3840 × 2160 UHD at 60 Hz.
In the box
What's Included
-
65-inch MAXHUB S6520 interactive display
-
3 m power cord
-
Two SW13F passive touch pens
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01A-46F Fixed TV Mount. VSYS wall-mount candidate covering this panel's screen size, net weight and VESA pattern. Confirm screw engagement, rear access, supplied revision and wall anchors.
VSYS VTLS12-46TW TV Cart. VSYS floor-stand option covering the reference panel size, load and listed VESA pattern. Include accessory weight and confirm stability during touch use; the trolley is separate.
Installation
Check the supplied hardware revision, 600 × 400 mm VESA pattern and 32.25 kg panel weight, including all added accessories. Plan touch reach, wall anchors, rear clearance, cable routing and trolley stability. Confirm any wall bracket, remote, extra cables and OPS PC on the quotation; the verified accessory list here is limited to the power cord and two pens.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your S6520 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
