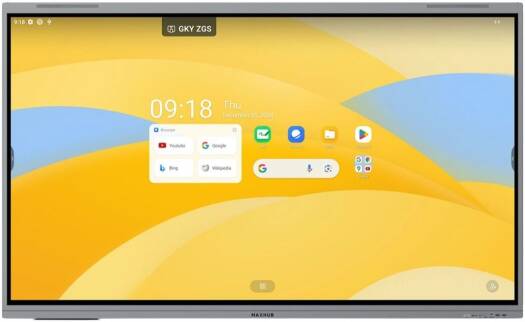

MAXHUB S7520 Interactive Display, 75" TFT LCD Module with DLED Backlight, 4K UHD Resolution, 6.5ms Response Time, 50 Touch Points, IR Touch Type, 2x 20 W Speakers | S7520

Maxhub

75" 4K UHD interactive display built for classrooms, boardrooms, and training centers
Android 14 EDLA-certified OS with 50-point IR touch and 6.5ms response time
Built-in 50MP auto-framing camera and 8-mic array for hybrid meetings
MAXHUB EDU OS, Class Pro whiteboard, Connect screen sharing, and Pivot device management included
Supplied and installed across Dubai, Abu Dhabi, and the wider UAE by Corporate AV

Details
More Information

📞 Call or WhatsApp Corporate AV for Best Price: +971 56 498 8088 | 💬 WhatsApp Us Now | Email Us

MAXHUB S7520: 75" 4K Interactive Display for UAE Classrooms & Meeting Rooms

The MAXHUB S7520 is a 75" 4K UHD interactive flat panel built for larger classrooms, training rooms, and corporate meeting spaces. Corporate AV supplies and installs the S7520 across Dubai, Abu Dhabi, and the wider UAE, bringing Android 14 EDLA-certified performance, built-in video conferencing hardware, and MAXHUB's full collaboration software suite to a single display.

What Is the MAXHUB S7520?

It's a 75" all-in-one interactive display combining a 4K touchscreen, onboard camera and microphone array, and a smart Android platform, built to run lessons, presentations, and hybrid meetings without extra hardware.

Key Features

4K UHD Resolution (3840 × 2160): crisp detail for text, video, and shared content
50-Point IR Touch, 6.5ms Response: smooth, natural writing and multi-user interaction
Built-In 50MP Camera: 99° DFOV with auto framing and speaker tracking for video calls
8-Microphone Array: 0-12m pickup range for full-room audio capture
Android 14, Google EDLA Certified: 8GB RAM, 128GB storage, full Google Apps support
MAXHUB Software Suite: EDU OS V4, Class Pro whiteboard, Connect screen sharing, Pivot device management
Flicker-Free DC Dimming: reduces eye strain during extended use

Technical Specifications

Screen Size	75"
Resolution	3840 × 2160 (4K UHD)
Brightness	400 / 450 nits (typ./max.)
Contrast Ratio	5000:1 (typ.), 50,000:1 (dynamic)
Touch Type	IR, 50 touch points, ±0.5mm accuracy
Response Time (Display / Touch)	6.5 ms / <2.5 ms
Processor	CPU A72×4 + A53×4, GPU G52 MC3, NPU 6 TOPS
Operating System	Android 14, Google EDLA Certified
Storage	RAM 8GB, ROM 128GB
Camera	50MP, 99° DFOV, auto framing & speaker tracking
Microphones	8x array, 0-12m pickup distance
Speakers	2 × 20W
Connectivity	HDMI In x3/Out x1, USB 2.0/3.0/Type-C, DP In, VGA In, RJ45, RS232, OPS slot, TF card slot, Wi-Fi
Wall Mount	VESA 800 × 400mm
Net / Gross Weight	44.25 kg / 54.15 kg
Software	MAXHUB EDU OS V4, Class Pro, Connect, Pivot

Ideal Applications

Classrooms and training rooms: interactive lessons with built-in whiteboard tools
Corporate meeting rooms: hybrid video conferencing without external cameras or speakerphones
Large huddle spaces and briefing rooms: quick screen sharing and collaboration

Why Buy the MAXHUB S7520 from Corporate AV?

Genuine MaxHub stock with manufacturer warranty support
Expert guidance on room sizing and software setup
Volume pricing for multi-room school and office rollouts
Professional installation across Dubai, Abu Dhabi, and the wider UAE
Local after-sales support: a real team you can call or WhatsApp, not a call centre

📞 Contact us: +971 56 498 8088, WhatsApp us or email info@corporateav.ae.

Package Contents

S7520 display unit, 2x passive touch pens, power cord, and power adaptor.

Recommended Wall Mount (Fixed)

This display uses an 800 x 400mm VESA pattern and weighs 44.25kg. The VSYS VS01A-46F Fixed Wall Mount supports displays up to 86 inches and 80kg with matching VESA range. Available as an optional add-on.

Recommended Wall Mount (Swivel / Full-Motion)

For adjustable viewing angles, the VSYS VS02D-696 Full-Motion Wall Mount supports displays up to 120 inches and 120kg, with reinforced dual arms for large panels. Available as an optional add-on.

Recommended Floor Stand

For a mobile installation, the VSYS VTLX17-610TW Telescopic Cart supports 60-100 inch displays up to 100kg with matching VESA range. Available as an optional add-on.

Warranty

Covered under MaxHub's standard manufacturer warranty. Contact Corporate AV for full terms.

Sustainability

Flicker-free DC dimming backlight with a rated lifetime of 50,000+ hours reduces both energy use and replacement frequency over the display's service life.

Expandability

Internal OPS slot for compute module upgrades, TF card slot, and multiple HDMI/USB/DP/VGA inputs support scaling into larger room setups.

Distribution

Corporate AV supplies and installs the S7520 across Dubai, Abu Dhabi, and the wider UAE and GCC.

Best Price

WhatsApp us for the best price

Expert FAQs

Does the S7520 have a built-in camera and microphone for video calls?

Yes. It includes a 50MP camera with 99° field of view, auto framing and speaker tracking, plus an 8-microphone array with a 0-12m pickup range, so no external conferencing hardware is required.

What operating system does the S7520 run and can it access Google apps?

It runs Android 14 and is Google EDLA certified, with full access to Google Play, Drive, Meet, Maps, and YouTube alongside 8GB RAM and 128GB of onboard storage.

Can I add an external compute module like a Windows OPS PC to the S7520?

Yes. The S7520 has an internal OPS slot, so a Windows or other OPS compute module can be installed directly behind the panel without external cabling.

How many touch points does the S7520 support and how accurate is it?

The S7520 uses IR touch technology supporting 50 simultaneous touch points, with an accuracy of ±0.5mm across 90% of the screen area and palm rejection built in.

What wall mount pattern does the S7520 use for installation?

The S7520 uses a VESA 800 x 400mm mounting pattern. Corporate AV can supply and install a compatible wall mount as part of the installation.
