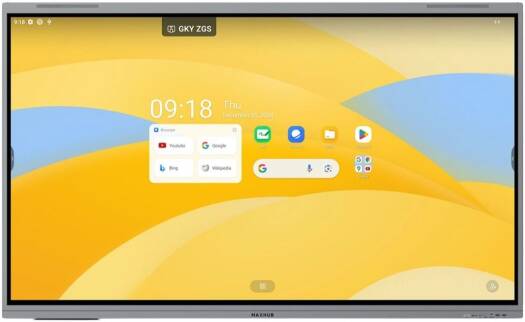

MAXHUB S8620 86-inch 4K Interactive Display
MPN S8620
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Display: 86-inch TFT LCD with DLED backlight
- Resolution: 3840 × 2160 at 60 Hz
- Typical brightness: 400 nits
- Orientation and operation: Landscape; 16/7
- Touch: Infrared; up to 50 points
- Authorized MAXHUB Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the MAXHUB S8620?
MAXHUB S8620 is an 86-inch 4K interactive flat panel for teaching and group collaboration. It combines Android 14 computing, infrared touch, a built-in camera and microphone array in one large classroom display. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
An interactive display with integrated Android applications and optional OPS expansion. It supports on-screen writing, presentations and video workflows when configured with suitable software and connections.
- Orientation and operation: Landscape; 16/7.
- Touch: Infrared; up to 50 points.
Use cases
Applications
-
Interactive classrooms
-
Training-room whiteboarding
-
Collaborative presentation spaces
Technical details
Technical Specifications
Display
- Resolution
- 3840 × 2160 at 60 Hz
- Typical brightness
- 400 nits
- Resolution
- 3840 × 2160 at 60 Hz.
- Typical brightness
- 400 nits.
Touch
- Touch
- Infrared; up to 50 points
System & Software
- Android system
- Android 14; 8 GB RAM and 128 GB storage
Audio & Camera
- Camera
- One 50 MP camera with auto framing
- Microphones
- Eight-microphone array
- Speakers
- Two 16 W speakers in the cited manufacturer sheet
Connectivity
- Video inputs
- Three HDMI 2.0 inputs; DisplayPort input
- Power connection
- 100–240 VAC; regional supply arrangement to be checked
Physical & Mounting
- Orientation and operation
- Landscape; 16/7
Model & Identification
- Model
- S8620
- Manufacturer part number
- S8620
General
- Display
- 86-inch TFT LCD with DLED backlight
- Display
- 86-inch TFT LCD with DLED backlight.
In the box
What's Included
-
One MAXHUB S8620 interactive display
-
Two passive touch pens
-
One 3 m power cord listed in the manufacturer sheet
Installation
Installation & Mounting
Recommended Compatible Equipment
Plan the required content or teaching software, source connections and any approved OPS computer. Corporate AV can specify a VSYS wall mount or floor stand once the screen weight and exact VESA layout are verified.
Installation
Confirm the firmware, software licences, regional package and exact host connections. The USB-C charging specification varies by port and OPS installation state. Ask Corporate AV to select a VSYS wall mount or VSYS floor stand after checking the actual screen weight, VESA pattern and all attached accessories.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your S8620 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
