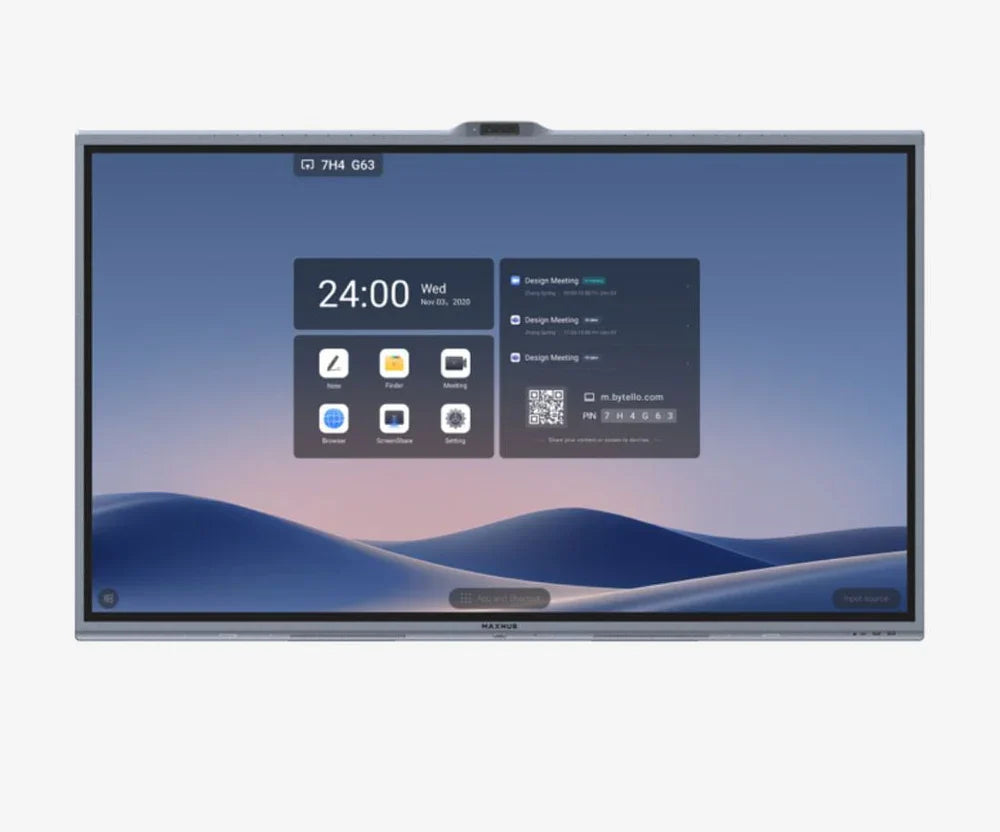

MAXHUB 86 inch XBoard V7 Series Interactive Display Model T8650

Maxhub

86" 4K UHD interactive display certified as a Microsoft Teams Rooms device
Trident Lens 3x 50MP camera system with optical/digital zoom and speaker tracking
16-microphone array with 180 degree pickup and AI noise cancellation
Native SIP/H.323 calling for cross-cloud meeting compatibility
Supplied and installed across Dubai, Abu Dhabi, and the wider UAE by Corporate AV

Details
More Information

📞 Call or WhatsApp Corporate AV for Best Price: +971 56 498 8088 | 💬 WhatsApp Us Now | Email Us

MAXHUB XBoard T8650: 86" Microsoft Teams Rooms Certified Interactive Display for UAE

The MAXHUB XBoard T8650 is an 86" all-in-one interactive display built on the same XBoard V7 platform as the V8650, certified specifically as a Microsoft Teams Rooms device. Corporate AV supplies and installs the T8650 across Dubai, Abu Dhabi, and the wider UAE for organizations standardized on Microsoft Teams.

What Is the MAXHUB XBoard T8650?

It's a Windows-based all-in-one interactive display combining a 4K touchscreen, triple 50MP camera system, and 16-mic array, purpose-built and certified for Microsoft Teams Rooms with native SIP/H.323 calling support.

Key Features

Microsoft Teams Rooms Certified: purpose-built integration with Teams, including SIP/H.323 calling
4K UHD Resolution with 90% NTSC color gamut and non-glare 9H tempered glass
Trident Lens Camera System: 3x 50MP cameras (panorama + 2x telephoto) with 2x optical/5x digital zoom, auto framing, and speaker tracking
16-Microphone Array: 180° pickup angle, 0-15m range, with AI noise cancellation and audio fence
50-Point IR Touch: supports Windows, Android, Linux, macOS, and Chrome OS touch return
Cross-Cloud Meeting Support: daisy-chain compatible with UC BM45 expansion speakerphones for larger rooms
Energy Star Certified: sustainable design without compromising performance

Technical Specifications

Screen Size	86"
Panel Type	IPS
Resolution	3840 × 2160 (4K UHD)
Brightness	350 nits (typ.)
Contrast Ratio	1200:1 (typ.)
Touch	IR, 50 touch points, ±0.5mm accuracy
Camera	3x 50MP (panorama + 2x telephoto), 2x optical/5x digital zoom, 99° DFOV
Microphones	16-mic array, 180° pickup, 0-15m range
Speakers	2.1 channel surround sound
Wall Mount	VESA 400 x 200mm
Certification	Microsoft Teams Rooms Certified Device
Connectivity	HDMI In, USB 2.0/3.0/Type-C, RS232, RJ45, Wi-Fi, Bluetooth, SIP/H.323
Certifications	IEC 62368-1, EMC Class B, Energy Star
Warranty	3-Year Advanced Replacement Warranty

Note: A separate compatible PC module is required to power MAXHUB OS and is sold separately. Given the size and weight of an 86" display, professional wall mounting is strongly recommended.

Ideal Applications

Microsoft Teams standardized organizations: certified plug-and-play Teams Rooms deployment
Large boardrooms and executive suites: 12+ person spaces with full video conferencing
Multi-room deployments: daisy-chain expansion for larger meeting spaces

Why Buy the MAXHUB XBoard T8650 from Corporate AV?

Genuine MaxHub stock with the full 3-year advanced replacement warranty
Expert guidance on Teams Rooms deployment and IT integration
Volume pricing for multi-room office rollouts
Professional installation across Dubai, Abu Dhabi, and the wider UAE
Local after-sales support: a real team you can call or WhatsApp, not a call centre

📞 Contact us: +971 56 498 8088, WhatsApp us or email info@corporateav.ae.

Package Contents

T8650 display unit, touch pens, power cord. Requires a separate compatible PC module, sold separately.

Recommended Wall Mount (Fixed)

This display uses a 400 x 200mm VESA pattern. The VSYS VS01A-46F Fixed Wall Mount supports displays up to 86 inches and 80kg with matching VESA range. Available as an optional add-on.

Recommended Wall Mount (Swivel / Full-Motion)

For adjustable viewing angles, the VSYS VS02D-696 Full-Motion Wall Mount supports displays up to 120 inches and 120kg with reinforced dual arms. Available as an optional add-on.

Recommended Floor Stand

For a mobile installation, the VSYS VTLX18H-610TW Motorized Height-Adjustable Cart supports 55-100 inch displays up to 120kg. Available as an optional add-on.

Warranty

3-Year Advanced Replacement Warranty from MaxHub.

Sustainability

Energy Star certified for efficient power use across daily meeting room operation.

Expandability

Daisy-chain compatibility with UC BM45 speakerphones and PC module upgrades let the room scale without replacing the display.

Distribution

Corporate AV supplies and installs the T8650 across Dubai, Abu Dhabi, and the wider UAE and GCC.

Best Price

WhatsApp us for the best price

Expert FAQs

What does Microsoft Teams Rooms certification actually mean for the T8650?

It means the T8650 has been officially tested and approved by Microsoft to run Teams Rooms software, with guaranteed compatibility, native SIP/H.323 calling, and full integration with Microsoft's meeting ecosystem.

Can the T8650 still join Zoom or other non-Microsoft platforms?

Yes. While the T8650 is certified specifically for Teams Rooms, its SIP/H.323 support and cross-cloud meeting capability allow it to connect with other major conferencing platforms as well.

Can I expand audio coverage for a larger meeting room?

Yes. The T8650 can be daisy-chained with up to three UC BM45 expansion speakerphones to extend microphone and speaker coverage across larger rooms.

How does the Trident Lens camera system work on the T8650?

It combines three 50MP cameras, a wide panorama lens and two telephoto lenses, giving 2x optical and 5x digital zoom with auto framing and speaker tracking for clear video during meetings.

What is the difference between the T8650 and the standard V8650?

The T8650 uses the same 86-inch XBoard V7 hardware as the V8650, but carries official Microsoft Teams Rooms certification with native SIP/H.323 calling, making it the right choice for organizations standardized on Microsoft Teams.
