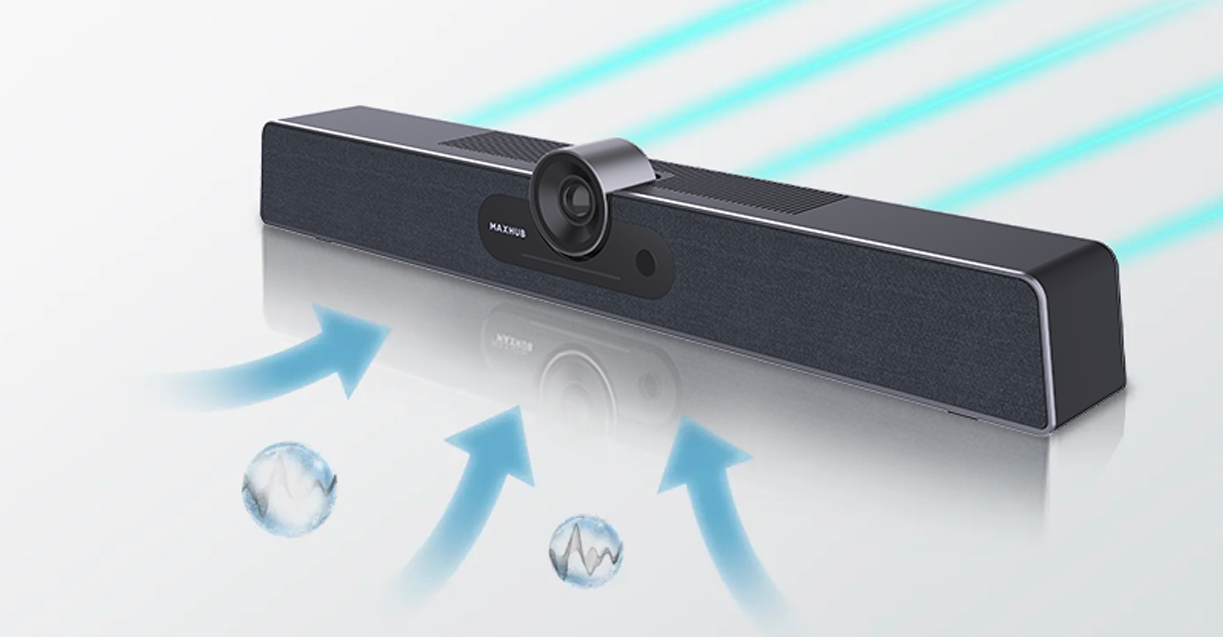

MAXHUB UC S15 4K Video Collaboration Bar
Model UC S15
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Camera: 12 MP sensor, up to 4K at 30 fps in supported H.264/MJPEG modes
- View and zoom: 120° diagonal field of view; 5× digital zoom
- Framing: Automatic framing and speaker tracking
- Microphones: Six-microphone array
- Audio: 1.1-channel, 8 W + 3 W speaker output
- Authorized MAXHUB Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the MAXHUB UC S15?
The MAXHUB UC S15 combines a 4K camera, microphones and speaker system for huddle rooms and smaller meeting spaces. Wired USB-C sharing and supported wireless BYOM options let participants use a compatible laptop with the room's display and collaboration hardware. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A compact video-collaboration bar for supported laptop-based meetings, with separate display and host requirements.
Why this product
Key Benefits
-
Camera
12 MP sensor, up to 4K at 30 fps in supported H.264/MJPEG modes.
-
Framing
Automatic framing and speaker tracking.
-
Microphones
Six-microphone array.
Use cases
Applications
-
Huddle-room video collaboration
-
Small-room laptop-led meetings
-
Wired or supported wireless BYOM presentations
Technical details
Technical Specifications
Camera
- Camera
- 12 MP sensor, up to 4K at 30 fps in supported H.264/MJPEG modes
- View and zoom
- 120° diagonal field of view; 5× digital zoom
- Framing
- Automatic framing and speaker tracking
- View and zoom
- 120° diagonal field of view; 5× digital zoom.
Audio
- Microphones
- Six-microphone array
- Audio
- 1.1-channel, 8 W + 3 W speaker output
- Audio
- 1.1-channel, 8 W + 3 W speaker output.
Connectivity
- Connections
- USB-C device connection, USB-A host ports, HDMI output and RJ45
- Wireless BYOM
- Supported MAXHUB Share or compatible optional dongle; verify regional availability and firmware
Physical & Power
- Power
- 12 V DC or supported PoE arrangement
Model & Identification
- Model
- UC S15
- Manufacturer part number
- UC S15
In the box
What's Included
-
MAXHUB UC S15 video bar
-
1.8 m USB-C 3.0 cable with DP support
-
1.5 m HDMI cable
-
Manual lens cover
-
Wall-mount kit
-
Power adapter
-
Remote control
-
Quick start guide
Installation
Installation & Mounting
Recommended Compatible Equipment
MAXHUB ND55CMA 55-inch 4K Commercial Display. MAXHUB ND55CMA is an HDMI-connected commercial display option for the S15 room setup. Confirm video input selection, laptop connection and firmware; the display and its support are separate.
Installation
Check laptop USB-C video support, required BYOM method, display input, firmware, power and network policy. Confirm any optional wireless dongle or display-mount kit separately. The RJ45 connection supports management and PoE functions; follow the supplied port instructions.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your UC S15 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
