MAXHUB

MAXHUB UW105NA 105" 21:9 5K Non-Touch Commercial Display

Model UW105NA

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Screen: 105-inch class VA; 21:9
  • Native resolution: 5120 × 2160 at 60 Hz
  • Brightness: 400 cd/m² typical
  • Operating rating: 16/7; landscape
  • Internal platform: Android 13; 8 GB RAM / 64 GB storage
Video Conferencing & Hybrid Workspaces Part of our complete AV solutions Explore Solutions
MAXHUB UW105NA 105" 21:9 5K Non-Touch Commercial Display
  • Authorized MAXHUB Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the MAXHUB UW105NA?

The MAXHUB UW105NA is a 105-inch, 21:9 commercial display for wide meeting layouts and panoramic business content. Its 5120 × 2160 image provides a broad canvas for a separately specified room system or content source. Plan seating, readable text and the room's sightlines around the full screen width before selecting the installation position. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

A non-touch 5K commercial display with Android 13, an embedded player, built-in audio and external source inputs. It is a display rather than a complete Microsoft Teams Rooms system: compatible compute, controller, camera, microphones and platform licences are separately specified.

  • Internal platform: Android 13; 8 GB RAM / 64 GB storage.

Use cases

Applications

  • Wide meeting-room content and hybrid layouts using a separately specified room system

  • Panoramic business presentations and collaboration content

  • Landscape signage within a verified 16/7 operating schedule

Technical details

Technical Specifications

Display

Screen
105-inch class VA; 21:9
Native resolution
5120 × 2160 at 60 Hz
Brightness
400 cd/m² typical
Screen
105-inch class VA; 21:9.
Native resolution
5120 × 2160 at 60 Hz.
Brightness
400 cd/m² typical.

System & Software

Internal platform
Android 13; 8 GB RAM / 64 GB storage

Audio & Camera

Audio
2 × 16 W speakers plus 15 W output

Connectivity

5K inputs
HDMI 2.1 and DisplayPort support up to 5120 × 2160 at 60 Hz in the reference
Other HDMI inputs
Three HDMI 2.0 inputs, up to 3840 × 2160 at 60 Hz
USB-C
Up to 100 W PD; verify the host, cable and required signal mode

Physical & Mounting

VESA mounting
1000 × 400 mm
Net weight
89.4 kg
Dimensions (W × H × D)
2511 × 1124 × 97 mm

Certifications & Warranty

Operating rating
16/7; landscape
Operating rating
16/7; landscape.

Model & Identification

Model
UW105NA
Manufacturer part number
UW105NA

In the box

What's Included

  • One MAXHUB UW105NA display

  • Power cord

  • One Wi-Fi module

  • One 2 m HDMI cable

  • One remote control

  • One manufacturer wall bracket

  • One 1.8 m USB-C cable

Installation

Installation & Mounting

Recommended Equipment and Compatibility Checks

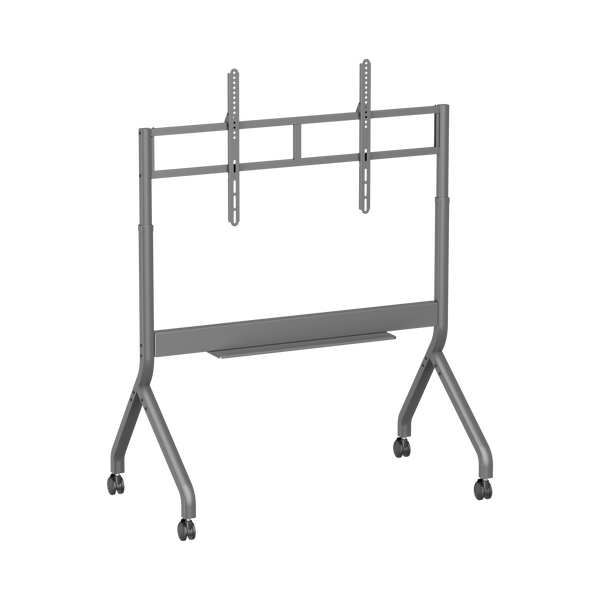

VSYS VTLX16M-612FW TV Cart. VSYS VTLX16M-612FW motorised floor-cart candidate for assessment, not a confirmed direct-fit bundle. Its 60–110-inch screen range and 120 kg capacity cover the bare panel, while the published maximum pattern is 1200 × 600 mm. Confirm explicit 1000 × 400 mm support, all attached loads, screw engagement, stability and access before ordering.

Installation

Allow for the 2511 mm screen width, 89.4 kg panel weight and 1000 × 400 mm VESA pattern during access, handling and structural design. For a VSYS floor installation, assess the VTLX16M-612FW against its full pattern drawing before ordering: the published 1200 × 600 maximum does not by itself confirm every intermediate pattern. A VSYS wall installation requires an expressly approved bracket or engineered interface for this exact pattern and full load. Confirm fixings, stability, ventilation, cable clearance and professional handling. Use a source and timing that actually deliver the intended 5120 × 2160 layout; ordinary 4K input and a complete Teams Rooms deployment are separate considerations.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your UW105NA quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the MAXHUB UW105NA used for?

The MAXHUB UW105NA is a 105-inch, 21:9 commercial display for wide meeting layouts and panoramic business content. Its 5120 × 2160 image provides a broad canvas for a separately specified room system or content source. Plan seating, readable text and the room's sightlines around the full screen width before selecting the installation position.

Is MAXHUB UW105NA an interactive touchscreen or complete Teams Rooms system?

UW105NA is a non-touch commercial display. A Teams Rooms deployment needs separately specified compatible compute, controller, camera, room audio and licences. Confirm the desired 21:9 layout and supported source timing for the selected platform.

Which VSYS floor stand or wall mount should be specified for UW105NA?

The display needs a support for a 105-inch panel, 89.4 kg net weight and 1000 × 400 mm pattern. VSYS VTLX16M-612FW is a floor-cart candidate for assessment because its screen and load ranges cover the reference panel, but the exact pattern must be confirmed from the complete drawing. Corporate AV must also verify an appropriate VSYS wall bracket or engineered interface; no direct wall fit is assumed.

Which equipment should I consider with UW105NA?

VSYS VTLX16M-612FW TV Cart. VSYS VTLX16M-612FW motorised floor-cart candidate for assessment, not a confirmed direct-fit bundle. Its 60–110-inch screen range and 120 kg capacity cover the bare panel, while the published maximum pattern is 1200 × 600 mm. Confirm explicit 1000 × 400 mm support, all attached loads, screw engagement, stability and access before ordering.

What is included with UW105NA?

One MAXHUB UW105NA display; Power cord; One Wi-Fi module; One 2 m HDMI cable; One remote control; One manufacturer wall bracket; One 1.8 m USB-C cable. Confirm the exact regional pack on the quotation.

What should I check before installing UW105NA?

Allow for the 2511 mm screen width, 89.4 kg panel weight and 1000 × 400 mm VESA pattern during access, handling and structural design. For a VSYS floor installation, assess the VTLX16M-612FW against its full pattern drawing before ordering: the published 1200 × 600 maximum does not by itself confirm every intermediate pattern. A VSYS wall installation requires an expressly approved bracket or engineered interface for this exact pattern and full load. Confirm fixings, stability, ventilation, cable clearance and professional handling. Use a source and timing that actually deliver the intended 5120 × 2160 layout; ordinary 4K input and a complete Teams Rooms deployment are separate considerations.

Can Corporate AV help specify UW105NA for a UAE project?

Share your UW105NA quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a MAXHUB UW105NA quotation in the UAE?

Contact Corporate AV about MAXHUB UW105NA. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
