MAXHUB V8650 86-inch XBoard V7 Interactive Display
Model V8650
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Display: 86-inch 3840 × 2160 UHD at 60 Hz
- Touch: 50-point infrared recognition; palm rejection and supported Windows Ink workflows
- Brightness: 350 cd/m² typical
- Duty and orientation: 16/7; landscape
- Camera system: Three 50 MP cameras, 5× hybrid zoom and privacy shutter
- Authorized MAXHUB Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the MAXHUB V8650?

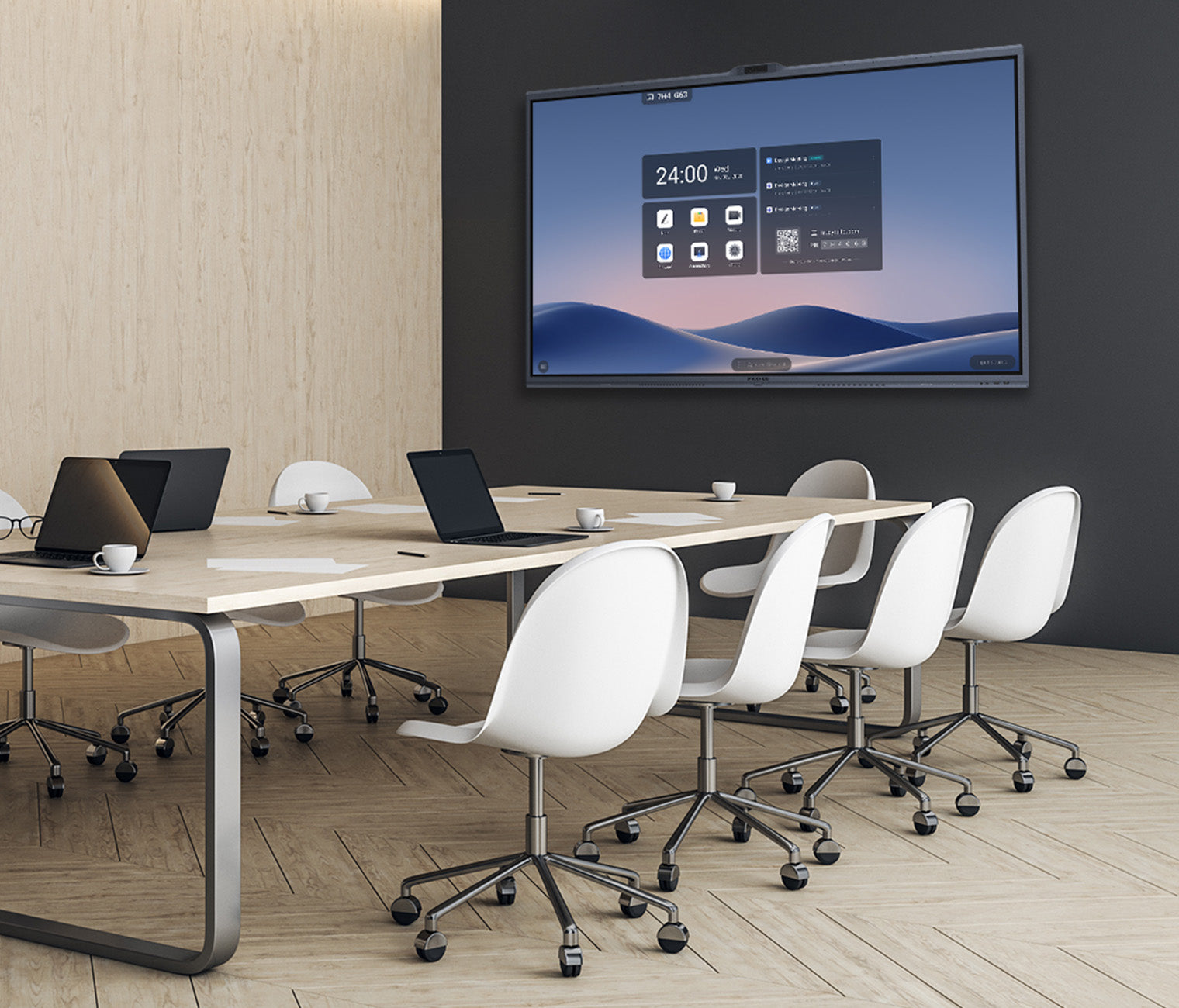

The MAXHUB V8650 XBoard V7 brings a 86-inch interactive 4K workspace to large meeting and presentation rooms. Its triple-camera system and microphone array support remote collaboration, while a specified Windows PC module provides the computing platform for the complete XBoard system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 86-inch XBoard V7 interactive panel for meetings, annotation and remote collaboration with a compatible computing module.
- Touch: 50-point infrared recognition; palm rejection and supported Windows Ink workflows.
- Camera system: Three 50 MP cameras, 5× hybrid zoom and privacy shutter.
Use cases
Applications
-
Interactive meeting-room collaboration
-
Remote team discussions with the specified PC module
-
Whiteboarding, annotation and training presentations
Technical details
Technical Specifications
Display
- Brightness
- 350 cd/m² typical
- Brightness
- 350 cd/m² typical.
Touch
- Touch
- 50-point infrared recognition; palm rejection and supported Windows Ink workflows
Audio & Camera
- Camera system
- Three 50 MP cameras, 5× hybrid zoom and privacy shutter
- Microphones
- 16-microphone array; actual pickup depends on room conditions
- Audio
- 2.1-channel system with two 10 W speakers and 20 W subwoofer
Connectivity
- Panel connections
- Two HDMI inputs, USB-C input, USB-A, USB touch return, audio and RS232
Control & Management
- Management
- MAXHUB Pivot; control integration requires appropriate configuration
Physical & Mounting
- Duty and orientation
- 16/7; landscape
- Dimensions (W × H × D)
- 1957 × 1180.1 × 103 mm
- Net panel weight
- 59.95 kg; confirm complete installed configuration
- VESA mounting
- 800 × 600 mm
- Duty and orientation
- 16/7; landscape.
Model & Identification
- Model
- V8650
- Manufacturer part number
- V8650
General
- Display
- 86-inch 3840 × 2160 UHD at 60 Hz
- Framing
- Automatic framing, speaker tracking and multi-speaker tracking
- Computing
- MAXHUB OS 7.0 powered by a compatible Windows MT71-series PC module; confirm bundle and OS licence
- Display
- 86-inch 3840 × 2160 UHD at 60 Hz.
In the box
What's Included
-
86-inch MAXHUB V8650 XBoard V7 panel
-
3 m power cord
-
1.5 m HDMI cable
-
Two styluses
-
Manufacturer wall mount
-
SI07B wireless adapter
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01A-69F Fixed TV Mount. VSYS wall-mount alternative matching the reference screen size, panel load and VESA pattern. A manufacturer wall mount is listed in the standard pack; confirm whether a VSYS alternative is required and assess anchors and rear clearance.
VSYS VTLX16-69FW TV Cart. VSYS floor-stand option covering this panel's screen size, stated load and listed VESA pattern. Add PC and accessory weight, and confirm stability for touch interaction; trolley is separate.
Installation
Check the 800 × 600 mm VESA pattern and 59.95 kg reference panel weight, then include the PC module and all other accessories in the installed load. Confirm the MT71 module, Windows version, licences, firmware and meeting applications in the quotation. Assess wall structure, touch reach, ventilation, camera sightline, cable movement and trolley stability.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your V8650 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
