Bose

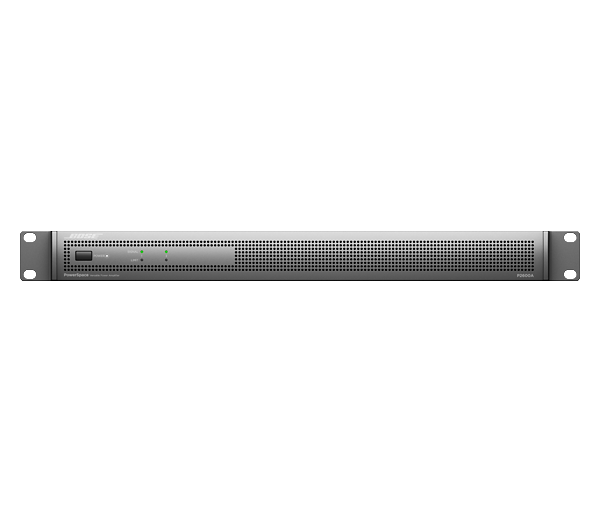

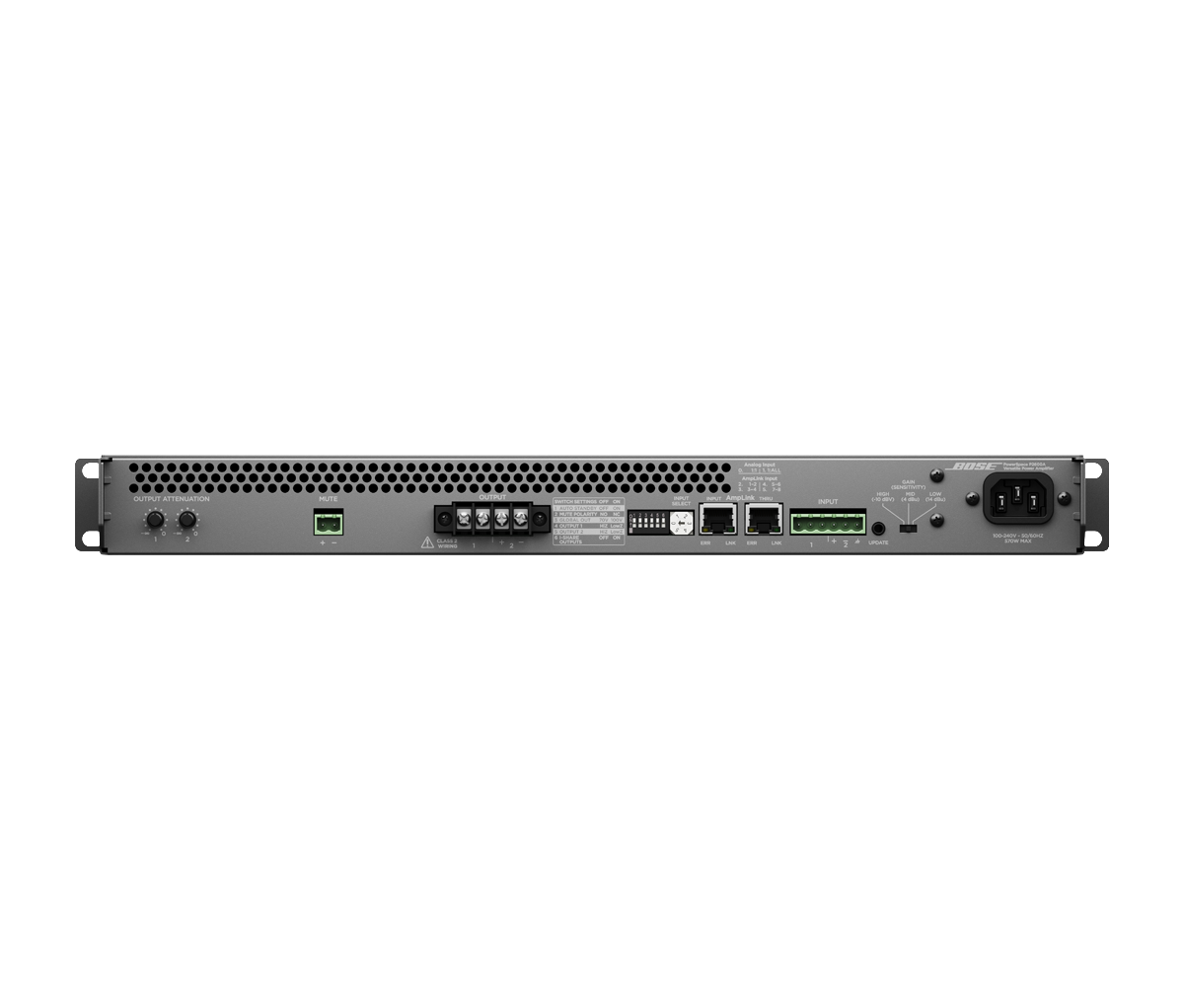

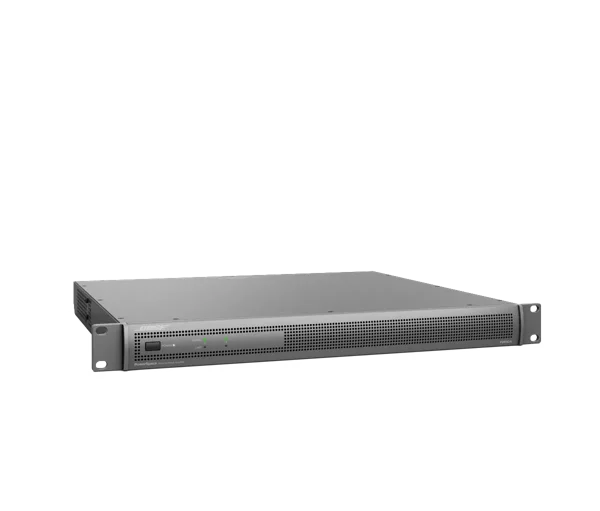

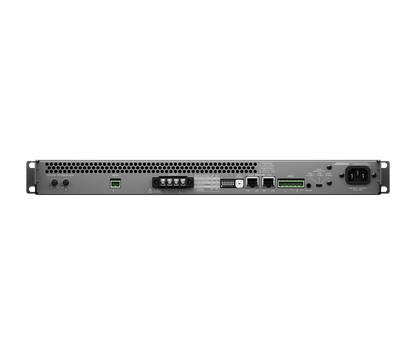

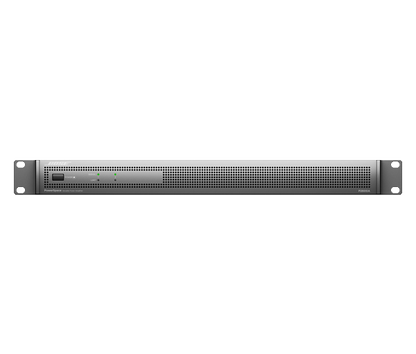

Bose PowerSpace P2600A 2-Channel Amplifier

Model 803286-4110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 2 amplified output channels; Supported low-impedance and 70/100 V modes
  • 600 W
  • Non-DSP model; specify processing where required
  • 100–240 VAC (±10%), 50/60 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose PowerSpace P2600A 2-Channel Amplifier
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose PowerSpace P2600A?

The Bose PowerSpace P2600A is a commercial power amplifier for installations using analogue sources or compatible AmpLink distribution, with separate processing specified when required. The published output rating is 600 W. Corporate AV can specify the speaker circuits, source equipment and installation scope for your UAE project.

This amplifier drives compatible passive loudspeakers as part of an installed sound system. It does not include the speakers, source devices or complete site wiring. Set output modes and channel levels using the documented hardware controls. This A-series model does not include the configurable DSP of the PowerSpace+ models; specify separate signal processing where the system requires it.

Why this product

Key Benefits

  • Loudspeaker connection

    Supported low-impedance and 70/100 V modes; calculate each speaker circuit before connection.

  • System setup

    Set output modes and channel levels using the documented hardware controls. This A-series model does not include the configurable DSP of the PowerSpace+ models; specify separate signal processing where the system requires it.

  • AmpLink input

    Compatible AmpLink digital audio input is available. Follow the documented connection arrangement rather than treating the port as generic network audio.

Use cases

Applications

  • Commercial music and paging

    Plan speaker loads and operating levels around the required zones.

  • Corporate and hospitality spaces

    Specify sources, room controls and cabling alongside the amplifier.

  • Installed audio upgrades

    Check the existing speaker type, line voltage and processing before substituting an amplifier.

Technical details

Technical Specifications

System

Output Configuration
Supported low-impedance and 70/100 V modes
DSP / Processing
Separate configurable DSP required where specified by the system design

Connectivity

Amplified Output Channels
2
Rated Output
600 W
Digital Audio Input
8 AmpLink in, 8 AmpLink thru
Analogue Input Channels
2 balanced
Mains Input
100–240 VAC (±10%), 50/60 Hz
Output design
600 W

Physical

Dimensions (H × W × D)
1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)
Net Weight
13.7 lb (6.2 kg)

General

Model
PowerSpace P2600A
Manufacturer Part Number
803286-4110

In the box

What's Included

  • (1) 2-pin Euroblock connector

  • (1) Cat 5e cable, 3.3 ft (1 m)

  • (2) 3-pin Euroblock connectors

  • (1) I-Share jumper

  • (5) terminal forks, 14–16 AWG

  • (1) PowerSpace P2600A

  • (1) installation guide

  • (1) IEC power cord

Installation

Installation & Mounting

Recommended Compatible Loudspeaker

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair) is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

Installation

Check speaker type, output mode, load, signal routing, protection settings, ventilation and the available electrical supply before commissioning. Set output modes and channel levels using the documented hardware controls. This A-series model does not include the configurable DSP of the PowerSpace+ models; specify separate signal processing where the system requires it.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty and service arrangements for the supplied SKU. Identify any optional support plan separately.

Support

Provide the PowerSpace P2600A quantity, speaker schedule, source equipment and site location for an itemised Corporate AV proposal in Dubai, Abu Dhabi or another UAE emirate.

Complete your solution

Recommended Accessories

Expert FAQs

What output power does the Bose P2600A provide?

600 W. Output depends on the documented load and operating mode; do not treat a shared total as the power available independently on every channel.

What type of loudspeaker wiring can I use with P2600A?

Supported low-impedance and 70/100 V modes. Match the amplifier setting to the speaker circuit, calculate the complete load and apply the manufacturer's protection settings. Do not assume HZ and LZ models are interchangeable.

Does P2600A include DSP or require separate processing?

Set output modes and channel levels using the documented hardware controls. This A-series model does not include the configurable DSP of the PowerSpace+ models; specify separate signal processing where the system requires it.

Does P2600A include network or wireless audio?

AmpLink digital audio input is included for the documented Bose connection arrangement. Do not assume it is a Dante input or a general Ethernet-network audio port.

Which speakers can I consider with P2600A?

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair). is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

How many speakers can P2600A support?

For 70/100 V systems, total each speaker's selected transformer tap per channel and allow the required headroom. For low-impedance systems, calculate the combined impedance and power requirements. Quantity depends on the complete design rather than the number of output terminals.

What is included with P2600A?

The supplied pack lists (1) 2-pin Euroblock connector; (1) Cat 5e cable, 3.3 ft (1 m); (2) 3-pin Euroblock connectors; (1) I-Share jumper; (5) terminal forks, 14–16 AWG; (1) PowerSpace P2600A; (1) installation guide; (1) IEC power cord. Confirm the exact regional cord and connectors. Other system equipment is separate unless itemised on the quotation.

How can I request a Bose PowerSpace P2600A quotation in the UAE?

Ask Corporate AV for PowerSpace P2600A, the quantity and your speaker-circuit requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, warranty, lead time and installation scope on the quotation.
