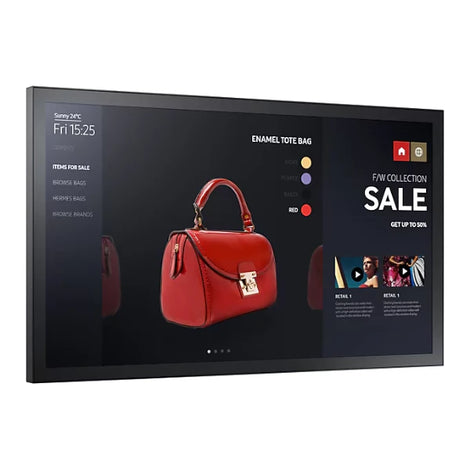

Samsung PM32F-BC 32" Full HD Capacitive Touch Display

Model LH32PMFXTBC/UE

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Screen: 32-inch class; 31.5-inch measured diagonal
  • Native resolution: 1920 × 1080 Full HD
  • Brightness: 300 cd/m² typical with touch glass
  • Operating rating: 16/7
  • Touch: Capacitive touch; verify host and application support
Digital Signage & Video Walls Part of our complete AV solutions Explore Solutions
Samsung PM32F-BC 32" Full HD Capacitive Touch Display
  • Authorized Samsung Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Samsung PM32F-BC?

The Samsung PM32F-BC is a 32-inch class Full HD touch display for indoor customer information and interactive content. Its capacitive touch surface and embedded signage player support a compact installation without treating a separate PC as mandatory for every application. Validate the intended software and touch workflow before specifying this legacy model. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

A legacy commercial touch display with native 1920 × 1080 resolution and a 16/7 operating rating. It is supplied separately from the application, licences and optional mounting support. Confirm the exact regional SKU, availability and service arrangements before ordering.

  • Touch: Capacitive touch; verify host and application support.

Use cases

Applications

  • Indoor customer information and product selection points

  • Reception touch interfaces using compatible content software

  • Legacy interactive-signage replacements within a 16/7 schedule

Technical details

Technical Specifications

Display

Screen
32-inch class; 31.5-inch measured diagonal
Native resolution
1920 × 1080 Full HD
Brightness
300 cd/m² typical with touch glass
Screen
32-inch class; 31.5-inch measured diagonal.
Native resolution
1920 × 1080 Full HD.
Brightness
300 cd/m² typical with touch glass.

Touch

Touch
Capacitive touch; verify host and application support

System & Software

Platform
MagicINFO Player S4 on Tizen 2.4; confirm current application and firmware support

Connectivity

Connections
Two HDMI, DisplayPort, DVI-I, USB, RJ45 and RS-232C

Physical & Mounting

VESA mounting
200 × 200 mm
Set weight
9.9 kg
Dimensions (W × H × D)
745.2 × 439.6 × 62.1 mm

Certifications & Warranty

Operating rating
16/7
Operating rating
16/7.

Model & Identification

Model
PM32F-BC
Manufacturer part number
LH32PMFXTBC/UE

In the box

What's Included

  • One Samsung PM32F-BC display

  • Remote control with batteries

  • Power cord

  • Quick setup guide

  • Regulatory guide

  • Warranty documentation

  • RS-232C input adapter

  • Cover jack

  • USB touch cables in the reference pack

Installation

Installation & Mounting

Recommended Compatible Equipment

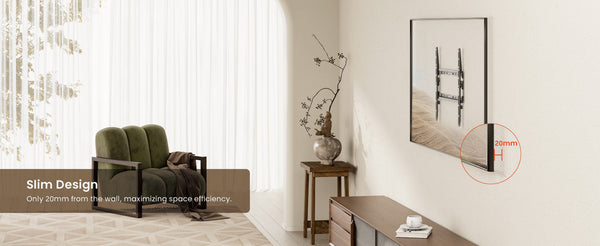

VSYS VS01E-44F Fixed TV Mount. Optional VSYS VS01E-44F fixed wall mount: its 32–75-inch range, 45 kg rating and 200 × 200 mm compatibility cover the reference panel. Verify the wall structure, correct screws, cable access and reachable touch position.

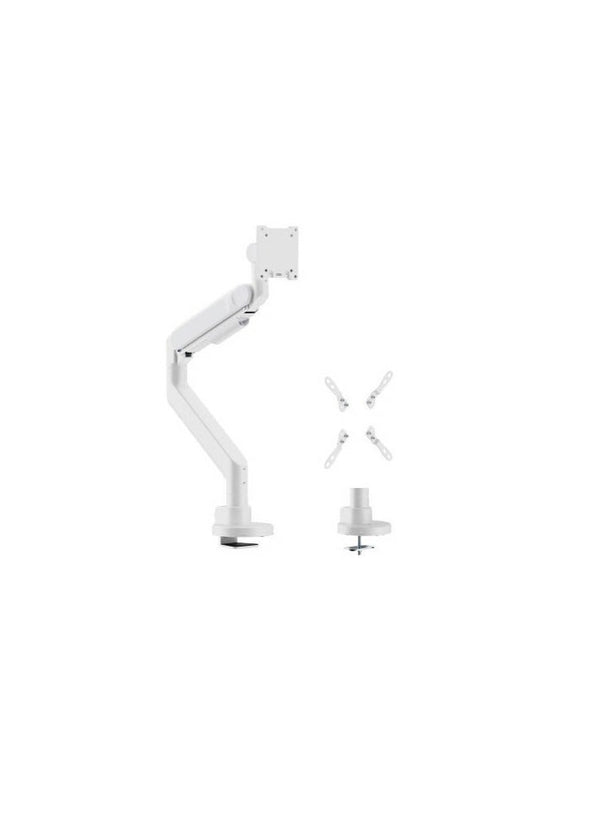

VSYS VMAD-C012WG Monitor Arm. Optional VSYS VMAD-C012WG desk arm: its 24–57-inch range, 2–27 kg flat-panel range and 200 × 200 mm pattern cover the 9.9 kg reference panel. Verify complete load, desk attachment and stability during touch use. This is not a floor stand.

Installation

Match the 200 × 200 mm VESA pattern and 9.9 kg panel weight to the complete VSYS support load range, screw engagement and structure. For a wall installation, check port access, touch reach and ventilation. For a desk arm, include touch forces, desk strength and the complete installed load. A floor-standing kiosk needs a separately engineered VSYS support expressly approved for the 32-inch panel; larger TV carts are not assumed to fit. Follow the 16/7 schedule and confirm current legacy software, licences and regional accessory pack.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your PM32F-BC quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Samsung PM32F-BC used for?

The Samsung PM32F-BC is a 32-inch class Full HD touch display for indoor customer information and interactive content. Its capacitive touch surface and embedded signage player support a compact installation without treating a separate PC as mandatory for every application. Validate the intended software and touch workflow before specifying this legacy model.

Is Samsung PM32F-BC a 24/7 touch display?

The model-specific manufacturer reference rates it for 16/7. Plan daily off time within that rating. Do not use general series marketing language to assume continuous operation for this 32-inch model.

Does PM32F-BC need a separate computer for touch content?

The built-in MagicINFO Player S4 and Tizen platform can support compatible content without an external PC. A separate computer may be required for the selected application. Confirm the app, current platform support and USB touch-return connection for the intended workflow.

Which equipment should I consider with PM32F-BC?

VSYS VS01E-44F Fixed TV Mount. Optional VSYS VS01E-44F fixed wall mount: its 32–75-inch range, 45 kg rating and 200 × 200 mm compatibility cover the reference panel. Verify the wall structure, correct screws, cable access and reachable touch position.

VSYS VMAD-C012WG Monitor Arm. Optional VSYS VMAD-C012WG desk arm: its 24–57-inch range, 2–27 kg flat-panel range and 200 × 200 mm pattern cover the 9.9 kg reference panel. Verify complete load, desk attachment and stability during touch use. This is not a floor stand.

What is included with PM32F-BC?

One Samsung PM32F-BC display; Remote control with batteries; Power cord; Quick setup guide; Regulatory guide; Warranty documentation; RS-232C input adapter; Cover jack; USB touch cables in the reference pack. Confirm the exact regional pack on the quotation.

What should I check before installing PM32F-BC?

Match the 200 × 200 mm VESA pattern and 9.9 kg panel weight to the complete VSYS support load range, screw engagement and structure. For a wall installation, check port access, touch reach and ventilation. For a desk arm, include touch forces, desk strength and the complete installed load. A floor-standing kiosk needs a separately engineered VSYS support expressly approved for the 32-inch panel; larger TV carts are not assumed to fit. Follow the 16/7 schedule and confirm current legacy software, licences and regional accessory pack.

Can Corporate AV help specify PM32F-BC for a UAE project?

Share your PM32F-BC quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Samsung PM32F-BC quotation in the UAE?

Contact Corporate AV about Samsung PM32F-BC. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
