Samsung PM43F-BC 43-inch Full HD Touch Signage Display
Model LH43PMFXTBC/UE
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Screen: 43-inch Full HD touch signage
- Native resolution: 1920 × 1080
- Operating rating: 24/7
- Published brightness basis: 400 cd/m² with touch glass in US reference; confirm regional suffix
- Platform: Tizen 2.4, embedded signage player; verify current app support
- Authorized Samsung Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Samsung PM43F-BC?

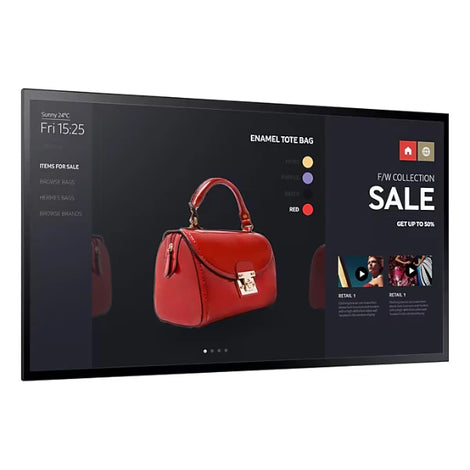

The Samsung PM43F-BC is a 43-inch Full HD touch-signage display for interactive information and business applications. Its 24/7 operating rating, embedded Tizen 2.4 reference platform and external video connections support compatible managed content workflows. The US reference lists 400 cd/m² brightness with touch glass; confirm the exact regional configuration, as PMF-BC brightness specifications differ between regional listings. Confirm legacy application support, availability and the required host before specifying the system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 43-inch commercial interactive signage screen with 1920 × 1080 native resolution. The PMF-BC reference provides a non-glare touch panel for customer interaction, kiosk-style applications and shared information. Its built-in player supports compatible signage content; a separate host may be required for a particular touch application or conferencing platform.
- Published brightness basis: 400 cd/m² with touch glass in US reference; confirm regional suffix.
- Platform: Tizen 2.4, embedded signage player; verify current app support.
Use cases
Applications
-
43-inch interactive retail and reception information
-
Indoor touch-signage applications with a verified host and content platform
-
Legacy signage replacements with video, USB touch and fixing checks
Technical details
Technical Specifications
Display
- Screen
- 43-inch Full HD touch signage
- Native resolution
- 1920 × 1080
- Published brightness basis
- 400 cd/m² with touch glass in US reference; confirm regional suffix
- Screen
- 43-inch Full HD touch signage.
- Native resolution
- 1920 × 1080.
Touch
- Control and touch
- RS-232C, RJ45 and separate USB touch connection
System & Software
- Platform
- Tizen 2.4, embedded signage player; verify current app support
Audio & Camera
- Audio
- Built-in 10 W × 2 speakers in the reference configuration
Connectivity
- Video input
- Two HDMI, DisplayPort and DVI-I (shared analogue connection)
Physical & Mounting
- VESA mounting
- 200 × 200 mm
- Reference panel weight
- 15.9 kg
- Dimensions (W × H × D)
- 983.9 × 582.3 × 62.8 mm
Certifications & Warranty
- Operating rating
- 24/7
- Operating rating
- 24/7.
Model & Identification
- Model
- PM43F-BC
- Manufacturer part number
- LH43PMFXTBC/UE
General
- Regional verification
- Confirm the exact ordered suffix, firmware, touch application and service arrangements
In the box
What's Included
-
One Samsung PM43F-BC display
-
Quick setup guide
-
Regulatory guide
-
Warranty card, where supplied for the region
-
Power cord
-
Remote control
-
Remote-control batteries
-
RS-232C input adapter
-
Connection cover
-
USB cable
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01E-46F Fixed TV Mount. Optional VSYS fixed wall mount: 37–86-inch range, 45 kg rating and listed 200 × 200 mm pattern for the 43-inch, 15.9 kg reference display. Check full load, fixing depth, wall structure and suitability for touch use.
VSYS VTLS12-46TW TV Cart. Optional VSYS mobile floor stand: 37–70-inch, 70 kg capacity with a listed 200 × 200 mm pattern. Confirm stability during touch interaction, permitted orientation, brakes, viewing height and total installed load.
Installation
Match 200 × 200 mm VESA and the 15.9 kg reference panel weight to the VSYS support, allowing for all attached equipment. Confirm wall structure, fasteners, touch-use stability, orientation, ventilation and service clearance. Verify the exact regional model and current host/driver/CMS compatibility for this legacy product. Optional mounts, stands, PCs, content applications and licences are separate. Indoor signage and a 24/7 rating do not establish outdoor weather protection.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your PM43F-BC quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
