Bose

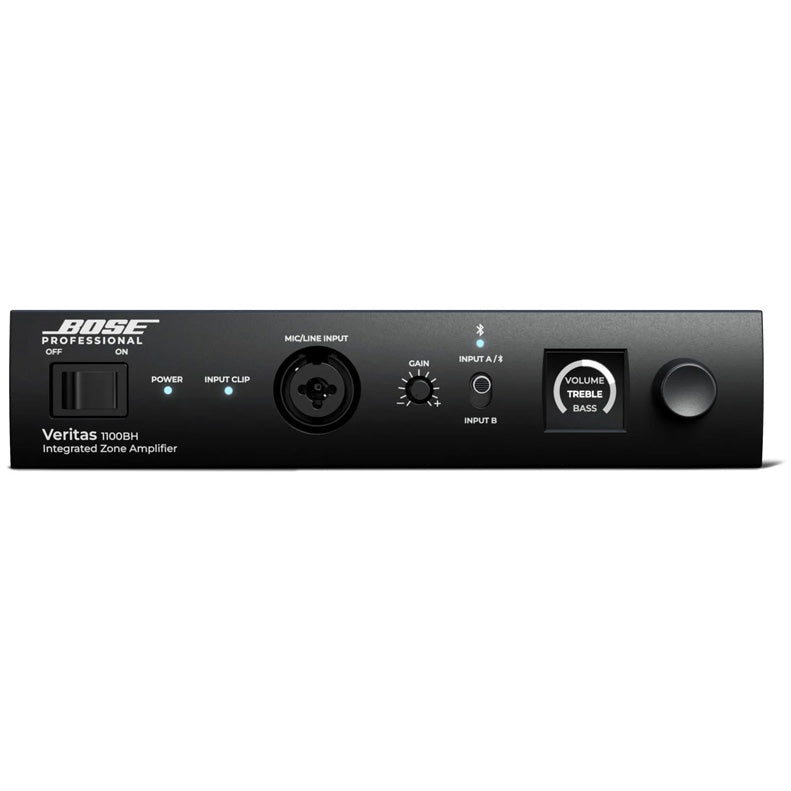

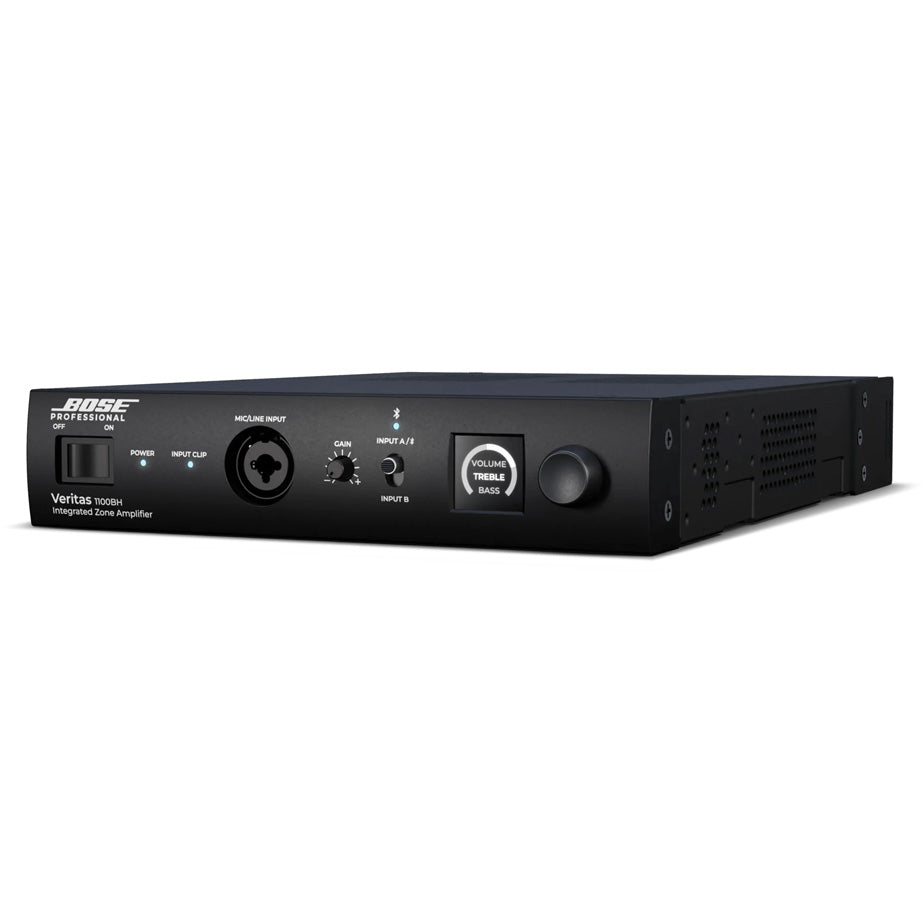

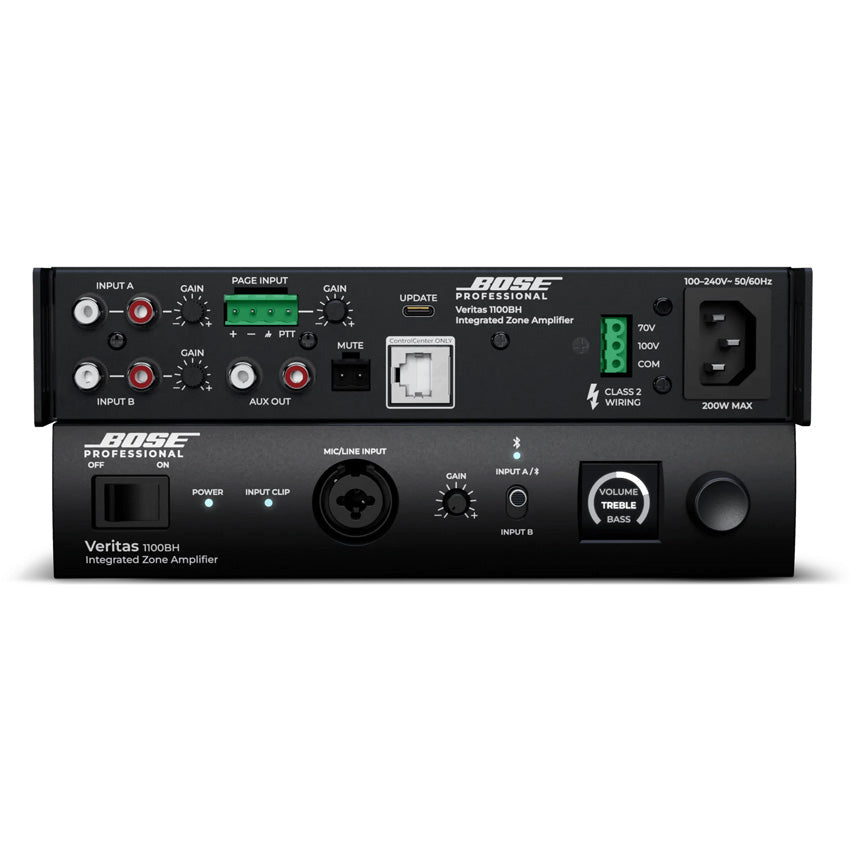

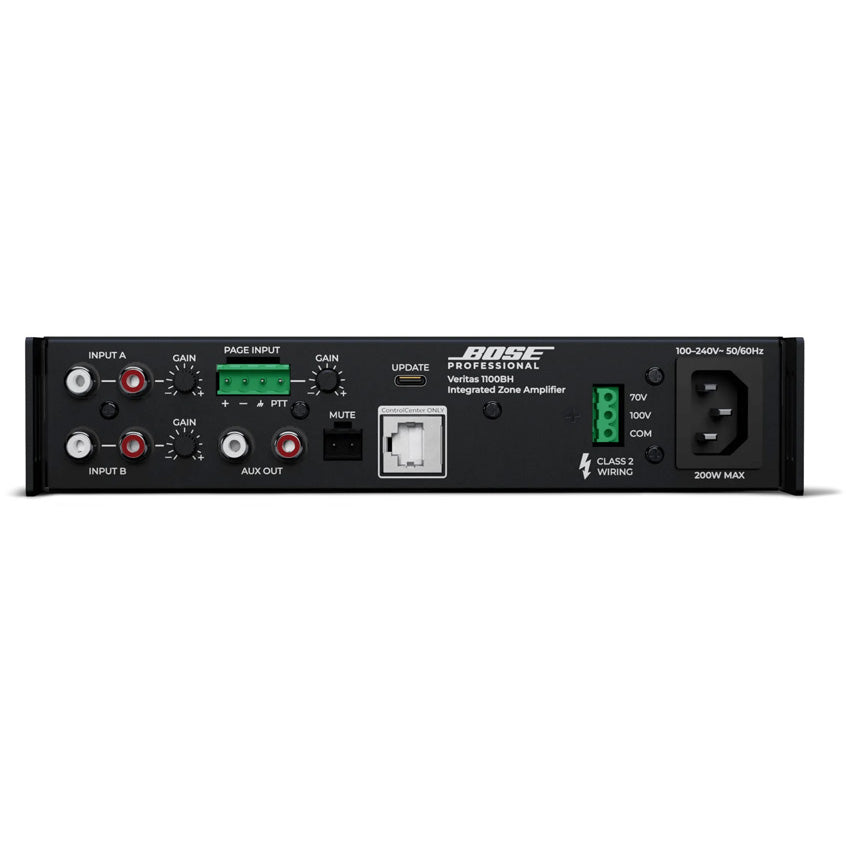

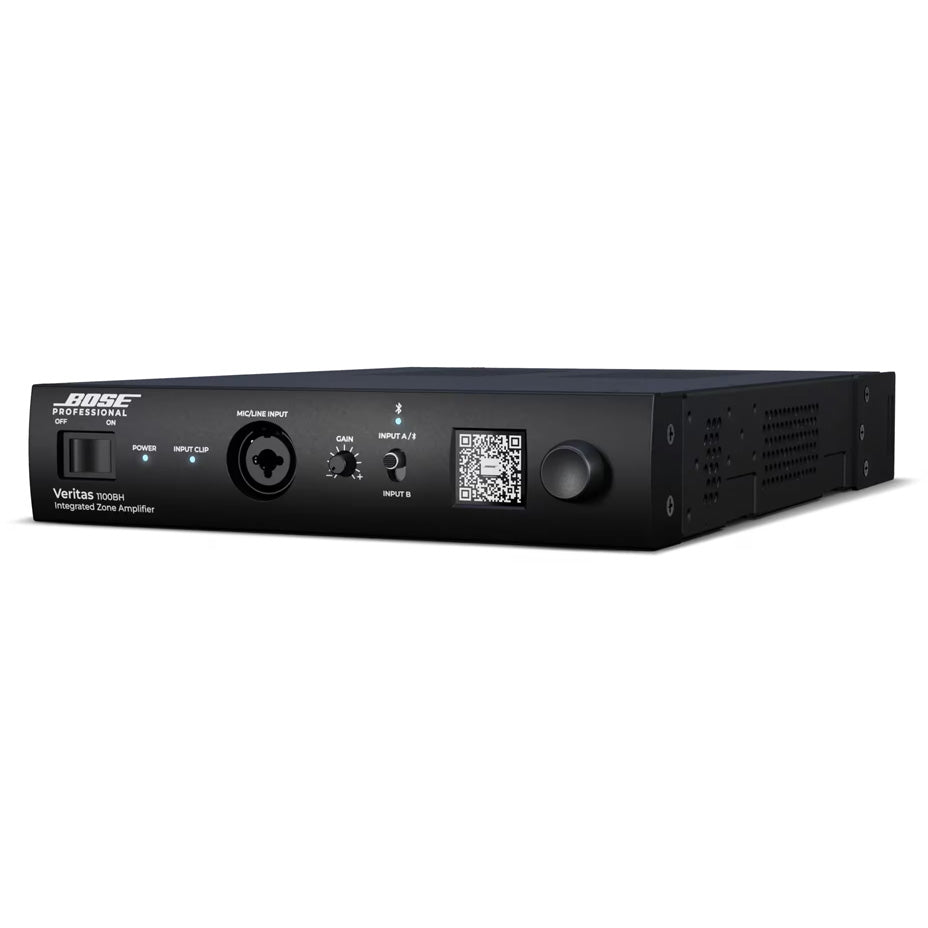

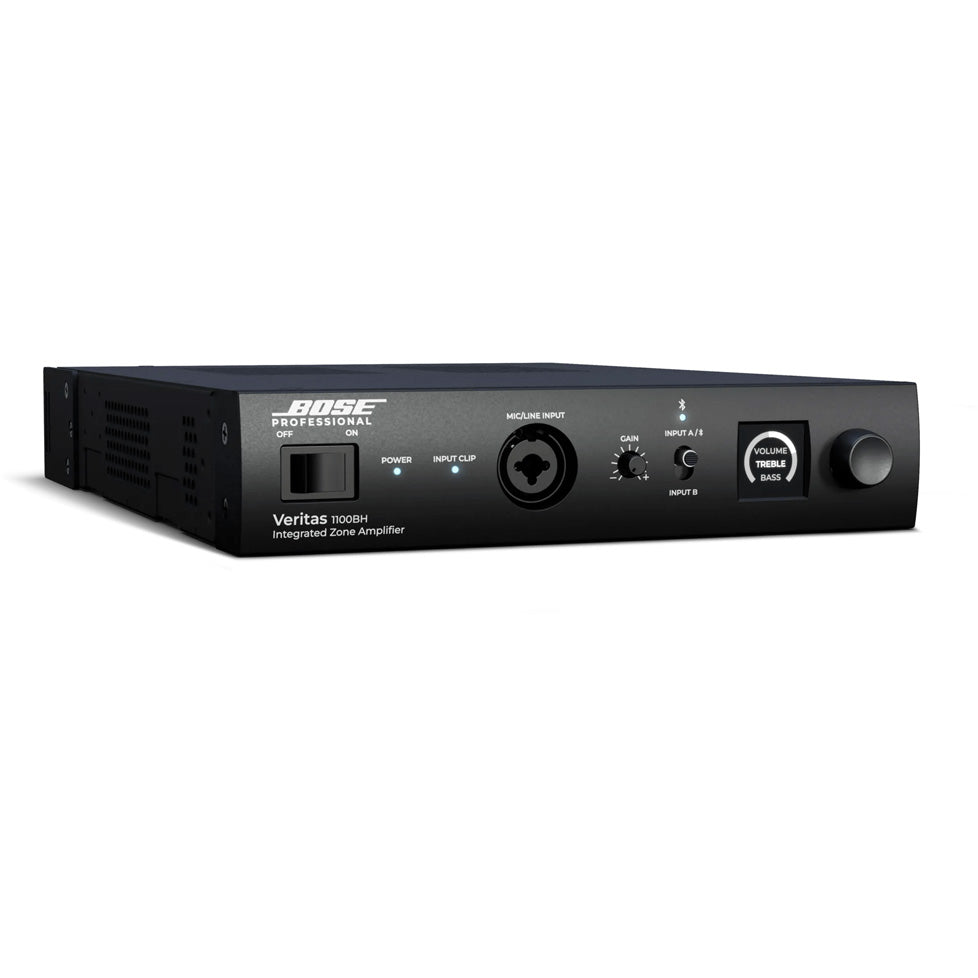

Bose Veritas 1100BH 1-Channel DSP Amplifier

Model 892237-4110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 1 amplified output channel; 70/100 V high-impedance
  • 1 x 100 W at 70V/100V
  • Onboard processing; configure the speaker protection
  • 100–240 VAC (±10%), 50/60 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose Veritas 1100BH 1-Channel DSP Amplifier
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose Veritas 1100BH?

The Bose Veritas 1100BH is a commercial mixer amplifier with Bluetooth input and front-panel setup for background music, paging and multimedia audio. The published output rating is 1 x 100 W at 70V/100V. Corporate AV can specify the speaker circuits, source equipment and installation scope for your UAE project.

This amplifier drives compatible passive loudspeakers as part of an installed sound system. It does not include the speakers, source devices or complete site wiring. Use the front-panel OLED interface and documented setup controls to select the input, speaker settings and output level. Bluetooth is an input source; the passive loudspeaker connections remain wired.

Why this product

Key Benefits

  • Loudspeaker connection

    70/100 V high-impedance; calculate each speaker circuit before connection.

  • System setup

    Use the front-panel OLED interface and documented setup controls to select the input, speaker settings and output level. Bluetooth is an input source; the passive loudspeaker connections remain wired.

  • Wireless source input

    Bluetooth 5.0 is available as a source input alongside the published wired inputs.

Use cases

Applications

  • Commercial music and paging

    Plan speaker loads and operating levels around the required zones.

  • Corporate and hospitality spaces

    Specify sources, room controls and cabling alongside the amplifier.

  • Installed audio upgrades

    Check the existing speaker type, line voltage and processing before substituting an amplifier.

Technical details

Technical Specifications

System

Output Configuration
70/100 V high-impedance
DSP / Processing
Onboard processing; configure for the connected speakers

Connectivity

Amplified Output Channels
1
Rated Output
1 x 100 W at 70V/100V
Analogue Input Channels
(2) unbalanced line, (2) balanced mic/line
Mains Input
100–240 VAC (±10%), 50/60 Hz
Output design
1 x 100 W at 70V/100V

Physical

Dimensions (H × W × D)
44 mm × 214 mm × 310 mm (1.7 in × 8.4 in × 12.2 in)
Net Weight
3.2 kg (7.1 lb)

General

Model
Veritas 1100BH
Manufacturer Part Number
892237-4110

In the box

What's Included

  • One Bose Veritas 1100BH amplifier

  • (2) mounting brackets

  • (6) screws

  • (4) mounting feet with pins

  • (1) 4-pin Euroblock connector

  • (1) 3-pin Euroblock connector

  • (1) 2-pin Euroblock connector

  • (1) power cord

  • (1) installation guide

Installation

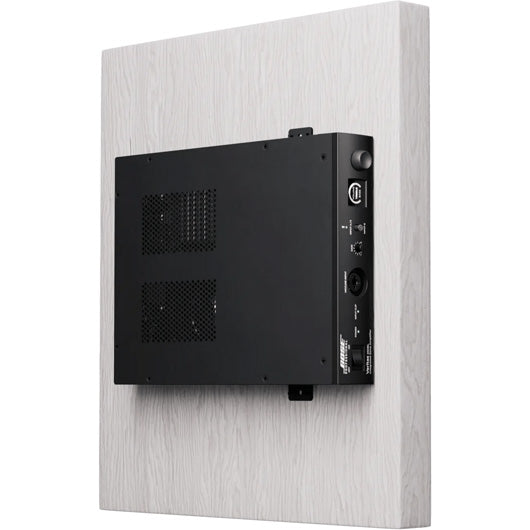

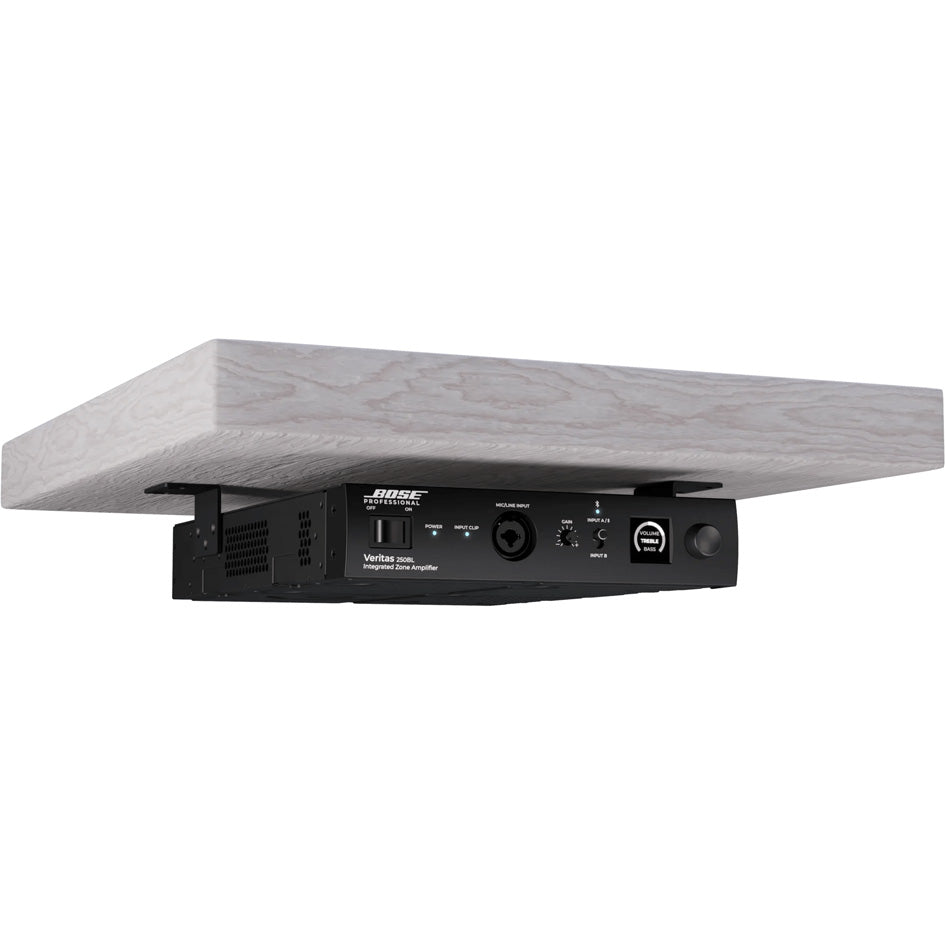

Installation & Mounting

Recommended Compatible Loudspeaker

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair) is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

Installation

Check speaker type, output mode, load, signal routing, protection settings, ventilation and the available electrical supply before commissioning. Use the front-panel OLED interface and documented setup controls to select the input, speaker settings and output level. Bluetooth is an input source; the passive loudspeaker connections remain wired.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty and service arrangements for the supplied SKU. Identify any optional support plan separately.

Support

Provide the Veritas 1100BH quantity, speaker schedule, source equipment and site location for an itemised Corporate AV proposal in Dubai, Abu Dhabi or another UAE emirate.

Complete your solution

Recommended Accessories

Expert FAQs

What output power does the Bose Veritas 1100BH provide?

1 x 100 W at 70V/100V. Output depends on the documented load and operating mode; do not treat a shared total as the power available independently on every channel.

What type of loudspeaker wiring can I use with Veritas 1100BH?

70/100 V high-impedance. Match the amplifier setting to the speaker circuit, calculate the complete load and apply the manufacturer's protection settings. Do not assume HZ and LZ models are interchangeable.

Does Veritas 1100BH include DSP or require separate processing?

Use the front-panel OLED interface and documented setup controls to select the input, speaker settings and output level. Bluetooth is an input source; the passive loudspeaker connections remain wired.

Does Veritas 1100BH include network or wireless audio?

Bluetooth 5.0 provides a wireless source input. Loudspeaker outputs are wired, and Bluetooth does not replace the speaker cabling.

Which speakers can I consider with Veritas 1100BH?

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair). is a compatible passive-speaker option using its appropriate 70/100 V tap. Total the selected tap wattages per amplifier channel, retain design headroom and configure the required protection.

How many speakers can Veritas 1100BH support?

For 70/100 V systems, total each speaker's selected transformer tap per channel and allow the required headroom. For low-impedance systems, calculate the combined impedance and power requirements. Quantity depends on the complete design rather than the number of output terminals.

What is included with Veritas 1100BH?

The supplied pack lists One Bose Veritas 1100BH amplifier; (2) mounting brackets; (6) screws; (4) mounting feet with pins; (1) 4-pin Euroblock connector; (1) 3-pin Euroblock connector; (1) 2-pin Euroblock connector; (1) power cord; (1) installation guide. Confirm the exact regional cord and connectors. Other system equipment is separate unless itemised on the quotation.

How can I request a Bose Veritas 1100BH quotation in the UAE?

Ask Corporate AV for Veritas 1100BH, the quantity and your speaker-circuit requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, warranty, lead time and installation scope on the quotation.
