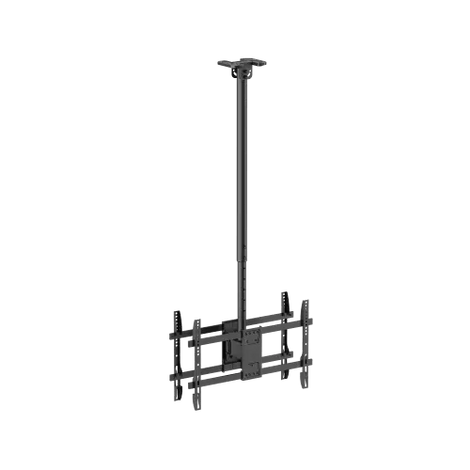

VSYS VCM-CE1546BL Dual-Screen Ceiling Mount
Model VCM-CE1546BL
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Fit Screen Size: 43″-86″ per screen
- VESA Compatibility: 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400
- Maximum Mounting Hole Spread: 610 x 402mm
- Weight Capacity: 50kg x2 (110lbs x2), 100kg combined
- Authorized VSYS Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the VSYS VCM-CE1546BL?
The VSYS VCM-CE1546BL is a dual-screen ceiling mount for professional AV installations. The specified screen range is 43″-86″ per screen. The rated load is 50kg x2 (110lbs x2), 100kg combined. Corporate AV can help specify it for your project in Dubai, Abu Dhabi or elsewhere in the UAE.
This dual-screen ceiling mount supports the compatible equipment as part of a complete installation. Match the device's fixing pattern and full installed weight to the published limits, then check the structure, cable route and viewing position.
- VESA Compatibility: 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400.
Use cases
Applications
-
Meeting and training rooms
Position compatible equipment for the seating layout.
-
Retail and reception
Specify the support alongside display orientation and cable access.
-
AV fit-outs
Include the supporting structure and installation requirements in the equipment schedule.
Technical details
Technical Specifications
Compatibility
- Fit Screen Size
- 43″-86″ per screen
- VESA Compatibility
- 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400
- Weight Capacity
- 50kg x2 (110lbs x2), 100kg combined
- Fit Screen Size
- 43″-86″ per screen.
- Weight Capacity
- 50kg x2 (110lbs x2), 100kg combined.
Adjustment
- Tilt Range
- +5° to -20° per bracket
- Swivel/Pole Rotation
- +180° to -180°
Build
- Material
- Steel
Dimensions
- Maximum Mounting Hole Spread
- 610 x 402mm
- Maximum Mounting Hole Spread
- 610 x 402mm.
Model & Identification
- Model
- VCM-CE1546BL
General
- Product Category
- Back-to-Back Dual-Screen Heavy-Duty TV Ceiling Mount
In the box
What's Included
-
VSYS VCM-CE1546BL dual-screen ceiling mount assembly
Installation
Installation & Mounting
Recommended Equipment
LG 65UR640S 65-inch signage TV meets the listed screen-size and weight requirements and its 300×300 mm VESA pattern is supported. Confirm screw depth, clearances and total installed load before purchase. Display sold separately.
Installation
Check the exact device's fixing pattern, weight, screw depth and ventilation. Specify the structural fixings and cable access for the actual mounting position.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, availability and lead time on the quotation.
Support
For a VCM-CE1546BL enquiry, share the room, equipment model, quantity and installation location with Corporate AV.
