VSYS

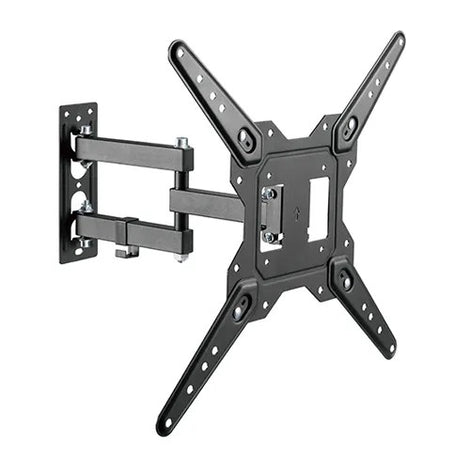

VSYS VS02E-443 Full-Motion TV Mount

Model VS02E-443

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Fit Screen Size: 23″-65″
  • VESA Compatibility: 100×100, 100×200, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400
  • Maximum Mounting Hole Spread: 400 x 400mm
  • Weight Capacity: 30kg (66lbs)
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
VSYS VS02E-443 Full-Motion TV Mount
  • Authorized VSYS Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the VSYS VS02E-443?

The VSYS VS02E-443 is a full-motion tv mount for professional AV installations. The specified screen range is 23″-65″. The rated load is 30kg (66lbs). Corporate AV can help specify it for your project in Dubai, Abu Dhabi or elsewhere in the UAE.

This full-motion tv mount supports the compatible equipment as part of a complete installation. Match the device's fixing pattern and full installed weight to the published limits, then check the structure, cable route and viewing position.

  • VESA Compatibility: 100×100, 100×200, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400.

Use cases

Applications

  • Meeting and training rooms

    Position compatible equipment for the seating layout.

  • Retail and reception

    Specify the support alongside display orientation and cable access.

  • AV fit-outs

    Include the supporting structure and installation requirements in the equipment schedule.

Technical details

Technical Specifications

Compatibility

Fit Screen Size
23″-65″
VESA Compatibility
100×100, 100×200, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400
Weight Capacity
30kg (66lbs)
Fit Screen Size
23″-65″.
Weight Capacity
30kg (66lbs).

Adjustment

Extension Range
60mm to 382mm (2.4″ to 15″) from wall
Tilt Range
+3 degrees / -10 degrees
Swivel Range
+90 degrees / -90 degrees

Build

Material
Steel

Dimensions

Maximum Mounting Hole Spread
400 x 400mm
Maximum Mounting Hole Spread
400 x 400mm.

Model & Identification

Model
VS02E-443

General

Product Category
Full-Motion TV Wall Mount

In the box

What's Included

  • VSYS VS02E-443 full-motion tv mount assembly

Installation

Installation & Mounting

Recommended Equipment

LG 65UR640S 65-inch signage TV meets the listed screen-size and weight requirements and its 300×300 mm VESA pattern is supported. Confirm screw depth, clearances and total installed load before purchase. Display sold separately.

Installation

Check the exact device's fixing pattern, weight, screw depth and ventilation. Specify the structural fixings and cable access for the actual mounting position.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, availability and lead time on the quotation.

Support

For a VS02E-443 enquiry, share the room, equipment model, quantity and installation location with Corporate AV.

Complete your solution

Recommended Accessories

Expert FAQs

What is the fit screen size of the VSYS VS02E-443?

Fit Screen Size is 23″-65″. Check the complete specification; one measurement alone does not establish compatibility.

What is the vesa compatibility of the VSYS VS02E-443?

VESA Compatibility is 100×100, 100×200, 200×100, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400. Check the complete specification; one measurement alone does not establish compatibility.

What is the maximum mounting hole spread of the VSYS VS02E-443?

Maximum Mounting Hole Spread is 400 x 400mm. Check the complete specification; one measurement alone does not establish compatibility.

What is included with the VSYS VS02E-443?

This listing is for the VSYS VS02E-443 full-motion tv mount assembly. Confirm the regional hardware and any selectable options on the quotation. The supported equipment or projector is specified separately.

How do I specify an installation for the VSYS VS02E-443?

Provide the supported equipment model, its fixing pattern and total installed weight, required position and site construction. Check the limits and clearances before installation.

Can Corporate AV help with the VSYS VS02E-443?

Share the quantity and project location in Dubai, Abu Dhabi or another UAE emirate. Ask Corporate AV to review the equipment schedule, installation scope, availability and warranty before ordering.

How can I request a VSYS VS02E-443 quotation in the UAE?

Ask Corporate AV for the VSYS VS02E-443, including the quantity, supported device model and installation location. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, lead time, warranty and the complete installation scope on the quotation.
