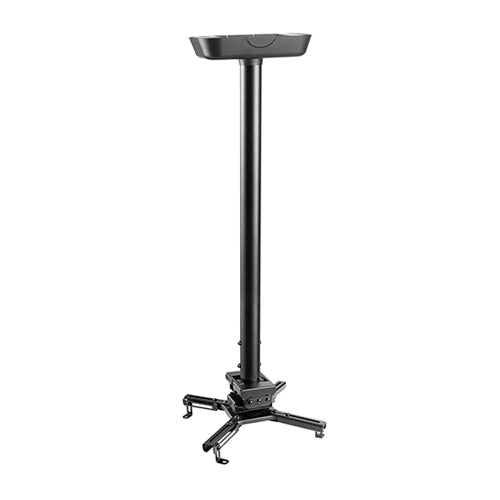

VSYS VPM-20-02L Projector Mount

Model VPM-20-02L

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Weight Capacity: 35kg (77lbs)
  • Dimensions: 1135 x 470 x 470mm (44.7″ x 18.5″ x 18.5″)
  • Tilt Range: +20° to -20°
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
VSYS VPM-20-02L Projector Mount
  • Authorized VSYS Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the VSYS VPM-20-02L?

The VSYS VPM-20-02L is a telescopic projector ceiling mount for a correctly specified projector installation. The published load rating is 35kg (77lbs). Select it against the actual equipment, fixing pattern and installation conditions before ordering.

This product is the projector mount assembly, supplied separately from the equipment it supports. The complete installation also depends on the device, structural or floor conditions, cable routes and any separately specified fixing hardware.

Why this product

Key Benefits

  • Equipment matching

    Match the equipment's fixing layout and weight as well as its nominal screen size.

  • Projector alignment

    Use the projector's lens position and throw geometry to set the mounting location.

  • Defined adjustment

    Tilt Range: +20° to -20°.

  • Project specification

    Keep the mount, supported device and any separate accessories identifiable on the quotation for a clear installation scope.

Use cases

Applications

  • Meeting rooms

    Position a projector around the required throw geometry.

  • Classrooms

    Coordinate projection alignment with the teaching area.

  • Training spaces

    Keep the equipment mounting separate from the presentation surface.

Technical details

Technical Specifications

Compatibility

Weight Capacity
35kg (77lbs)

Adjustment

Tilt Range
+20° to -20°
Extension Range
735-1135mm (28.9″-44.7″)

Build

Material
Steel, Plastic

Dimensions

Dimensions
1135 x 470 x 470mm (44.7″ x 18.5″ x 18.5″)

Installation & Security

Installation
Ceiling mounted

Model & Identification

Model
VPM-20-02L

General

Product Category
Telescopic Projector Ceiling Mount

In the box

What's Included

  • VSYS VPM-20-02L projector mount assembly

Installation

Installation & Mounting

Recommended Equipment

VSYS VPM-20-H is an alternative model to compare when the installation requirements differ. It is not an included component or an accessory that must be used with this product; compare both specifications before selecting one.

Installation

Check projector weight, mounting-hole geometry, lens position and throw requirements. Select structural anchors for the actual supporting construction; a product load rating does not establish the capacity of a ceiling or wall.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty and service conditions with the quotation. Optional accessories, finishes and hardware bundles should be itemised rather than assumed.

Support

For a VSYS VPM-20-02L installation enquiry, provide the supported device model, site location, desired position and quantity. Corporate AV can review the mounting scope for Dubai, Abu Dhabi and other UAE locations.

Complete your solution

Recommended Accessories

Expert FAQs

What is the weight capacity specification of the VSYS VPM-20-02L?

VSYS lists weight capacity as 35kg (77lbs). Check this alongside the other specifications for the exact model; one measurement alone does not establish compatibility.

What is the dimensions specification of the VSYS VPM-20-02L?

VSYS lists dimensions as 1135 x 470 x 470mm (44.7″ x 18.5″ x 18.5″). Check this alongside the other specifications for the exact model; one measurement alone does not establish compatibility.

What is the tilt range specification of the VSYS VPM-20-02L?

VSYS lists tilt range as +20° to -20°. Check this alongside the other specifications for the exact model; one measurement alone does not establish compatibility.

Does the VSYS VPM-20-02L include the supported equipment?

No. This listing is for the projector mount assembly. The supported device and separately specified accessories are not included. Confirm the exact hardware pack and any site-specific fixing items on the quotation.

How should I confirm compatibility before ordering the VPM-20-02L?

Check projector weight, mounting-hole positions and screw requirements as well as ceiling drop and lens position. A universal mount description does not establish compatibility with every projector.

Are building anchors included with the VSYS VPM-20-02L?

Do not assume a supplied fastener pack is suitable for every wall, ceiling or floor. Confirm the hardware inventory and select substrate-specific anchors for the actual installation; the product rating does not rate the building structure.

Can Corporate AV help specify the VPM-20-02L installation?

Provide the device model, quantity, intended mounting position and site details. This allows the mount and any separate cabling, structural fixing or commissioning requirements to be reviewed together.
