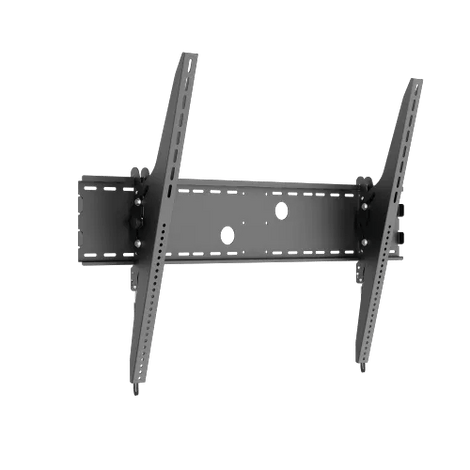

VSYS VS01XL-810T Tilting TV Mount
Model VS01XL-810T
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Fit Screen Size: 60″-100″
- Weight Capacity: 100kg (220lbs)
- Maximum Mounting Hole Spread: 1000 x 800mm
- Authorized VSYS Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the VSYS VS01XL-810T?
The VSYS VS01XL-810T is a tilt tv wall mount for a permanent display installation. VSYS specifies 60″-100″ and a 100kg (220lbs) load rating. Select it against the actual equipment, fixing pattern and installation conditions before ordering.
This product is the tilting tv mount assembly, supplied separately from the equipment it supports. The complete installation also depends on the device, structural or floor conditions, cable routes and any separately specified fixing hardware.
Why this product
Key Benefits
-
Equipment matching
Match the equipment's fixing layout and weight as well as its nominal screen size.
-
Installation planning
Check the supporting construction and the equipment clearances before fixing the assembly.
-
Defined adjustment
Use the adjustment functions documented for this model; a fixed bracket should not be treated as an articulating arm.
-
Project specification
Keep the mount, supported device and any separate accessories identifiable on the quotation for a clear installation scope.
Use cases
Applications
-
Corporate spaces
Position a supported display around the viewing area.
-
Education and training
Specify the mounting location alongside cable and access requirements.
-
Retail and information screens
Choose the installation type around the screen's operating position.
Technical details
Technical Specifications
Compatibility
- Fit Screen Size
- 60″-100″
- Weight Capacity
- 100kg (220lbs)
Adjustment
- Tilt Range
- +15 degrees / -15 degrees, toolless
Build
- Material
- Steel
Dimensions
- Maximum Mounting Hole Spread
- 1000 x 800mm
- Dimensions
- 1140 x 832 x 120mm (44.9″ x 32.8″ x 4.7″)
Installation & Security
- Wall Compatibility
- Solid wall or double-stud, 406mm / 450mm / 600mm spacing
Model & Identification
- Model
- VS01XL-810T
General
- Product Category
- Tilt TV Wall Mount
In the box
What's Included
-
VSYS VS01XL-810T tilting tv mount assembly
Installation
Installation & Mounting
Recommended Equipment
LG 65UR640S 65-inch signage TV matches the listed screen-size, panel-weight and 300×300 mm VESA requirements. Confirm screw depth, clearances and the complete installed load before purchase. It is sold separately.
Installation
Check the device's fixing pattern, the supporting structure and cable clearances. Select anchors and fasteners for the actual substrate and load, then follow the manufacturer's installation sequence.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty and service conditions with the quotation. Optional accessories, finishes and hardware bundles should be itemised rather than assumed.
Support
For a VSYS VS01XL-810T installation enquiry, provide the supported device model, site location, desired position and quantity. Corporate AV can review the mounting scope for Dubai, Abu Dhabi and other UAE locations.
