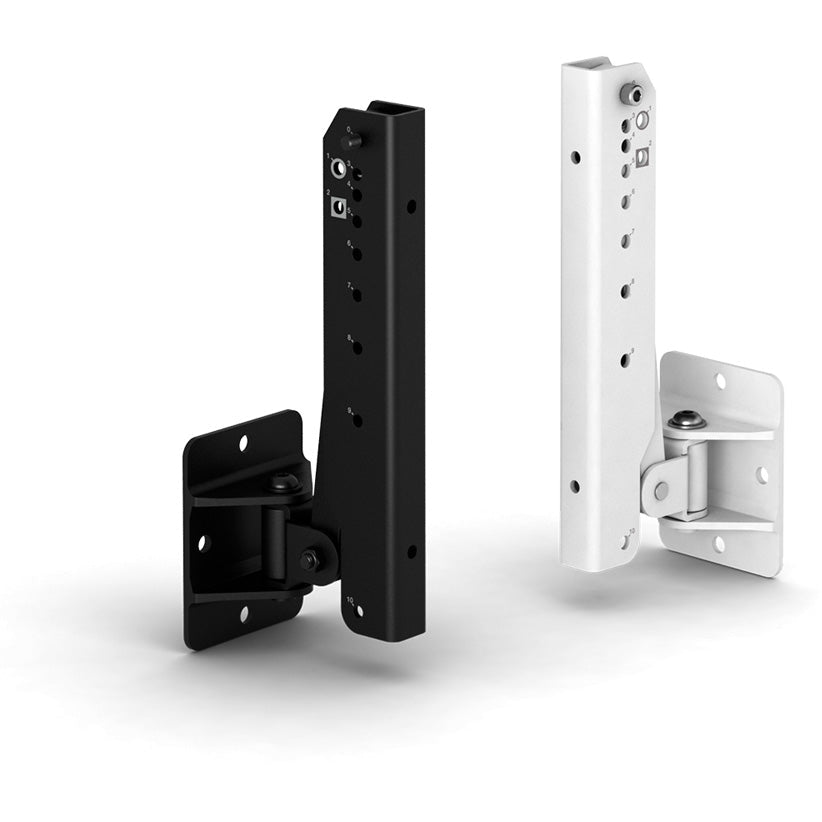

Bose WMB2-MA12/MA12EX Pitch-Lock Upper Bracket - White
Model 318337-0200
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Pitch-Lock Upper Bracket
- Compatible with MA12 and MA12EX
- Finish: White
- Manufacturer part: 318337-0200
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose WMB2-MA12/MA12EX?
The Bose WMB2-MA12/MA12EX in white adds positive pitch retention to a stacked MA12 or MA12EX array. It is the upper bracket in the mounting arrangement and is used alongside the specified main wall bracket, rather than as a standalone wall-mount solution. Corporate AV can include the accessory in an installed-audio proposal for Dubai, Abu Dhabi or elsewhere in the UAE.
This is a pitch-lock upper bracket for MA12 and MA12EX. Loudspeakers and other system equipment are supplied separately. Plan the complete stacked-array mounting arrangement, including the main WB or WMB bracket and the structure. Bose rates this upper bracket for triple stacks; follow the model's installation guide for the complete assembly.
Why this product
Key Benefits
-
Model-specific fit
For MA12 and MA12EX.
-
Defined function
0°–10° positive pitch retention for stacked arrays; use with a WB pitch-only or WMB bi-pivot bracket.
-
Finish selection
White version, manufacturer part 318337-0200.
-
Installation planning
Include the accessory alongside the loudspeaker arrangement and the required supporting hardware.
Use cases
Applications
-
Column speaker installations
Coordinate the accessory with the documented array arrangement.
-
Commercial audio upgrades
Match the existing column model and finish before ordering.
-
Project fit-outs
Keep quantities, mounting and audio-system components itemised on the equipment schedule.
Technical details
Technical Specifications
Compatibility
- Compatible Loudspeakers
- MA12 and MA12EX
Physical
- Finish
- White
- Dimensions (H × W × D)
- 232 × 76 × 97 mm
Model & Identification
- Model
- WMB2-MA12/MA12EX
- Manufacturer Part Number
- 318337-0200
General
- Function
- 0°–10° positive pitch retention for stacked arrays; use with a WB pitch-only or WMB bi-pivot bracket
In the box
What's Included
-
WMB2 upper bracket
-
Six M6 washers
-
One M6 × 35 mm screw
-
Two M6 × 14 mm screws
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose MA12EX modular column Array Loudspeaker, White is a matching column-loudspeaker option. It is sold separately; confirm the complete array, audio configuration and mounting requirements before ordering.
Bose WB-MA12/MA12EX Pitch Only Bracket, Color - White is a compatible main wall bracket used alongside the WMB2 upper bracket. Include all required array hardware and site fixings in the installation design.
Installation
Plan the complete stacked-array mounting arrangement, including the main WB or WMB bracket and the structure. Bose rates this upper bracket for triple stacks; follow the model's installation guide for the complete assembly.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty and replacement-parts conditions on the quotation.
Support
Provide part 318337-0200, the loudspeaker layout, quantity and project location to Corporate AV for a complete equipment proposal.
