d&b audiotechnik

CorporateAV.ae is a supplier of genuine d&b audiotechnik products in the UAE, and this collection lists 355 of them: KSL, XSL, V, Y and T-Series line arrays, A-Series, xS, xC and E-Series loudspeakers, M-Series monitors and subwoofers.

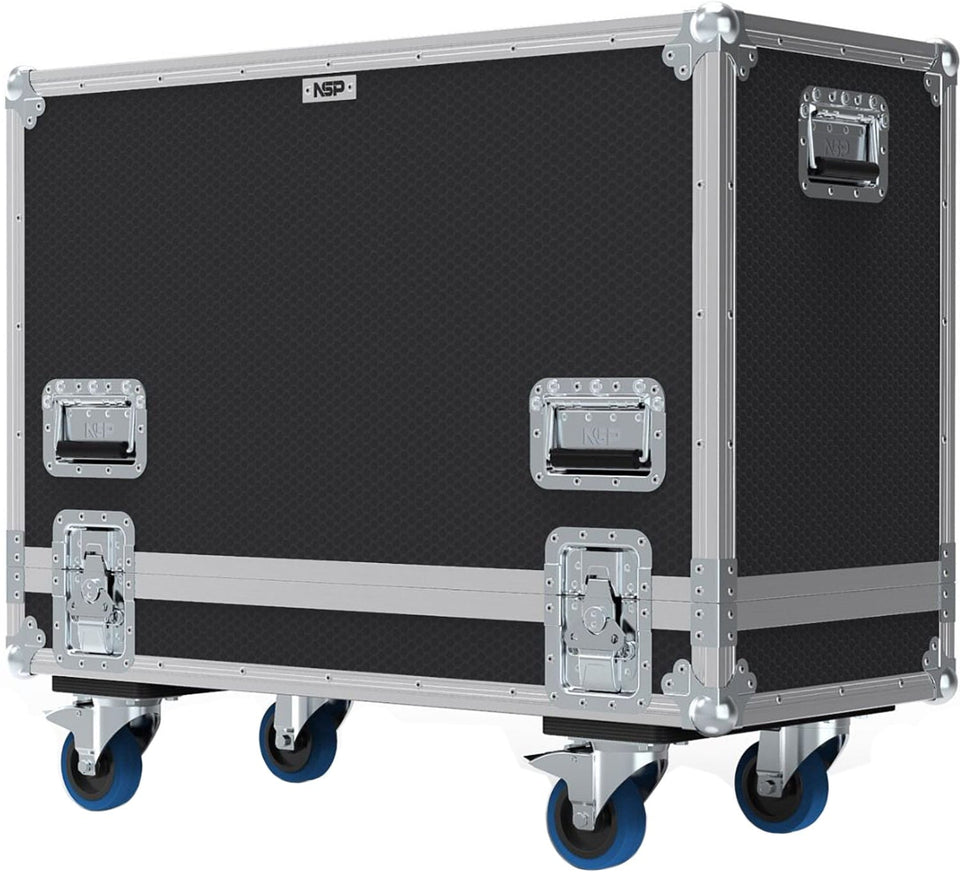

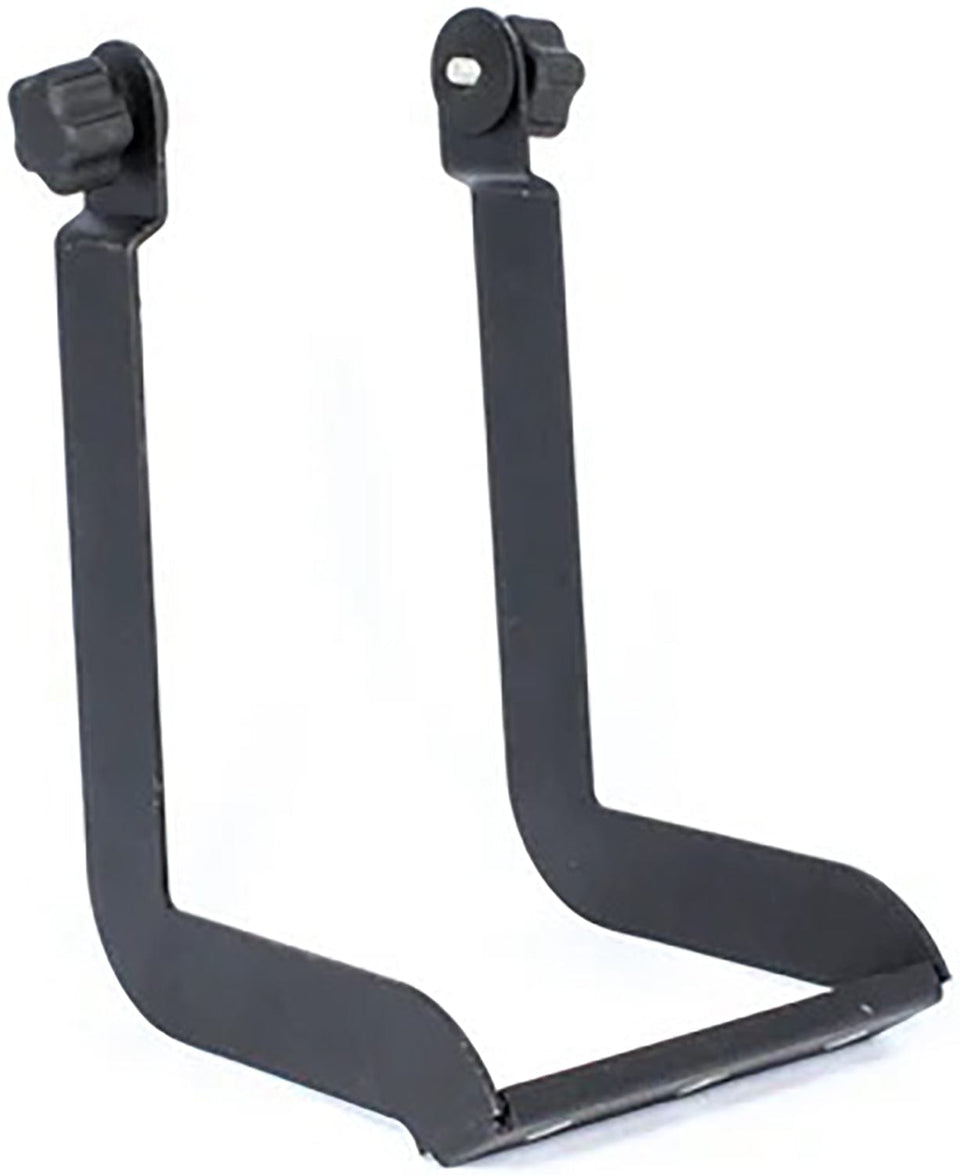

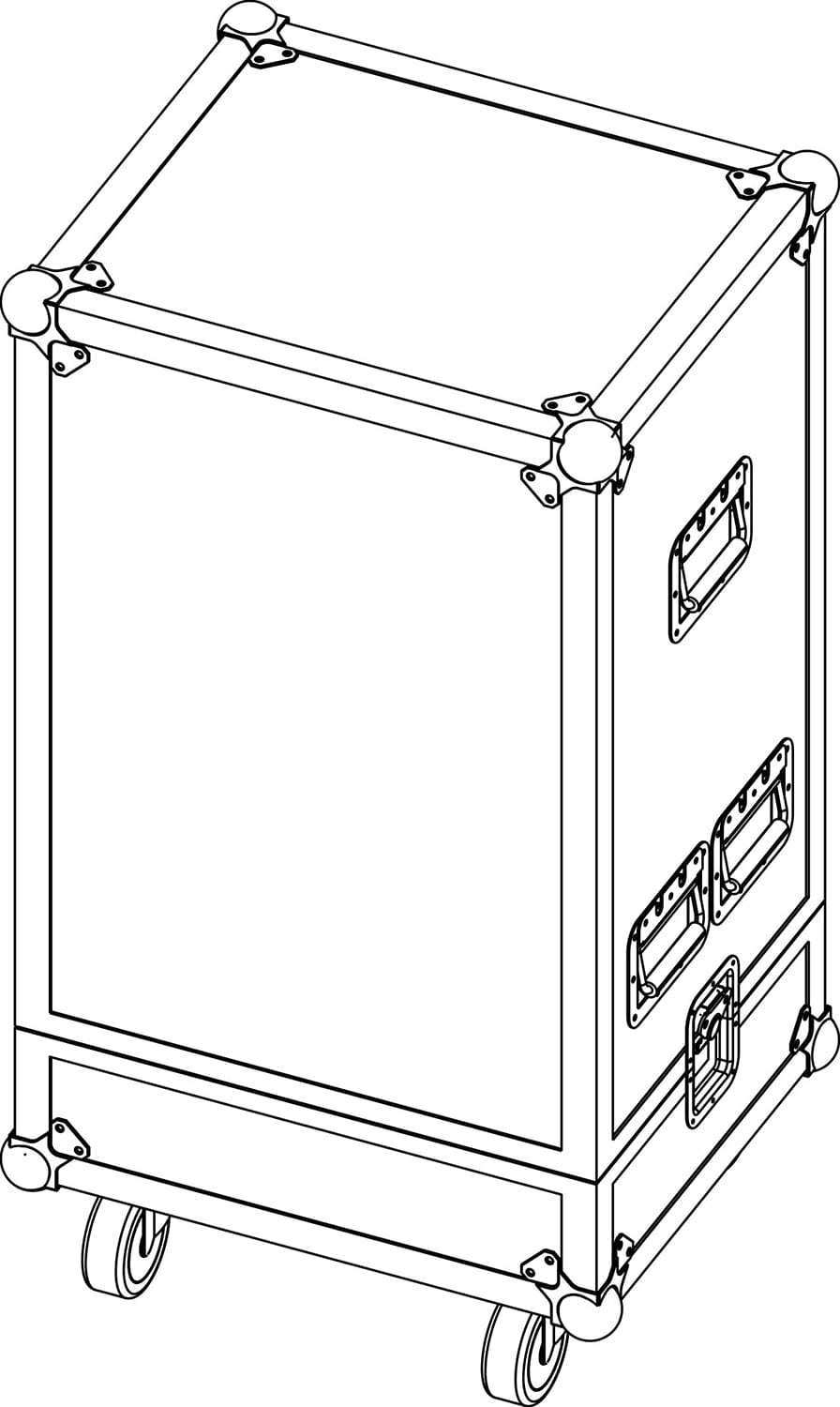

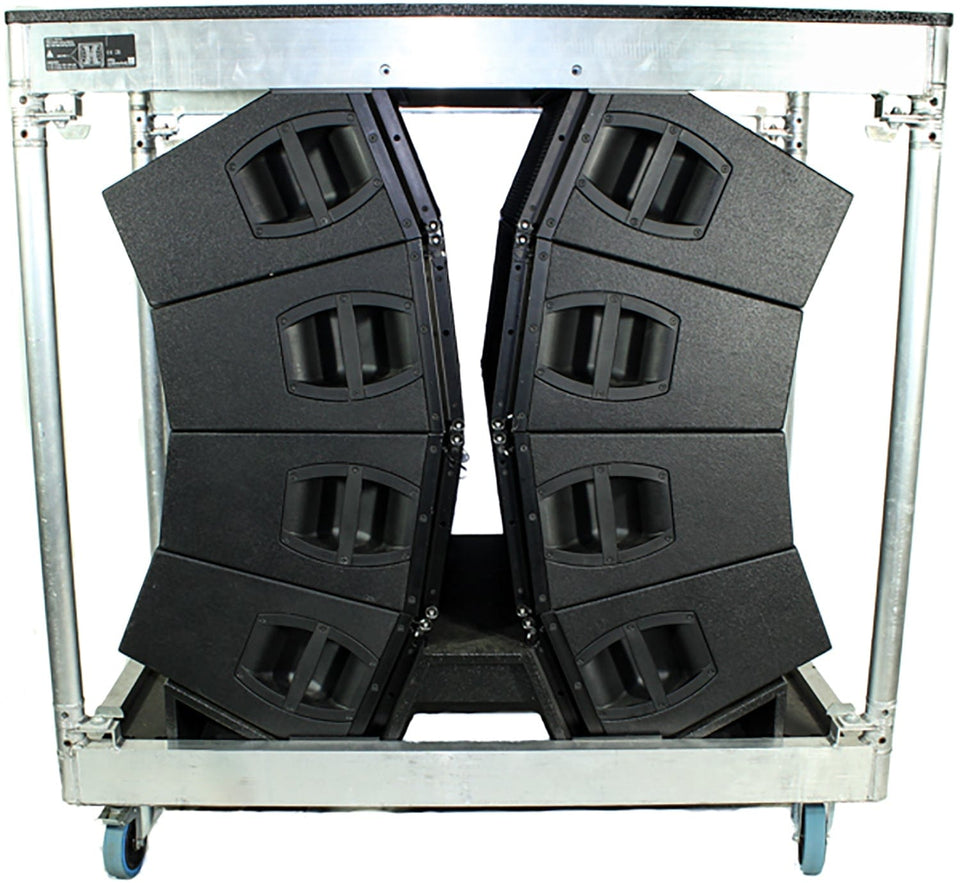

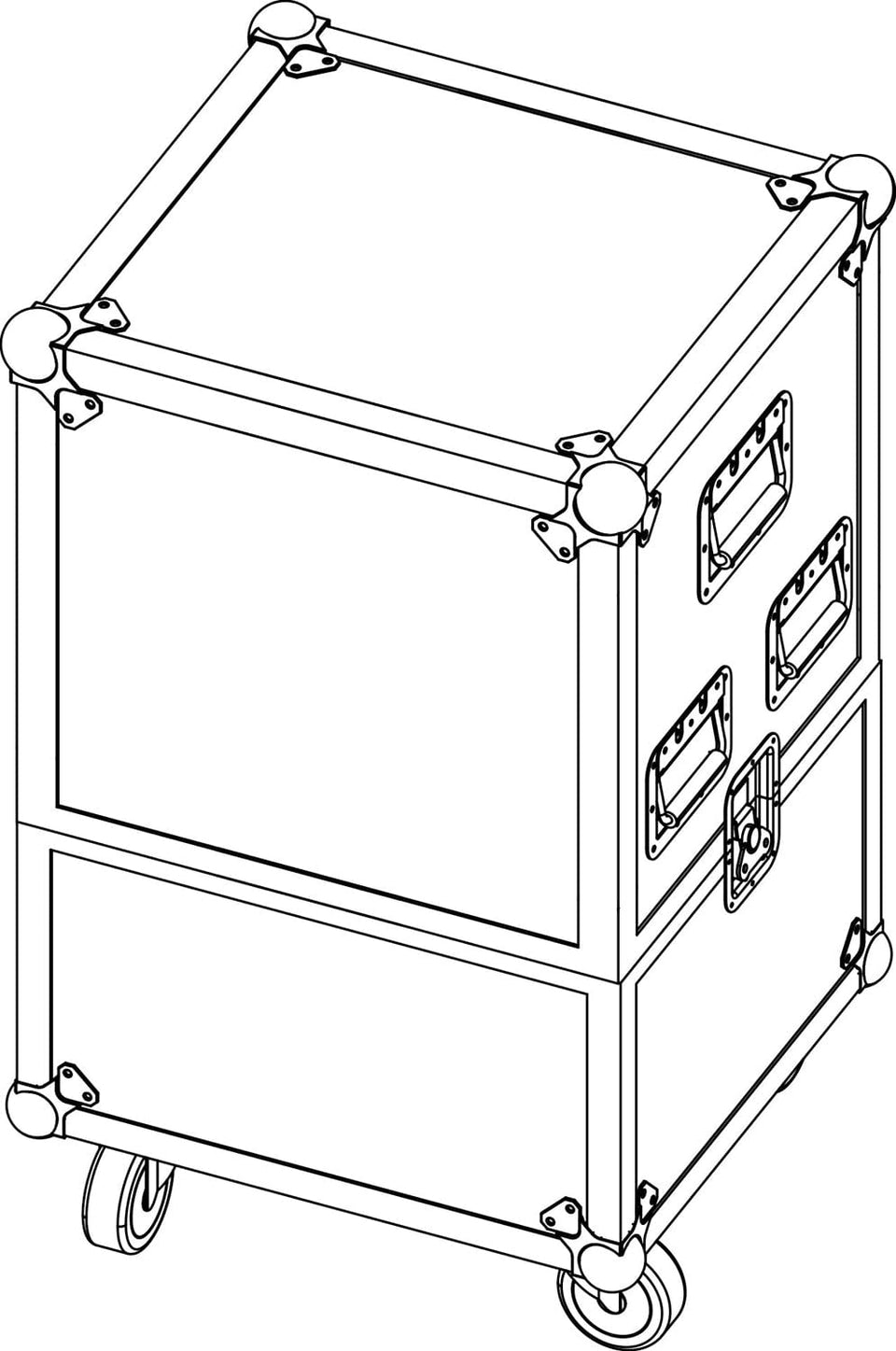

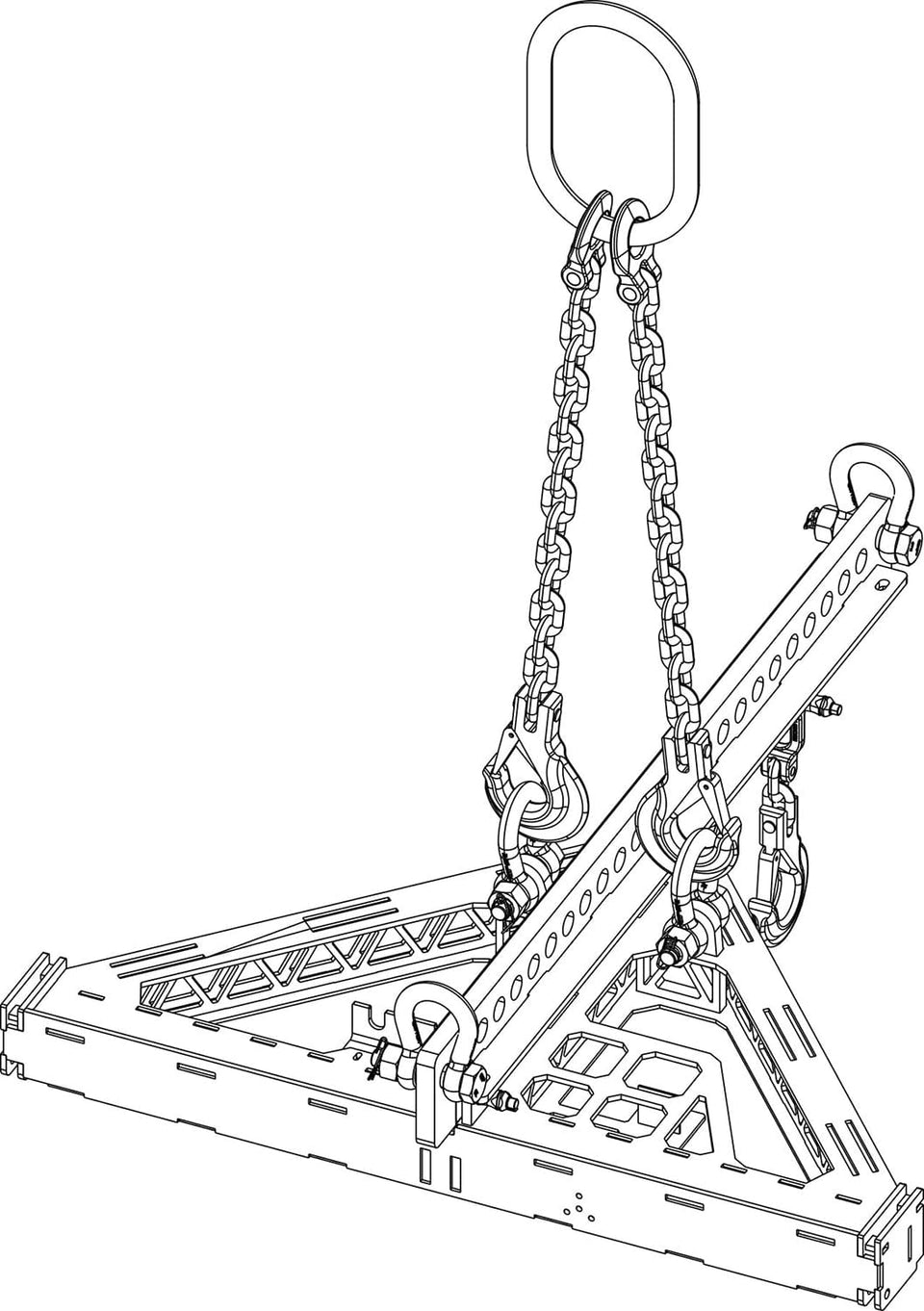

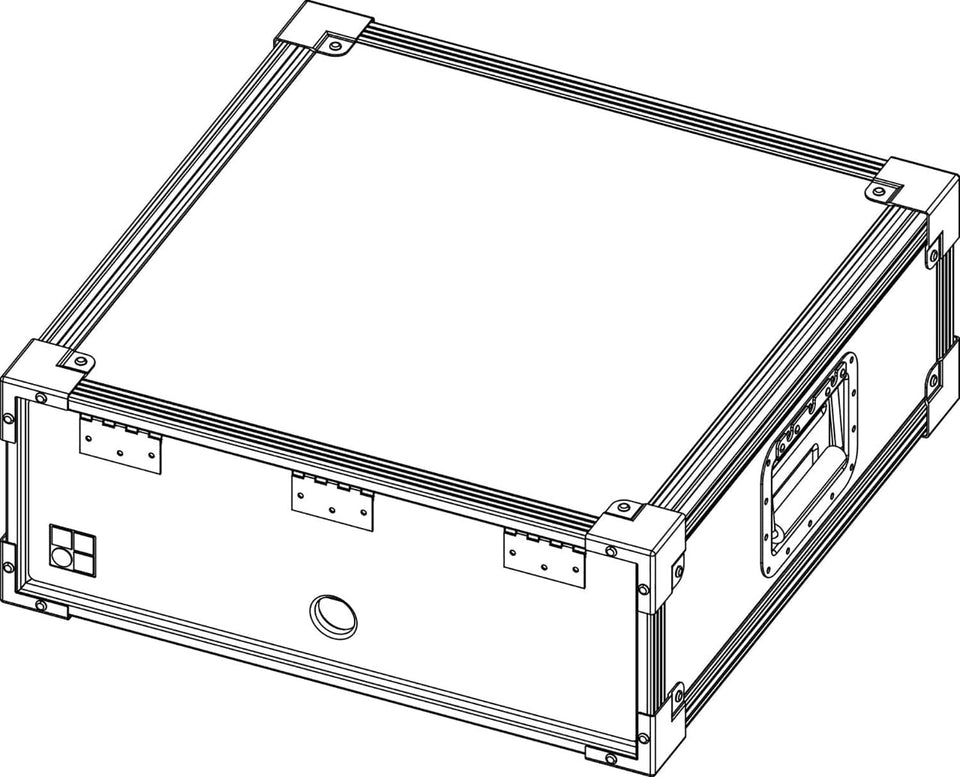

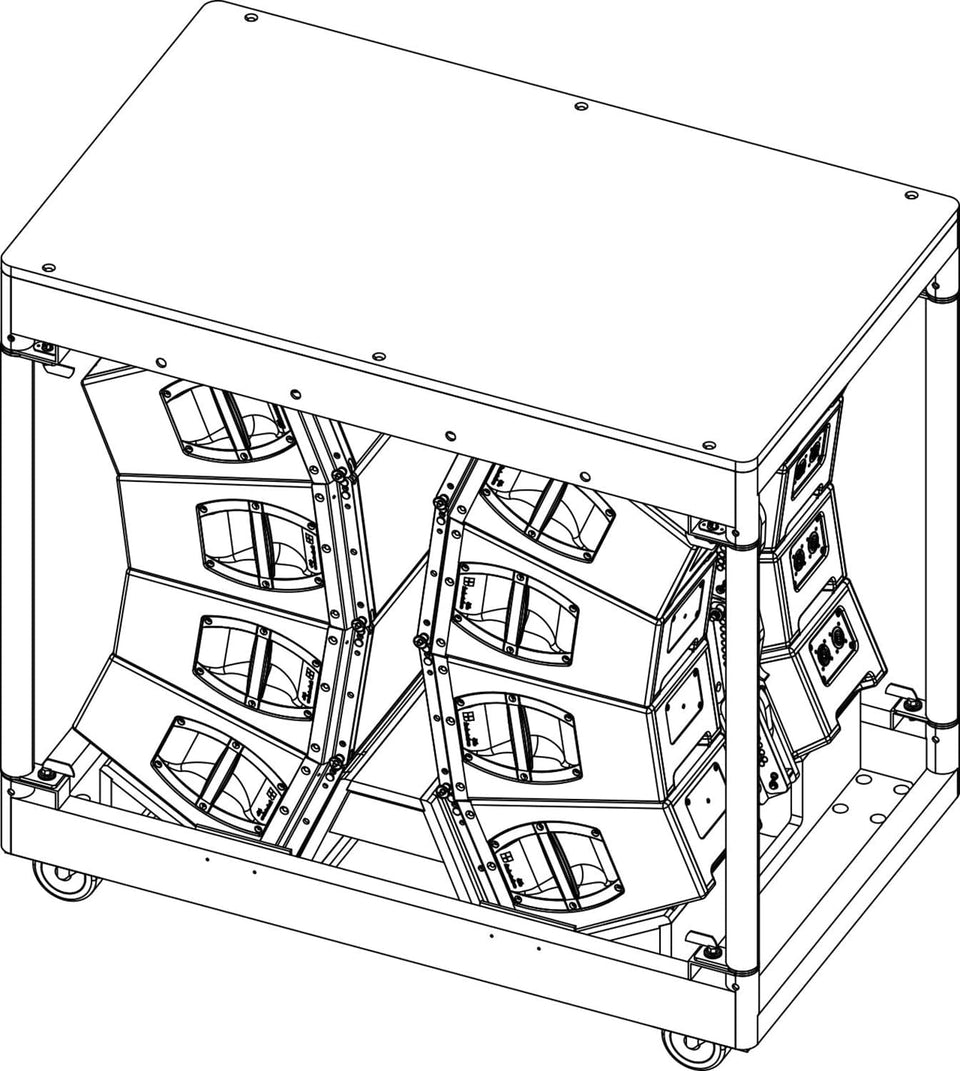

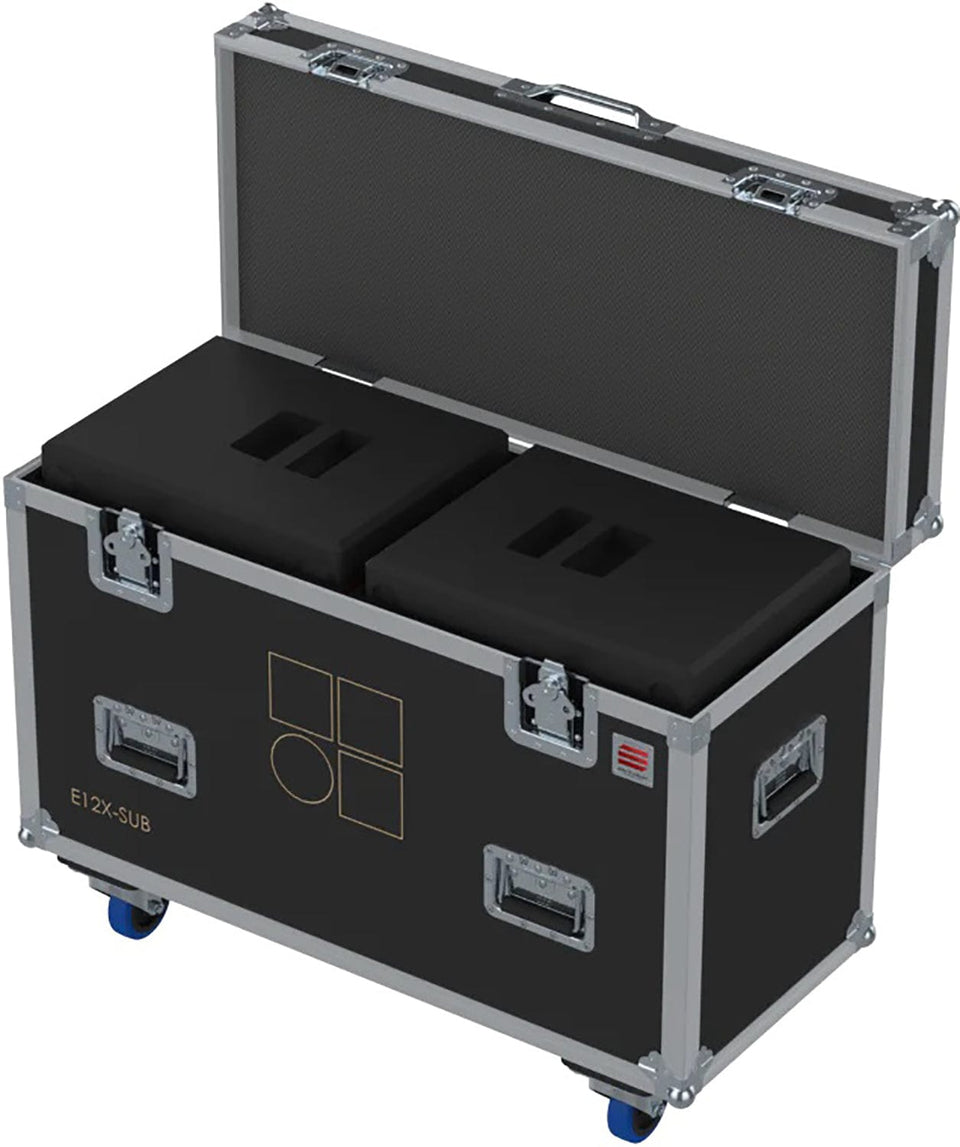

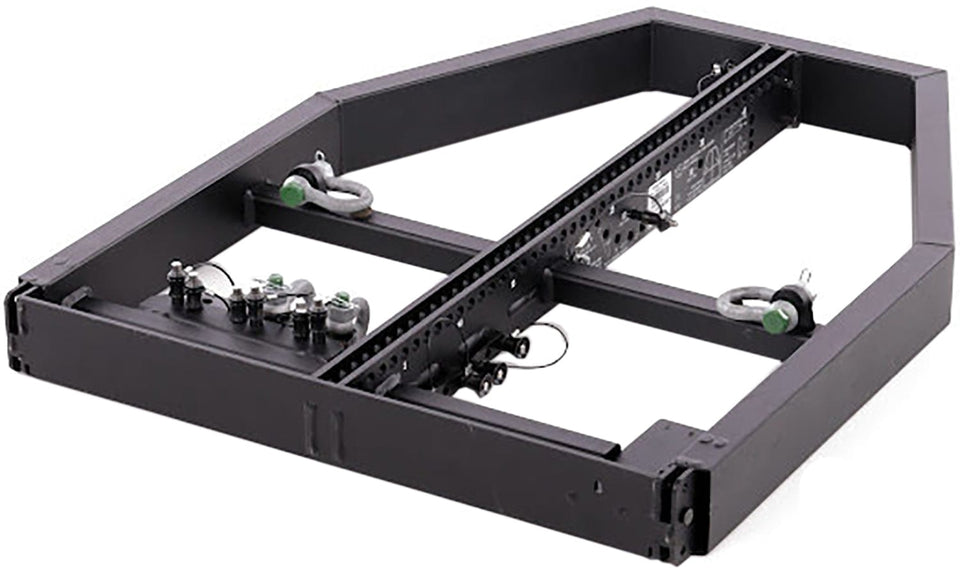

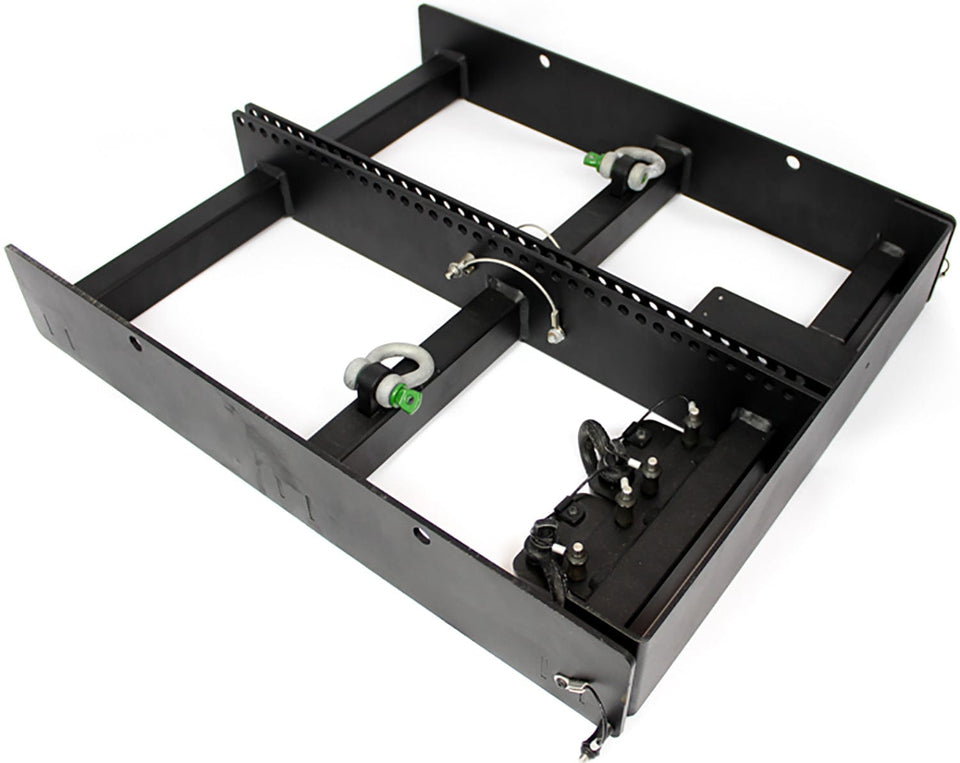

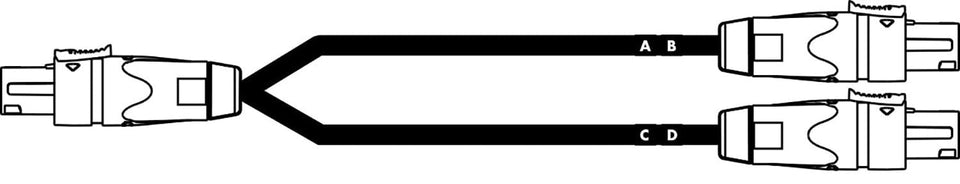

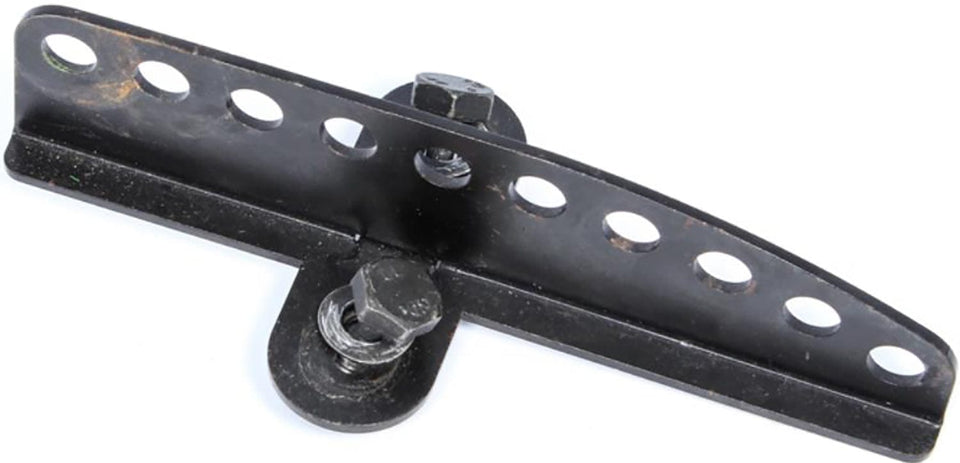

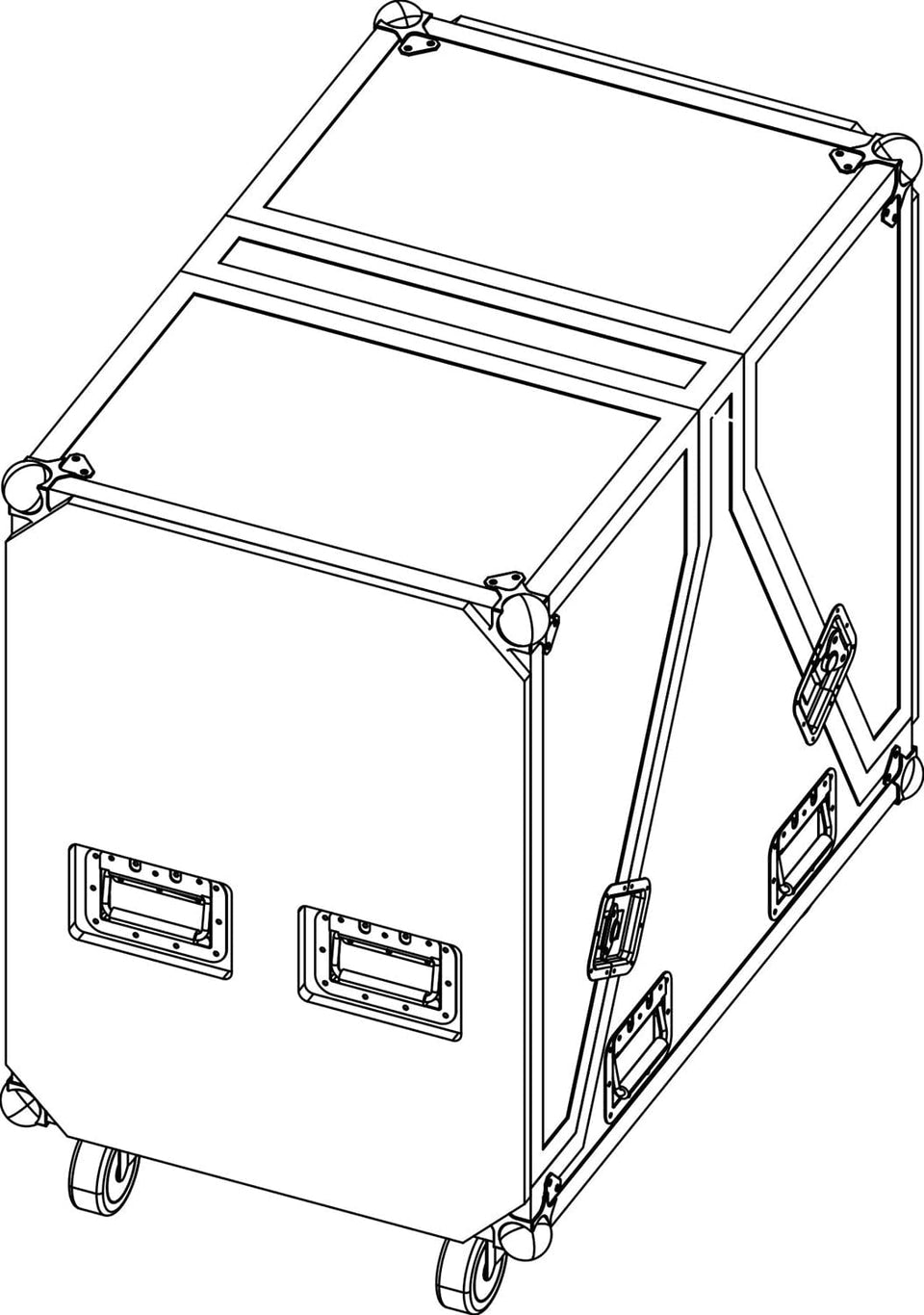

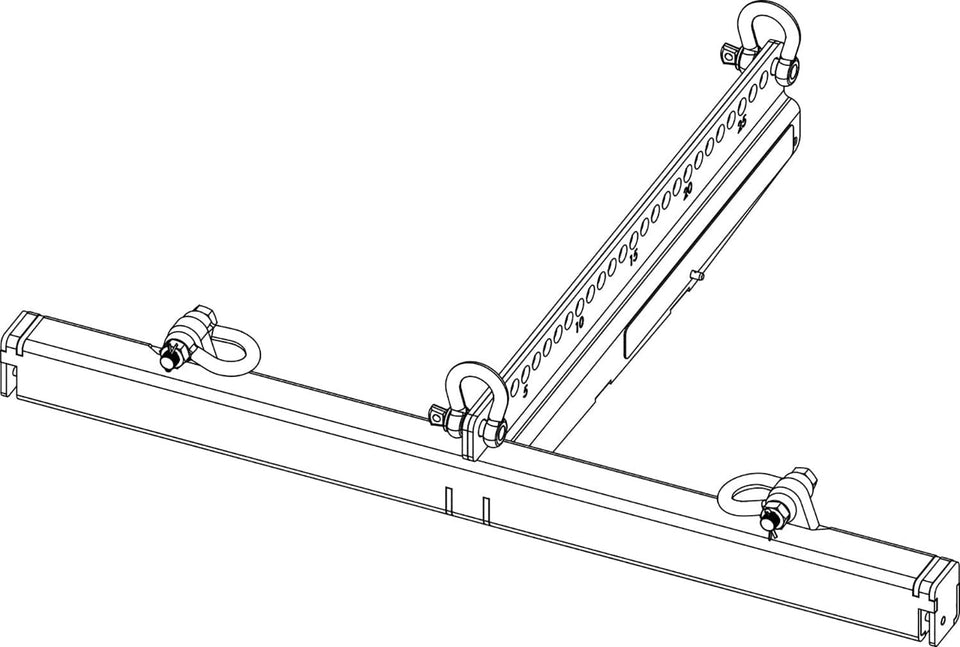

It also lists d&b amplifiers (5D, 10D, 40D, D40, D80 and D90), touring racks, the DS10 audio network bridge, and d&b flying frames, cables and cases.

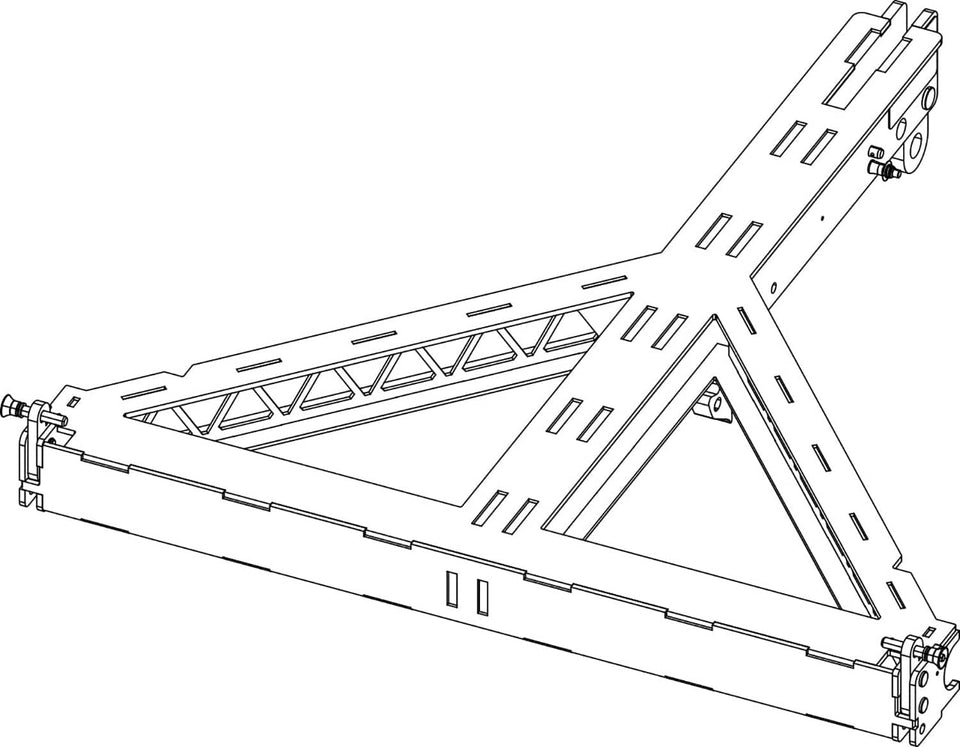

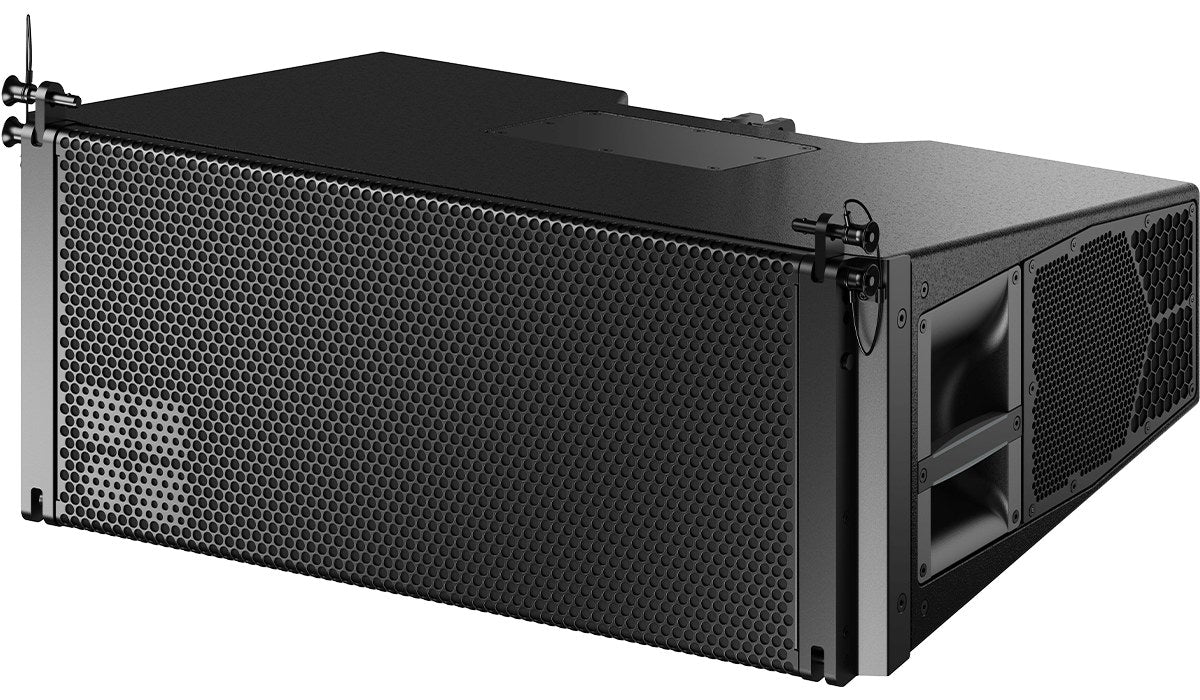

Choose by venue size. For large venues, the d&b KSL8 is a 3-way module with 145 dB maximum SPL at 58 kg, and the XSL8 reaches 141 dB at 39 kg. Both have 80° horizontal coverage.

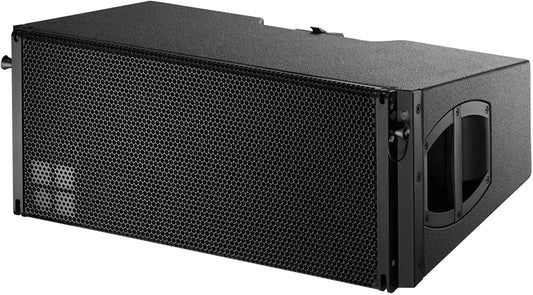

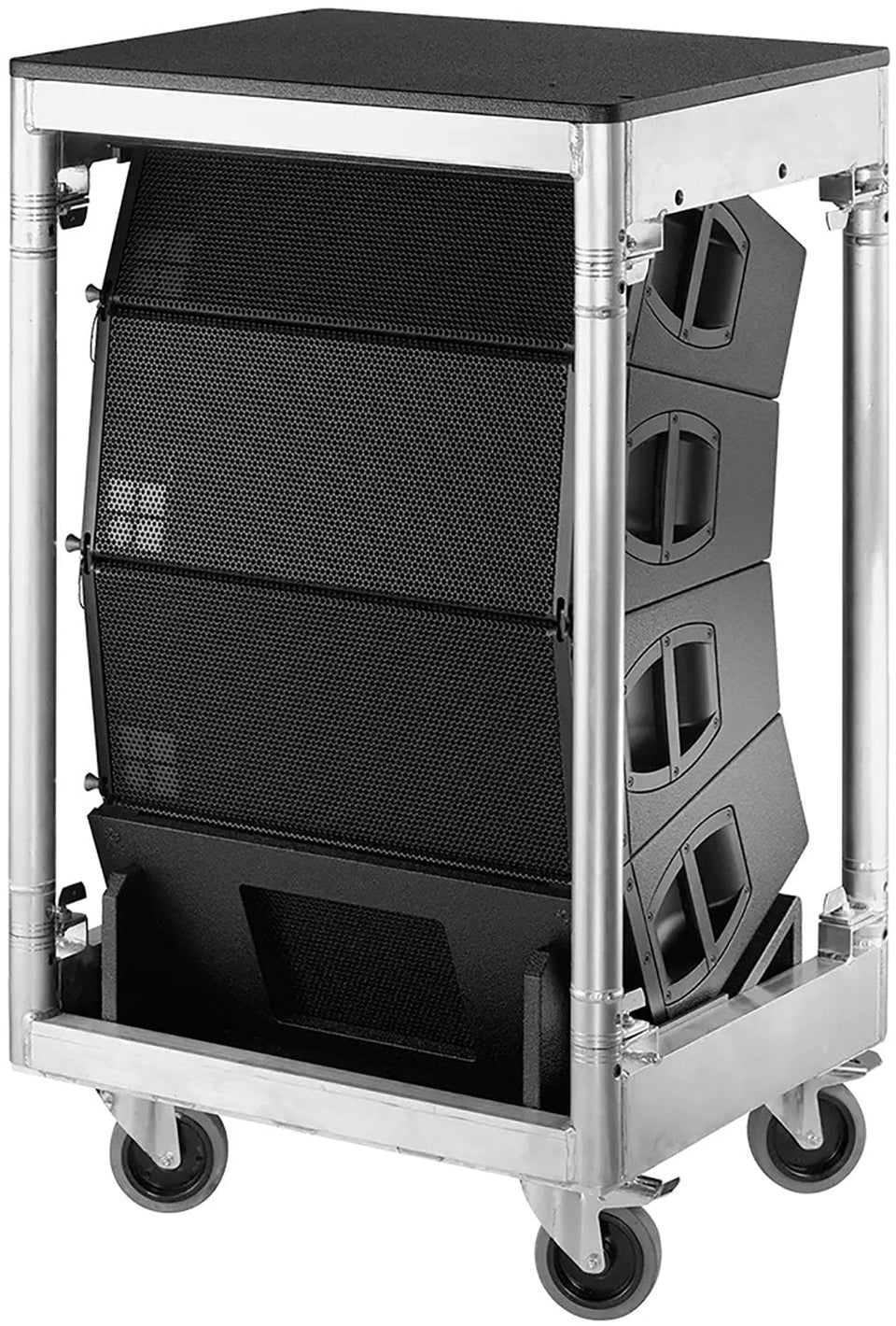

For mid-size venues, the d&b Y8 reaches 139 dB at 20 kg, and the T10 at 11 kg works as a line array with 105° coverage or as a point source. d&b's simulation software confirms the choice for each venue.

d&b designs its speakers and amplifiers as one system: the amplifiers carry loudspeaker presets for current d&b cabinets, with protection and EQ matched to each model. d&b lists which amplifiers drive each speaker.

In this collection, the 5D (4 × 600 W, 1RU half width) suits small installations, the 40D and D40 (4 × 2,400 W into 4 Ω) suit medium systems, and the D80 (4 × 4,000 W into 4 Ω) suits large arrays.

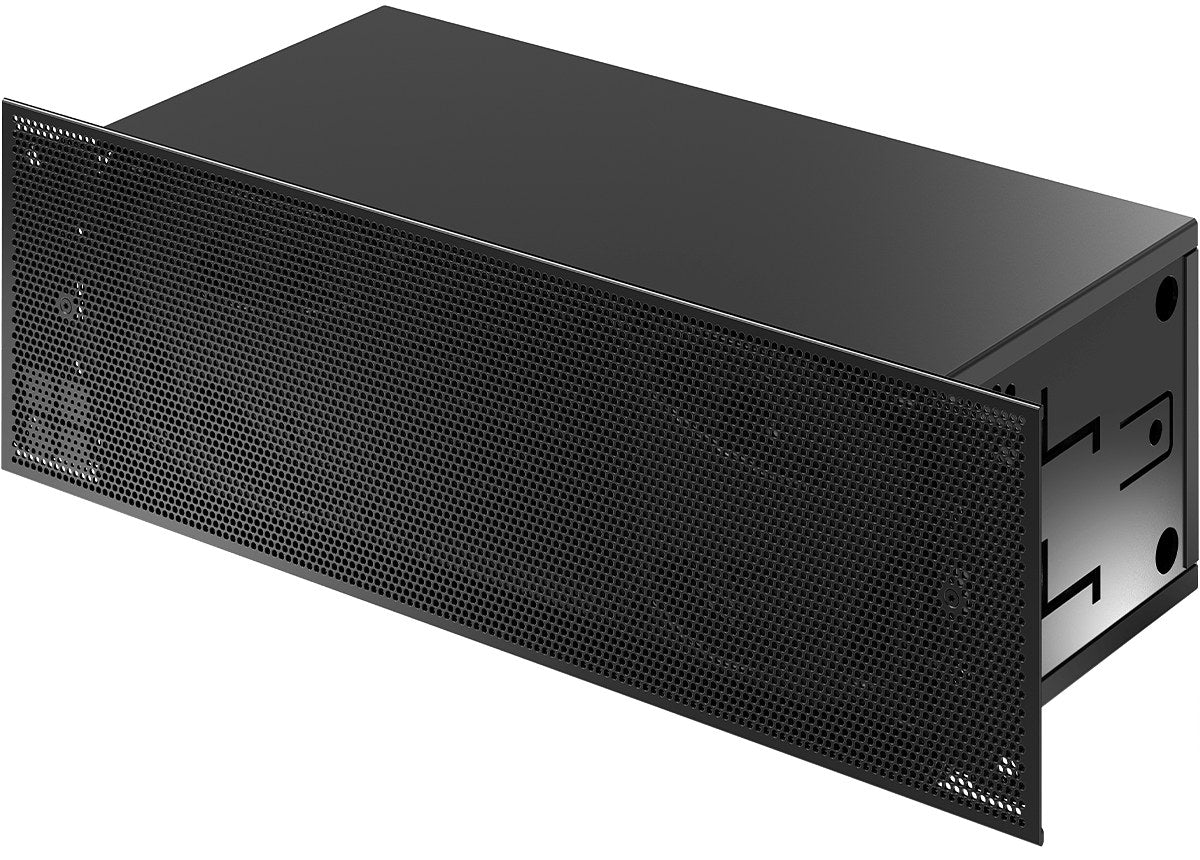

The d&b 44S is an ultra-compact 2-way loudspeaker for installations where speakers should be discreet, such as lobbies, restaurants and meeting spaces. It has 2 × 4.5-inch and 2 × 1.25-inch drivers, 90° × 30° rotatable coverage, 123 dB maximum SPL and weighs 3.6 kg.

It is flush mountable, and this collection lists the flush-mount version and installation boxes. It runs on its own or with d&b subwoofers.

The d&b 24C is an installation cardioid column loudspeaker with 6 × 4-inch and 6 × 1.1-inch drivers, covering 90° × 20° up to 126 dB and weighing 9 kg. Its narrow vertical pattern and cardioid design keep sound off reflective surfaces.

It suits speech in reverberant spaces such as halls and places of worship. This collection lists the 24C in black, white and weather-resistant versions, plus the 24C-E extension.

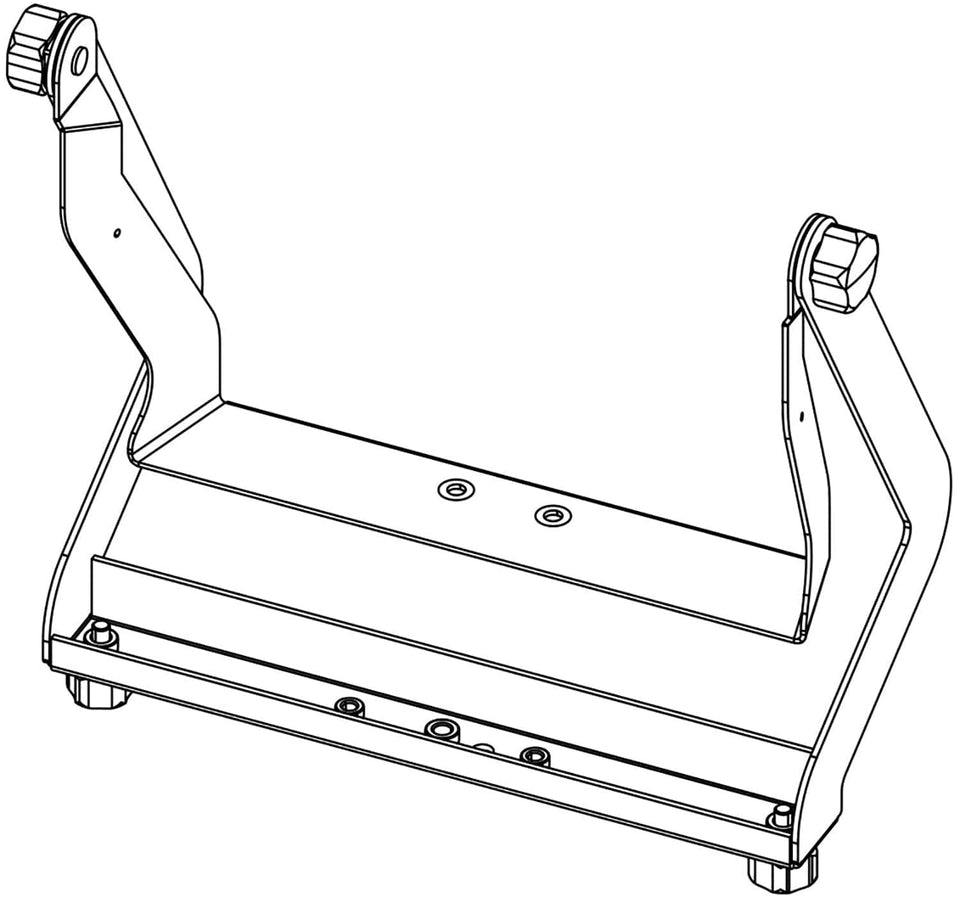

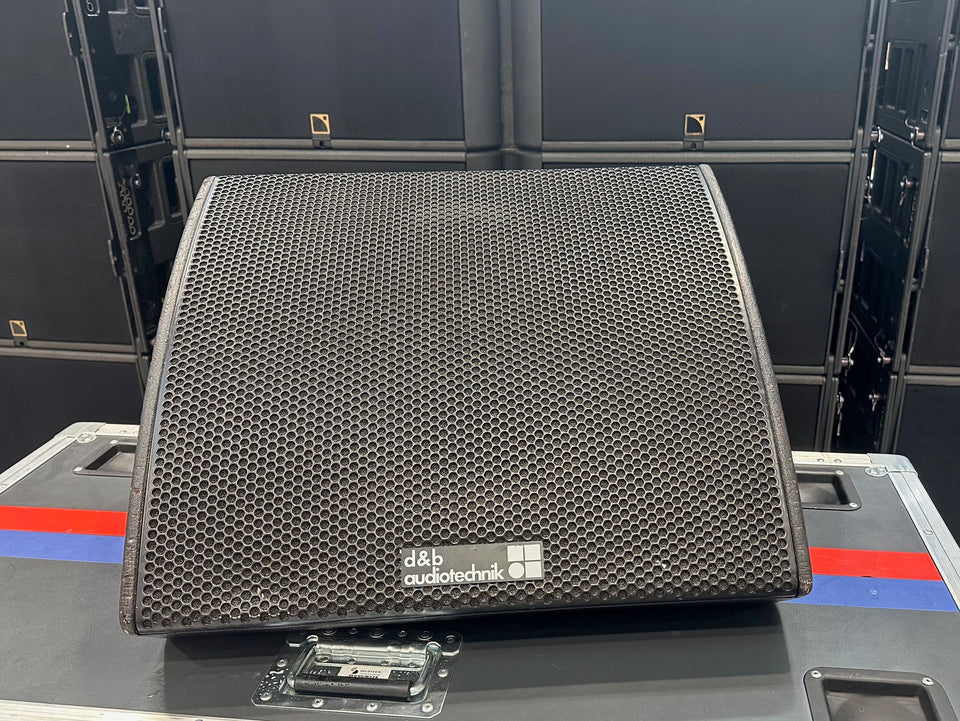

The collection includes d&b M-Series stage monitors such as the M4, a 2-way wedge with a 15-inch driver and a 1.3-inch compression driver, 50° × 70° rotatable coverage and 140 dB maximum SPL, weighing 20 kg.

It also lists the M2 and M6 monitors. Like other d&b loudspeakers, the monitors run from d&b amplifiers with matching presets.

The d&b DS10 links a Dante or AES67 audio network to d&b amplifiers over AES3 digital audio. It has 16 AES3 output channels, 4 AES3 input channels and an integrated 5-port network switch.

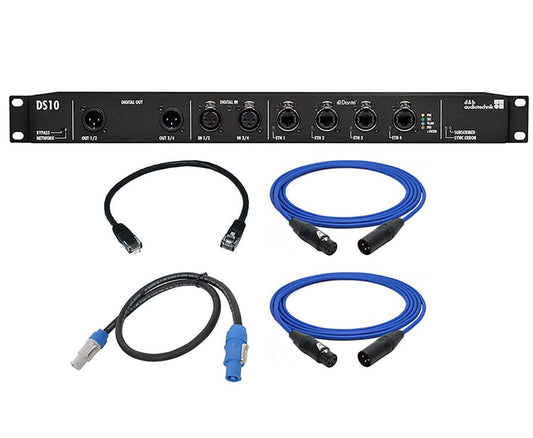

It lets a networked console or processor feed a d&b system without analog lines. This collection also lists a DS10 rack upgrade kit and touring racks that include an audio network bridge.

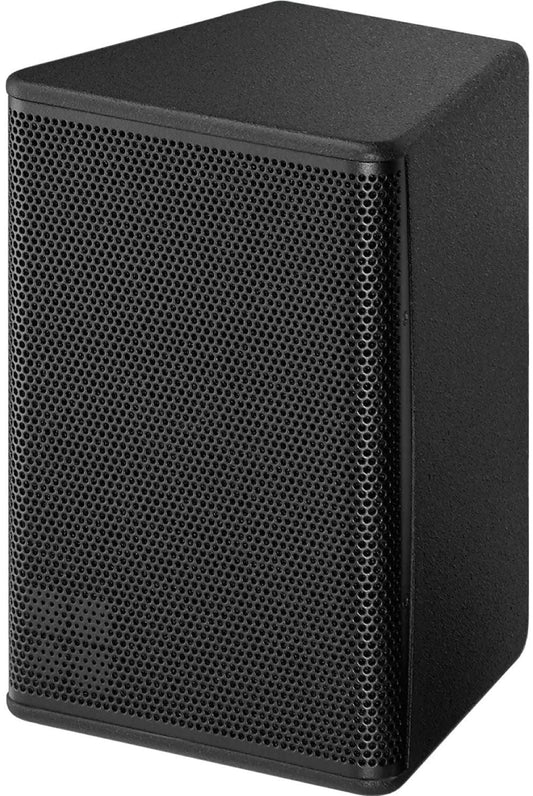

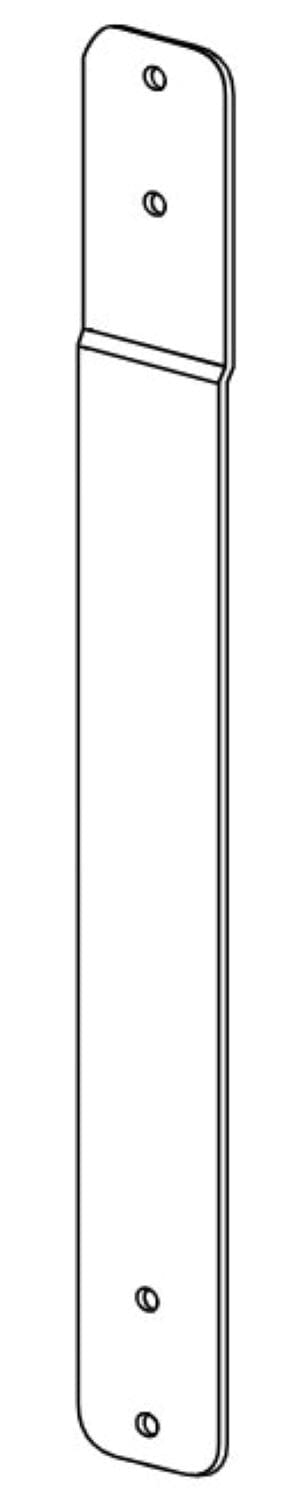

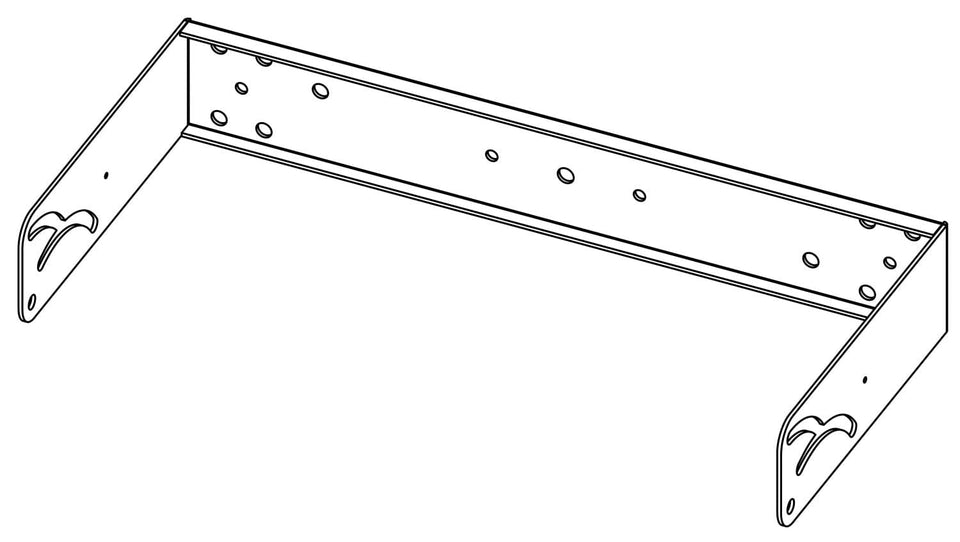

Yes. This collection lists weather-resistant versions of several d&b installation models, including the 10S, 10S-D, 24C and 24C-E columns, E8 and the 12S, 18S, 21S and 27S subwoofers.

d&b describes weather-resistant xS-Series installations outdoors. For UAE terraces, pools and outdoor venues, choose the weather-resistant version and protect cable entries.

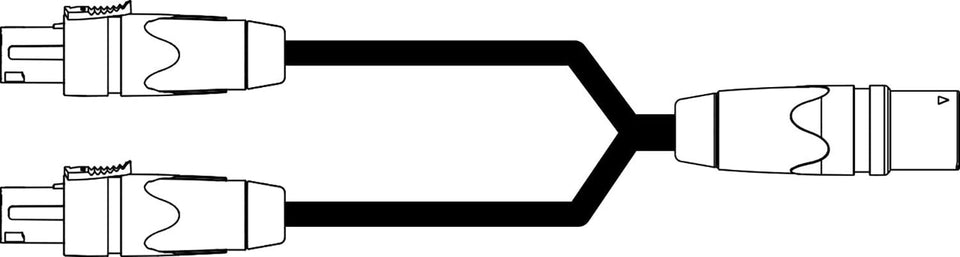

They differ in connectors: NL4 versions carry NL4 connectors, and NLT4 F/M versions carry NLT4 female and male connectors. d&b lists them as separate article numbers, for example Z0707.001 and Z0707.002 for the Y8.

In this collection, many models appear in both versions, such as the Y8, V12, AL60 and E8, so choose the version that matches the cabling and the other cabinets in the system.

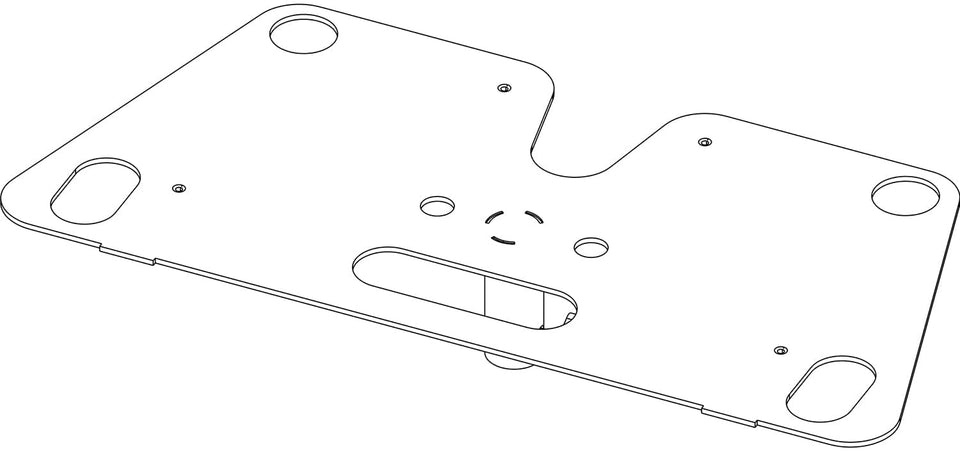

The d&b AL60 is an A-Series loudspeaker with 2 × 10-inch drivers and a 1.4-inch compression driver, covering 60° × 30° from 60 Hz to 18 kHz up to 139 dB, and weighing 23 kg.

This collection lists the AL60 and AL90 in NL4 and NLT4 F/M connector versions. Like other d&b loudspeakers, they run from d&b amplifiers with matching presets.
