Bose AMM112 U-Bracket for AMM112 Loudspeaker, Wall and Ceiling Mount
Model 843364-0010
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Fits the M10 × 20 mm side inserts of one Bose AMM112
- Rotates to set the speaker's pitch angle
- Two-point flat-surface or single-point center attachment
- 3.8 kg, 104 × 472 × 390 mm (H × W × D), black
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose AMM112 U-Bracket?
The Bose AMM112 U-Bracket is the dedicated yoke mount for one Bose AMM112 multipurpose loudspeaker, fixing to its M10 × 20 mm side inserts and rotating to set the pitch angle. It weighs 3.8 kg and attaches to walls or ceilings at two points, or to a truss or lighting-pole kit at one point, for installers fitting AMM112 speakers in venues across the UAE.

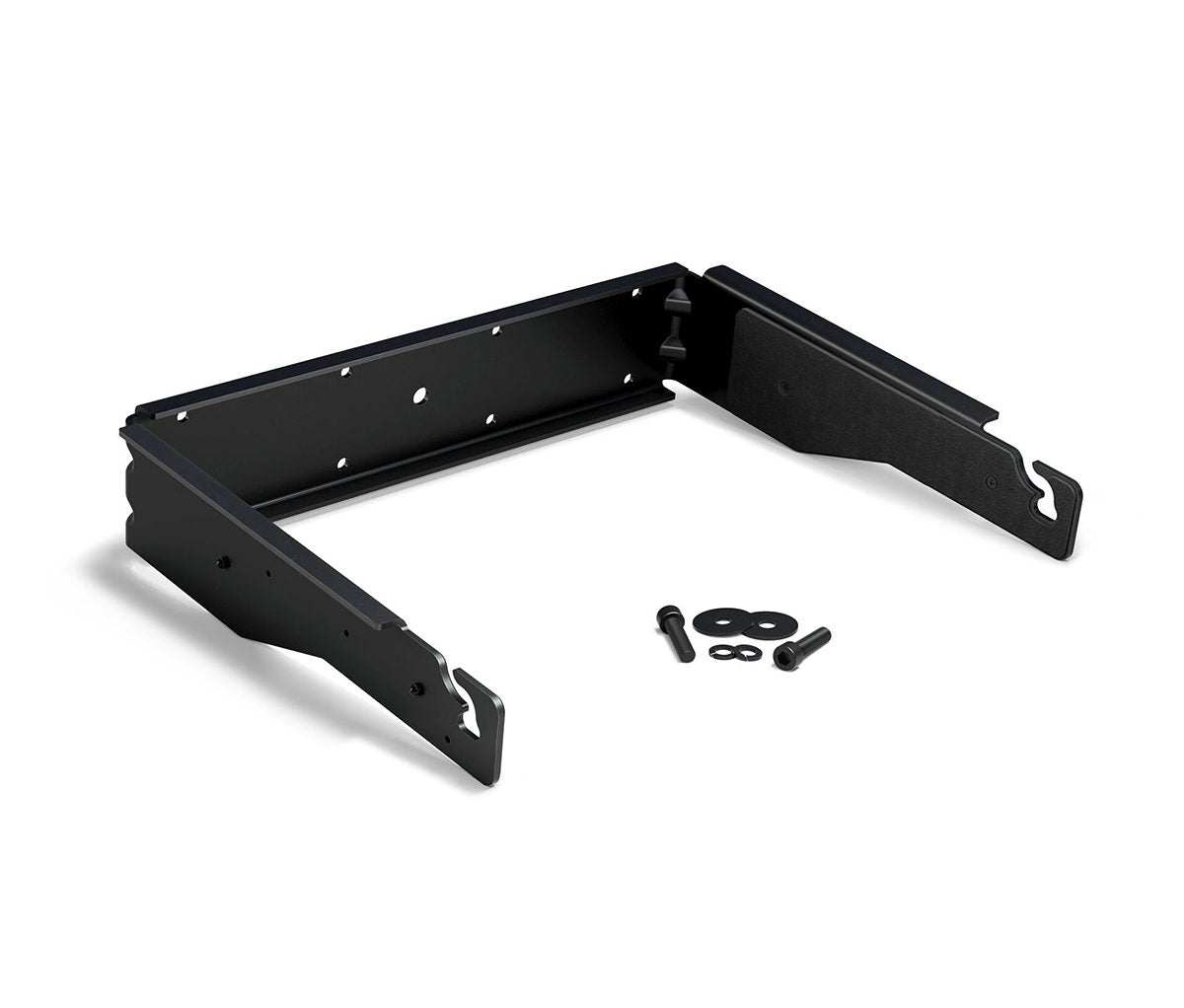

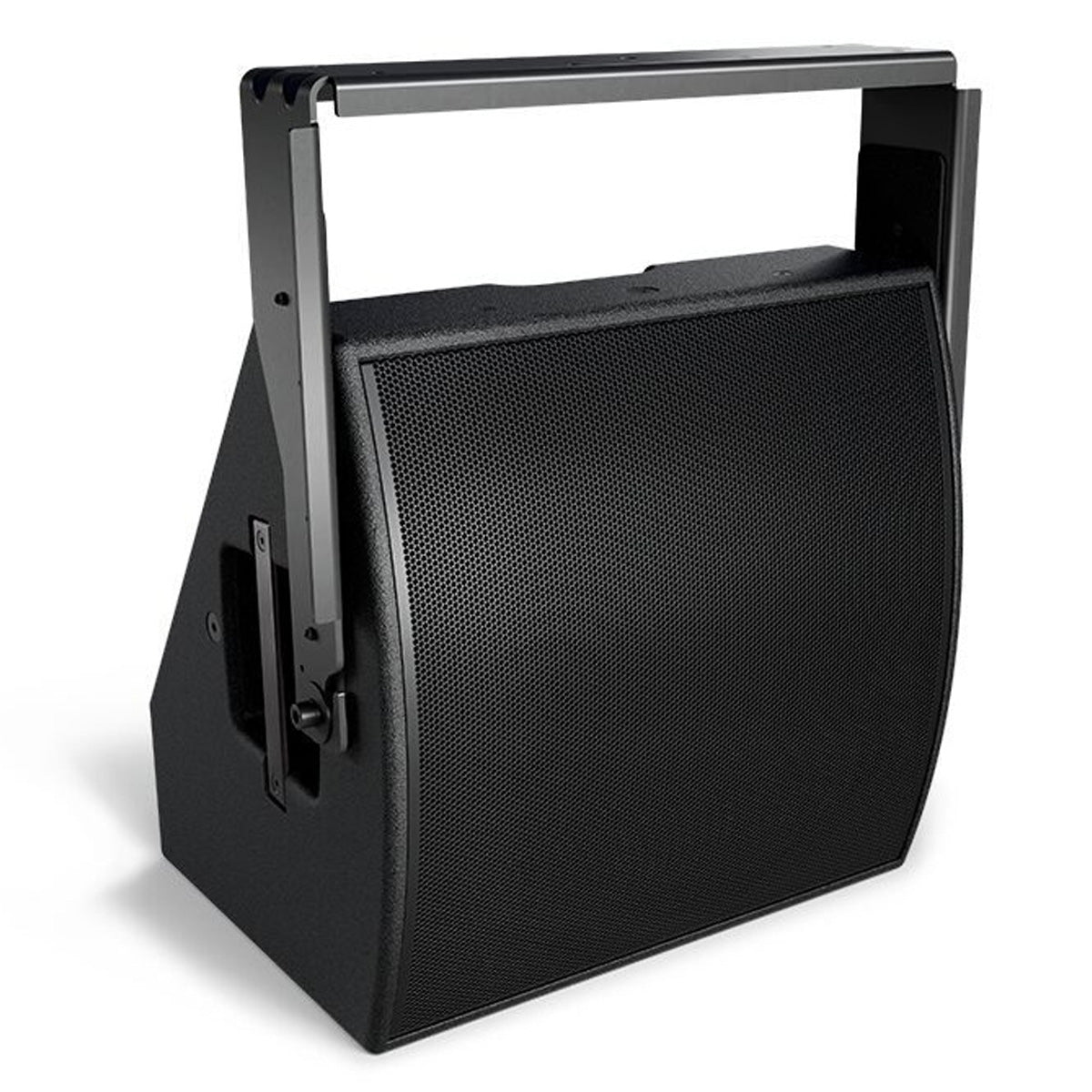

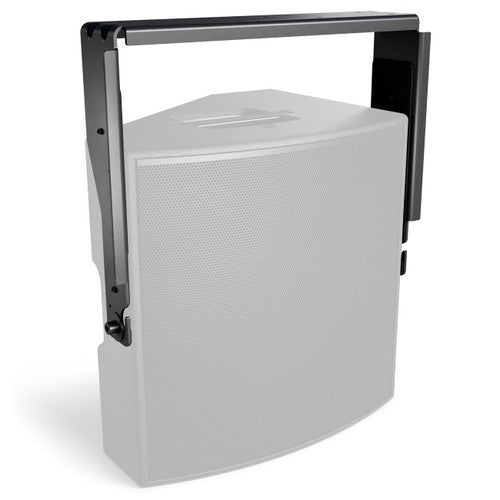

The Bose AMM112 U-Bracket is a Bose Professional accessory made for a single AMM112 loudspeaker. Its rigid U-shaped frame holds the speaker by its side inserts and lets it rotate through a range of pitch angles, and it ships with the screws and washers needed to attach it to the speaker.
Why this product
Key Benefits
-
Adjustable pitch
The speaker rotates within the bracket, so it can be aimed down or up to suit the listening area.
-
Two attachment methods
The rigid frame fixes to a flat wall or ceiling at two points, or hangs from a truss or third-party lighting-pole kit through its center mounting hole.
-
Model-specific fit
The bracket matches the M10 × 20 mm threaded inserts on the sides of the AMM112 loudspeaker.
-
Fasteners included
Two M10 × 20 mm screws with flat and lock washers come in the box for fixing the speaker to the bracket.
Use cases
Applications
-
Fixed installations
Holds an AMM112 on a wall or ceiling in halls, auditoriums and houses of worship.
-
Truss and stage rigging
Single-point attachment lets the speaker hang from a truss or lighting pole for events and stages.
Technical details
Technical Specifications
Compatibility
- Compatible With
- Bose AMM112 multipurpose loudspeaker (one unit)
- Thread Fit
- M10 × 20 mm side inserts
Physical
- Mounting Options
- Two-point to wall or ceiling; single-point via center hole to truss or lighting-pole kit
- Dimensions
- 104 × 472 × 390 mm (H × W × D)
- Net Weight
- 3.8 kg (8.4 lb)
- Color
- Black
Model & Identification
- Model
- AMM112 U-Bracket
General
- Pitch Adjustment
- Rotating yoke for various pitch angles
- Installation Environment
- Indoor; not for permanent outdoor installation
- Part Number
- 843364-0010
In the box
What's Included
-
1 × Bose AMM112 U-Bracket
-
2 × M10 × 20 mm screws
-
2 × M10 flat washers
-
2 × M10 lock washers
-
1 × installation guide
Installation
Installation & Mounting
Recommended Loudspeaker

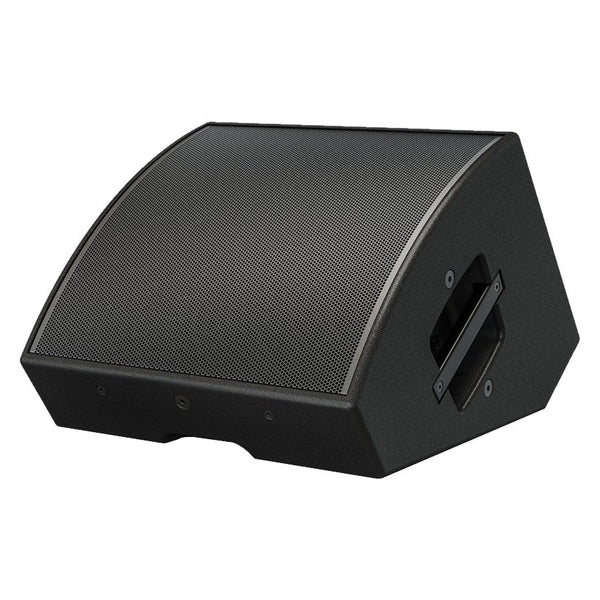

The Bose AMM112 12-Inch Multipurpose Passive Speaker is the only speaker this bracket is made for. For a flown, level hang from one point instead of an aimed yoke mount, Bose Professional offers the AMM Suspension Bracket.
Ownership and support
Ownership & Support
Support
For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.
