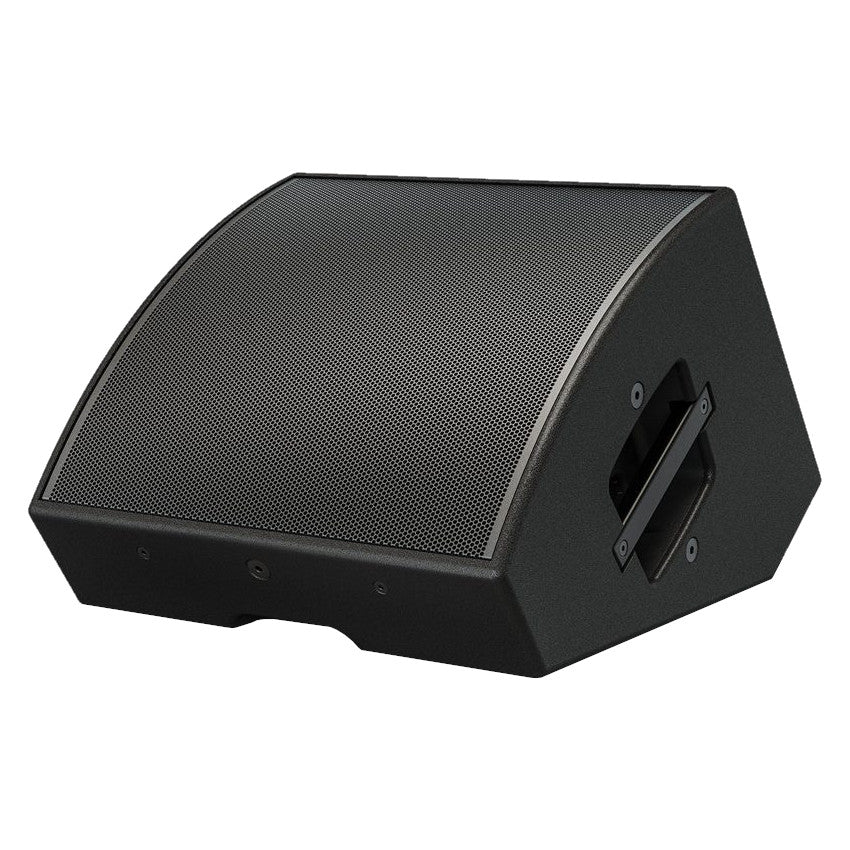

Bose AMM112 Multipurpose Passive Speaker
Model 843161-0110
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Woofer: 12 inches
- Compression driver: 3 inches
- Coverage: 110° × 60°
- Frequency range (-10 dB): 60 Hz–20 kHz
- Continuous power handling, passive: 300 W
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose AMM112 Multipurpose Passive Speaker?
Bose AMM112 is a passive coaxial PA speaker for front-of-house, monitor or fill duties. Its 12-inch woofer and 3-inch compression driver provide 110° × 60° coverage in a compact, transportable cabinet. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
AMM112 needs external amplification and the appropriate Bose loudspeaker settings. Choose the cabinet position, speaker quantity and bass reinforcement for the intended audience area.
- Frequency range (-10 dB): 60 Hz–20 kHz.
- Continuous power handling, passive: 300 W.
Use cases
Applications
-
Presentations and live PA
-
Stage monitoring and fill
-
Fixed venue reinforcement
Technical details
Technical Specifications
System
- Woofer
- 12 inches
- Compression driver
- 3 inches
- Woofer
- 12 inches.
- Compression driver
- 3 inches.
Frequency
- Frequency range (-10 dB)
- 60 Hz–20 kHz
Performance & Coverage
- Coverage
- 110° × 60°
- Coverage
- 110° × 60°.
Power
- Continuous power handling, passive
- 300 W
- Nominal impedance, passive
- 8 Ω
Physical
- Dimensions (H × W × D)
- 457 × 457 × 383 mm
- Weight
- 22.0 kg
Environmental
- Environmental rating
- IP43 in front-of-house position only
General
- Model
- AMM112 Multipurpose Passive Speaker
- Manufacturer part number
- 843161-0110
In the box
What's Included
-
One AMM112 loudspeaker
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment

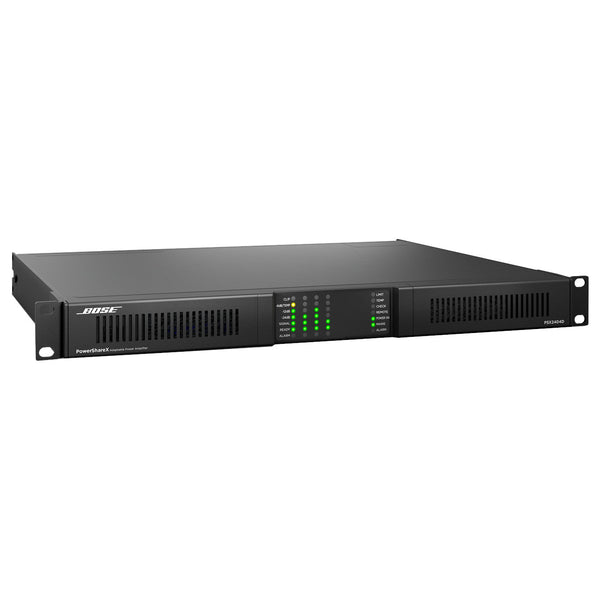

Bose PowerShareX PSX2404D Networkable Power Amplifier. Specify the amplifier output mode, channel allocation, gain, manufacturer loudspeaker preset and limiting for the complete system. The amplifier is sold separately.

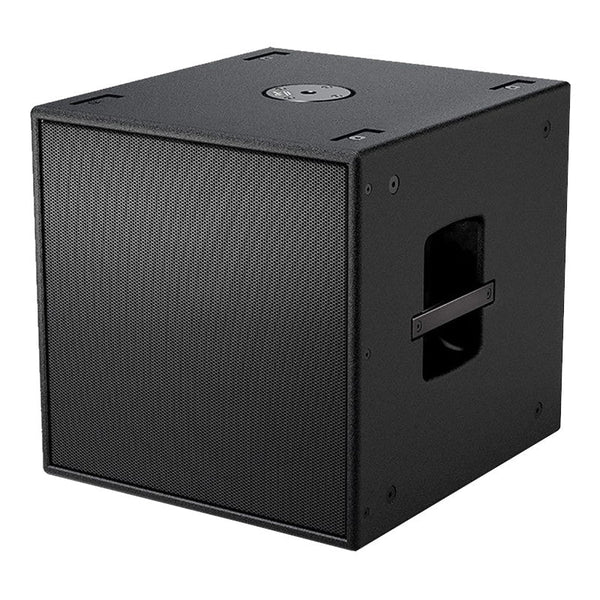

Bose AMS115 15-Inch Compact Passive Subwoofer. AMS115 can add low-frequency reinforcement. It requires a separate suitable amplifier channel and crossover/protection.

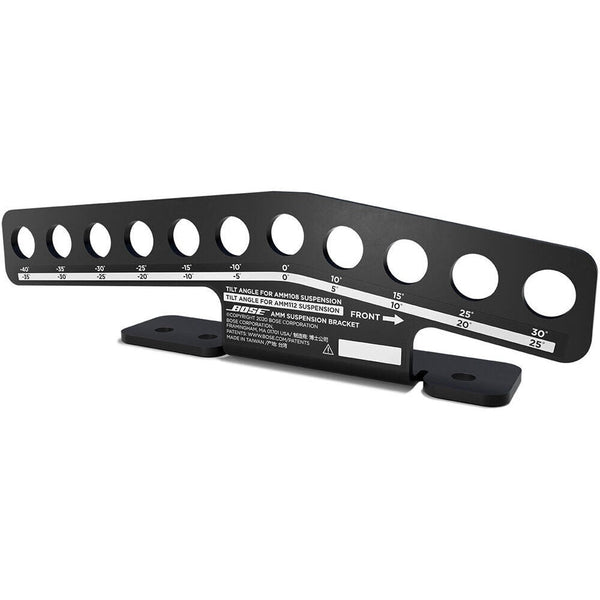

Bose AMM Suspension Bracket. The AMM suspension bracket supports documented AMM108/AMM112 hanging arrangements. Check structure, load and the bracket's environmental limits.
Installation
Use the Bose loudspeaker EQ and protection. IP43 applies only in the documented front-of-house position, not in the tilt-back monitor position. Confirm the mounting support and model-specific hardware; no speaker amplifier is built in.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your AMM112 Multipurpose Passive Speaker quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
