Bose ArenaMatch AMUBRKT U-Bracket

Model 806720-0110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Compatible modules: ArenaMatch AM10, AM20 and AM40
  • Dimensions (H × W × D): 126 × 815 × 375 mm
  • Net weight: 8.8 kg
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose ArenaMatch AMUBRKT U-Bracket
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ArenaMatch AMUBRKT U-Bracket?

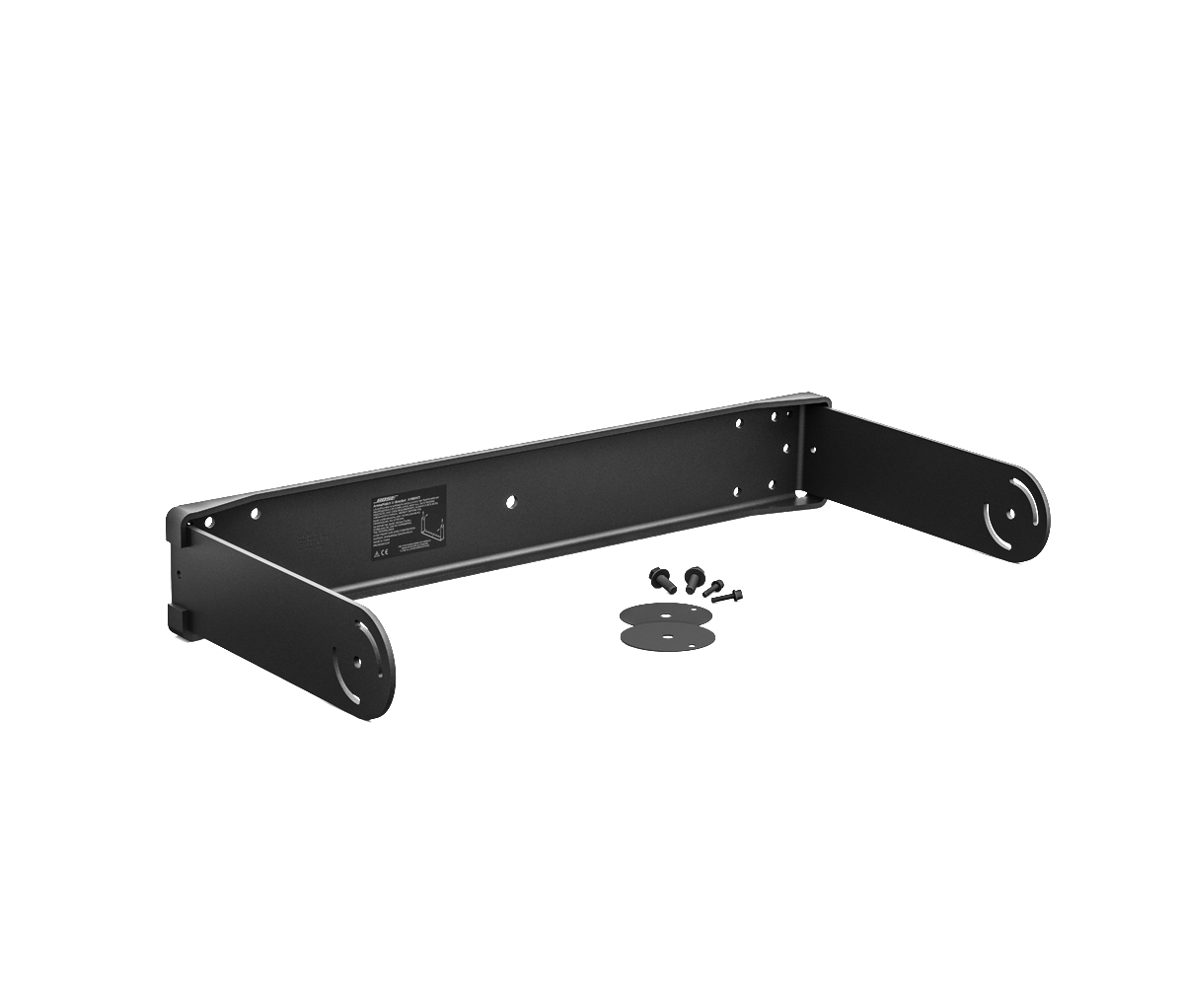

The Bose AMUBRKT mounts a single ArenaMatch AM10, AM20 or AM40 module and allows rotation to set its pitch. It is a model-specific structural mounting accessory for an engineered installation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

The Bose AMUBRKT mounts a single ArenaMatch AM10, AM20 or AM40 module and allows rotation to set its pitch.

  • Compatible modules: ArenaMatch AM10, AM20 and AM40.
  • Dimensions (H × W × D): 126 × 815 × 375 mm.

Use cases

Applications

  • Single-module ArenaMatch installations

Technical details

Technical Specifications

Compatibility

Compatible modules
ArenaMatch AM10, AM20 and AM40

Physical

Dimensions (H × W × D)
126 × 815 × 375 mm
Net weight
8.8 kg
Net weight
8.8 kg.

Model & Identification

Model
ArenaMatch AMUBRKT U-Bracket
Manufacturer part number
806720-0110

General

Adjustment
360° rotation for installed pitch selection
Adjustment
360° rotation for installed pitch selection.

In the box

What's Included

  • One AMUBRKT bracket

  • Two M10 × 25 mm screws

  • Two M6 × 25 mm screws

  • Installation guide

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose ArenaMatch AM10 Outdoor Speaker | Horizontal Waveguide: 60 degrees. Confirm the connection, power and installation arrangement for your system.

Installation

Have a qualified installer specify the complete mounting system, structural attachment, load and aiming arrangement using the current manufacturer instructions. The component alone does not establish the allowable load of the complete installation.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your ArenaMatch AMUBRKT U-Bracket quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose ArenaMatch AMUBRKT U-Bracket used for?

The Bose AMUBRKT mounts a single ArenaMatch AM10, AM20 or AM40 module and allows rotation to set its pitch. It is a model-specific structural mounting accessory for an engineered installation.

Can AMUBRKT hold an ArenaMatch Utility AMU speaker?

The documented compatibility here is ArenaMatch AM10, AM20 and AM40. AMU models are a different family; select their specified mounting hardware.

Does the bracket establish the wall's load rating?

No. The structure, fixings, attachment method and complete assembly require separate assessment against the mounting design.

Which equipment should I consider with ArenaMatch AMUBRKT U-Bracket?

Bose ArenaMatch AM10 Outdoor Speaker | Horizontal Waveguide: 60 degrees. Confirm the precise connection and required accessories with the complete system specification.

What is included with ArenaMatch AMUBRKT U-Bracket?

One AMUBRKT bracket; Two M10 × 25 mm screws; Two M6 × 25 mm screws; Installation guide. Confirm the exact regional pack on the quotation.

What should I check before installing ArenaMatch AMUBRKT U-Bracket?

Have a qualified installer specify the complete mounting system, structural attachment, load and aiming arrangement using the current manufacturer instructions. The component alone does not establish the allowable load of the complete installation.

Can Corporate AV help specify ArenaMatch AMUBRKT U-Bracket for a UAE project?

Share your ArenaMatch AMUBRKT U-Bracket quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
