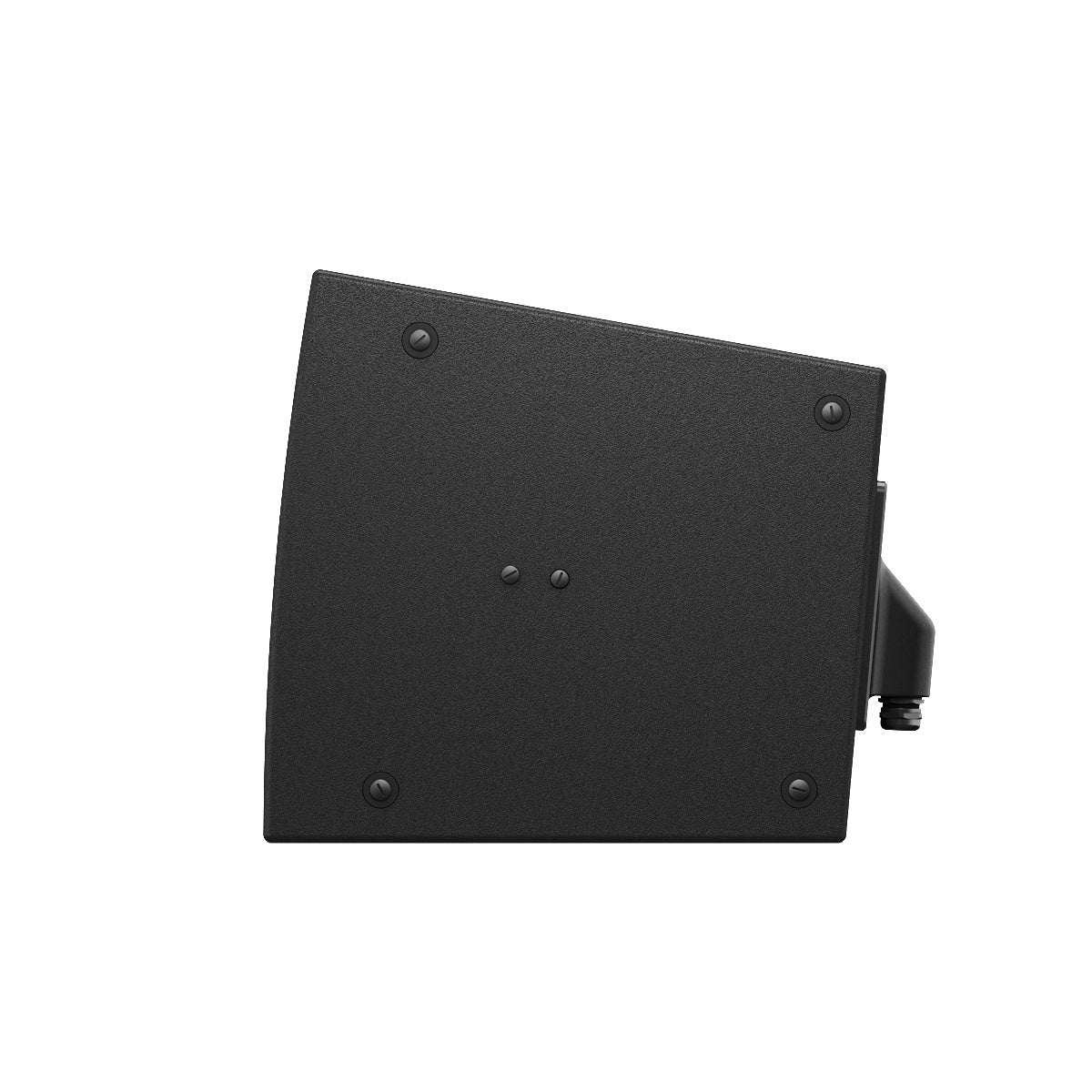

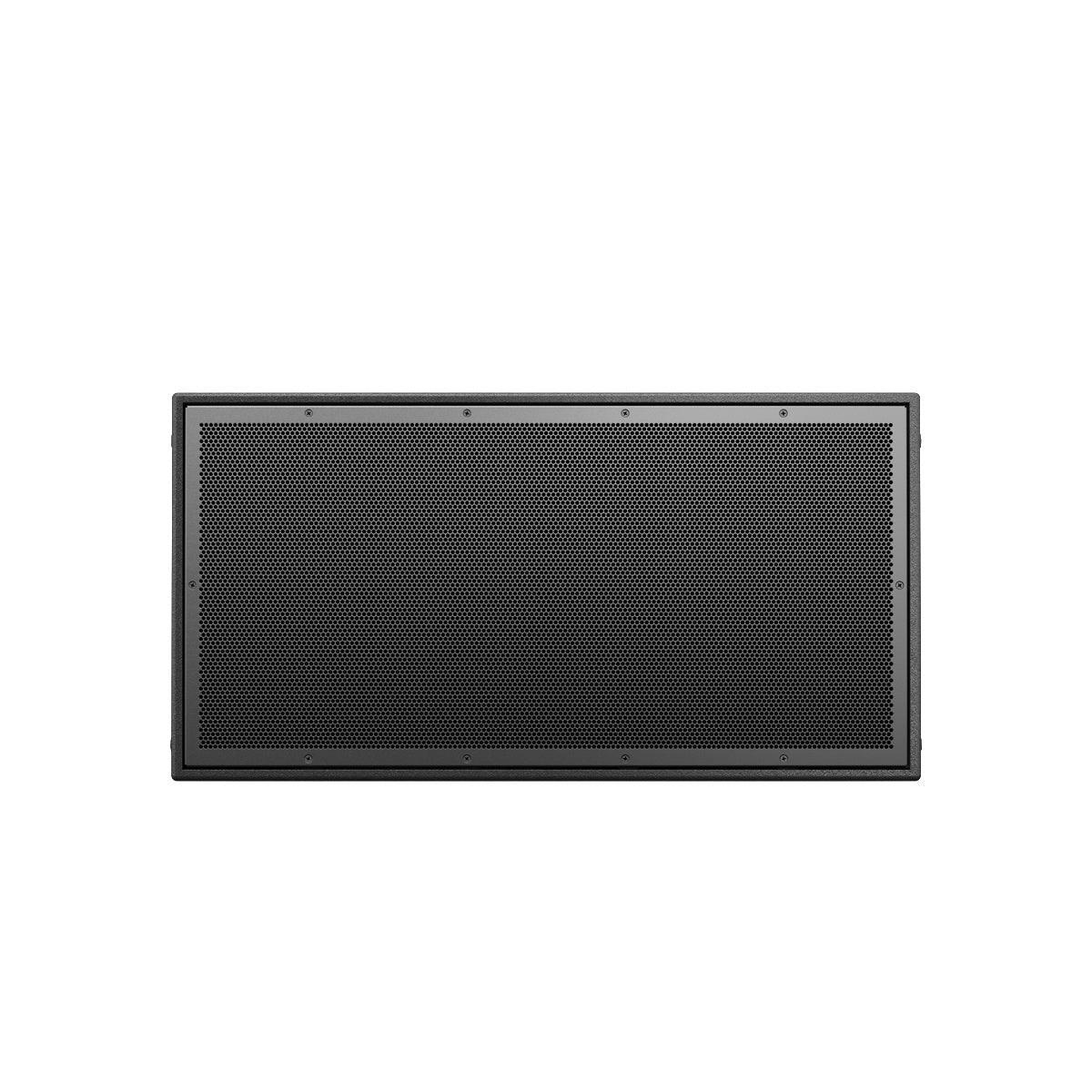

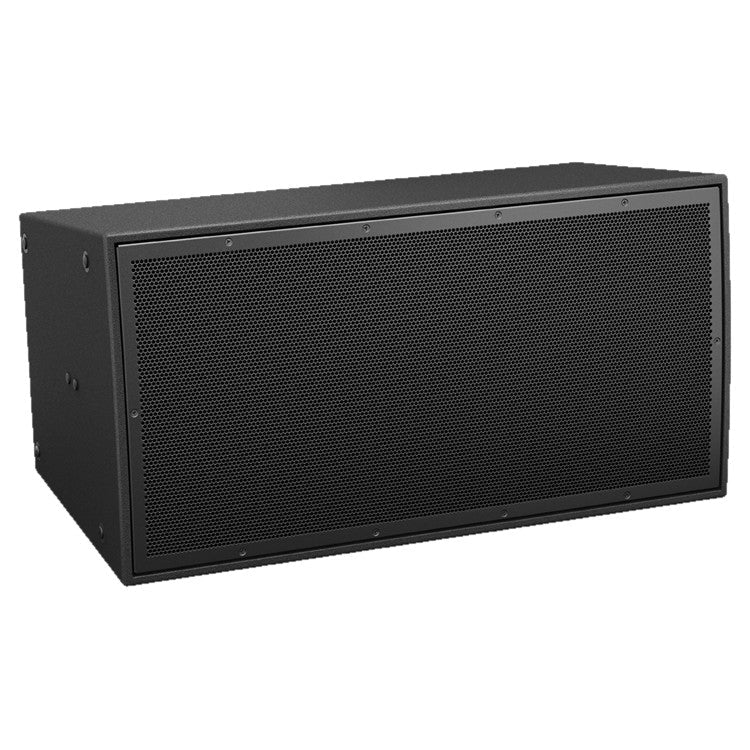

Bose ArenaMatch AM10/60 Outdoor Array Module
Model 794042-3350
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Coverage: 60° horizontal × 10° vertical
- Driver configuration: One 14-inch woofer; six compression drivers
- Frequency range (-10 dB): 55 Hz–18 kHz
- Nominal impedance: 8 Ω passive; 8 Ω LF + 8 Ω HF bi-amp
- Continuous power handling: 750 W passive; 600 W LF + 150 W HF bi-amp
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose ArenaMatch AM10/60 Outdoor Array Module?
Bose ArenaMatch AM10/60 is an outdoor-rated DeltaQ array module with 60° horizontal and 10° vertical coverage. Its 14-inch woofer and six compression drivers suit an engineered venue sound system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
AM10 is a passive array module with documented low-impedance passive, bi-amp and transformer connection options. Select the correct mode and DSP preset before determining the amplifier and cabling arrangement.
- Driver configuration: One 14-inch woofer; six compression drivers.
- Frequency range (-10 dB): 55 Hz–18 kHz.
Use cases
Applications
-
Outdoor venue reinforcement
-
Sports and hospitality sound systems
Technical details
Technical Specifications
System
- Driver configuration
- One 14-inch woofer; six compression drivers
Frequency
- Frequency range (-10 dB)
- 55 Hz–18 kHz
Performance & Coverage
- Coverage
- 60° horizontal × 10° vertical
- Coverage
- 60° horizontal × 10° vertical.
Power
- Nominal impedance
- 8 Ω passive; 8 Ω LF + 8 Ω HF bi-amp
- Continuous power handling
- 750 W passive; 600 W LF + 150 W HF bi-amp
- Transformer taps
- 100 V: 200/400 W; 70 V: 100/200/400 W
- Nominal impedance
- 8 Ω passive; 8 Ω LF + 8 Ω HF bi-amp.
- Continuous power handling
- 750 W passive; 600 W LF + 150 W HF bi-amp.
Physical
- Dimensions (H × W × D)
- 409 × 783 × 420 mm
- Weight
- 36.3 kg
Environmental
- Environmental rating
- IP55, with documented weather-protected installation
General
- Model
- ArenaMatch AM10/60 Outdoor Array Module
- Manufacturer part number
- 794042-3350
In the box
What's Included
-
One ArenaMatch AM10/60 module
-
Input panel cover
-
Eight input-cover screws
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose PowerShareX PSX4804D Networkable Power Amplifier. PowerShareX PSX4804D is a DSP/amplifier option for a suitably configured AM10 system. Match the passive/bi-amp mode, available channel power, preset and limiting to the complete design.

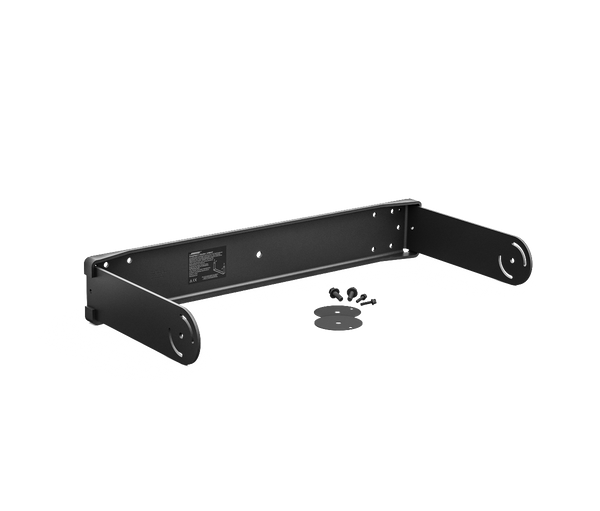

Bose ArenaMatch AMUBRKT U-bracket. AMUBRKT is a model-specific option for a single AM10/AM20/AM40 module. An array requires its own engineered rigging arrangement.
Installation
Match the selected connection mode, manufacturer preset, amplifier channels and protection. Use the input cover and specified sealing. Have the array geometry, structure and model-specific rigging designed for the actual site.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your ArenaMatch AM10/60 Outdoor Array Module quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
Complete your solution
Recommended Accessories
-
Bose
Bose ArenaMatch AMUBRKT U-Bracket
Model 806720-0110
View Product: Bose ArenaMatch AMUBRKT U-Bracket
