Biamp

Biamp Tesira SOC-4 CK

Model 36073MPN 910-00324

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Hardware role: four-channel balanced analogue output card
  • Supported hosts: Tesira SERVER and SERVER-IO
  • Output channels: 4 balanced mic/line outputs
  • Connections: Plug-in barrier-strip connectors
  • Output controls: Mute, level, polarity inversion and full-scale reference
Biamp Tesira SOC-4 CK
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

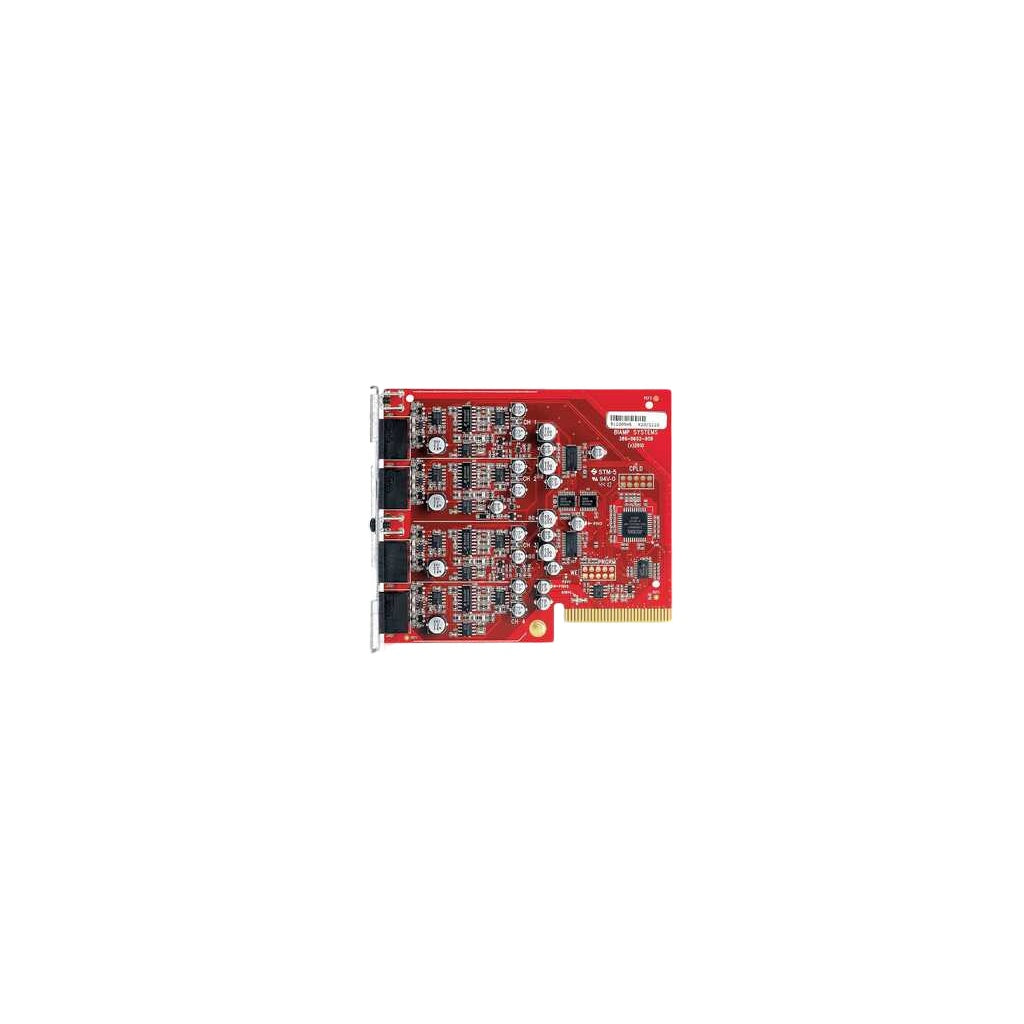

What is the Biamp Tesira SOC-4 CK?

The Biamp Tesira SOC-4 CK is a four-channel balanced analogue output card for Tesira SERVER and SERVER-IO. It lets the integrator expand the documented function within a modular Tesira installation while retaining a coordinated configuration in Tesira software. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

It adds analogue output connectivity; it does not provide speaker-power amplification.

Why this product

Key Benefits

  • Hardware role

    four-channel balanced analogue output card.

  • Supported hosts

    Tesira SERVER and SERVER-IO.

  • Connections

    Plug-in barrier-strip connectors.

  • Output controls

    Mute, level, polarity inversion and full-scale reference.

Use cases

Applications

  • Configured commercial audio or conferencing installations

  • Corporate and education projects with a documented Tesira system design

Technical details

Technical Specifications

Connectivity

Output channels
4 balanced mic/line outputs
Connections
Plug-in barrier-strip connectors
Output controls
Mute, level, polarity inversion and full-scale reference
Selectable full-scale output
+24, +18, +12, +6, 0 or −31dBu
Output channels
4 balanced mic/line outputs.

General

Model
Tesira SOC-4 CK
Manufacturer part number
910-00324
Hardware role
four-channel balanced analogue output card
Supported hosts
Tesira SERVER and SERVER-IO

In the box

What's Included

  • One Biamp Tesira SOC-4 CK card kit

Installation

Installation & Mounting

Recommended Compatible Equipment

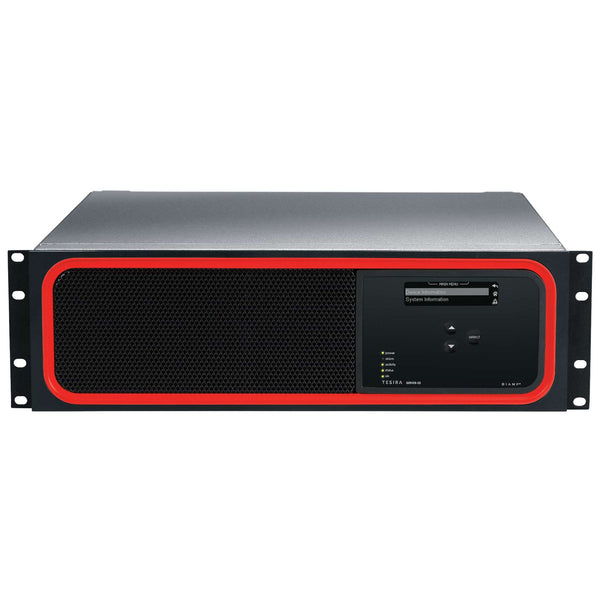

Biamp Tesira SERVER-IO Configurable I/O DSP. Documented host platform. Confirm the complete chassis configuration, compatible slots and required system resources.

Installation

Confirm the host chassis, compatible card slot, existing card population and required DSP resources before ordering. Install according to Biamp’s host hardware guide, update the Tesira equipment table and validate the compiled design and final audio routes.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your Tesira SOC-4 CK quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp Tesira SOC-4 CK used for?

The Biamp Tesira SOC-4 CK is a four-channel balanced analogue output card for Tesira SERVER and SERVER-IO. It lets the integrator expand the documented function within a modular Tesira installation while retaining a coordinated configuration in Tesira software.

Can SOC-4 directly drive passive loudspeakers?

No. These are mic/line-level outputs. Connect them to a suitable amplifier or other compatible line-level input; passive speakers need amplification.

Can Tesira SOC-4 CK operate as a standalone device?

No. It is an internal modular card for a supported Tesira host, with the system configured in Tesira software.

Which equipment should I consider with Tesira SOC-4 CK?

Biamp Tesira SERVER-IO Configurable I/O DSP. Documented host platform. Confirm the complete chassis configuration, compatible slots and required system resources.

What is included with Tesira SOC-4 CK?

One Biamp Tesira SOC-4 CK card kit. Confirm the exact regional pack on the quotation.

What should I check before installing Tesira SOC-4 CK?

Confirm the host chassis, compatible card slot, existing card population and required DSP resources before ordering. Install according to Biamp’s host hardware guide, update the Tesira equipment table and validate the compiled design and final audio routes.

Can Corporate AV help specify Tesira SOC-4 CK for a UAE project?

Share your Tesira SOC-4 CK quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp Tesira SOC-4 CK quotation in the UAE?

Contact Corporate AV about Biamp Tesira SOC-4 CK. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
