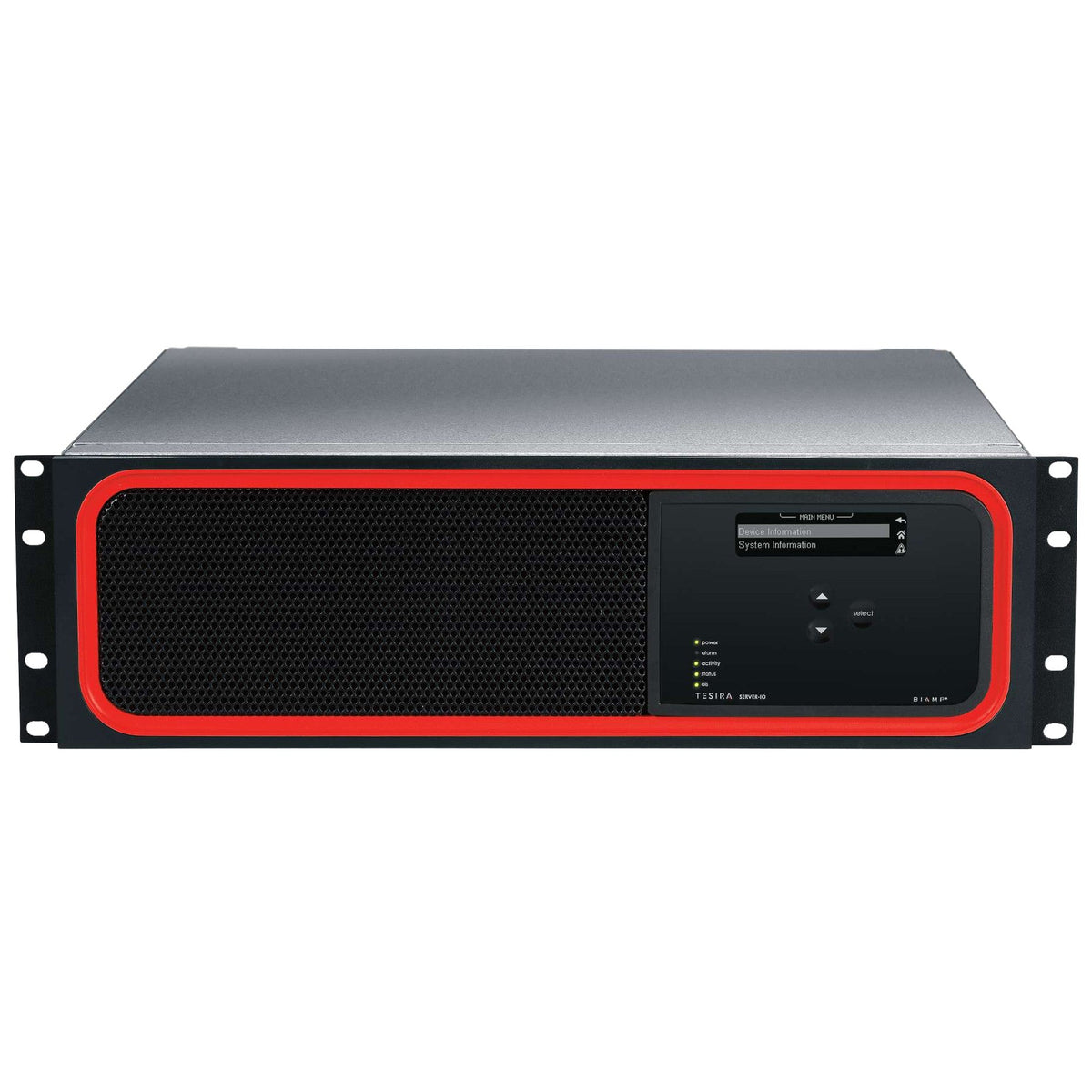

Biamp Tesira SERVER-IO
Model 76454MPN Tesira SERVER-IO
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Product type: Configurable digital-audio network server
- Standard processing: One DSP-2 card in the manufacturer’s base configuration
- DSP capacity: Up to 3 DSP-2 cards total
- Standard I/O card capacity: Up to 12 cards; up to 48 audio I/O channels
- Audio networking-card capacity: Up to 3 networking cards, subject to supported combinations
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp Tesira SERVER-IO?
The Biamp Tesira SERVER-IO is a configurable digital-audio network server for systems that need a tailored mix of processing, analogue connections, telephony and audio-network interfaces. Its modular card architecture lets the integrator specify the hardware around the actual project rather than a fixed input/output layout. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
SERVER-IO is a configurable chassis, not a promise that every supported card or maximum channel count is supplied. The quoted card population determines the installed I/O, networking and processing resources.
Why this product
Key Benefits
-
Product type
Configurable digital-audio network server.
-
Standard processing
One DSP-2 card in the manufacturer’s base configuration.
-
DSP capacity
Up to 3 DSP-2 cards total.
-
Standard I/O card capacity
Up to 12 cards; up to 48 audio I/O channels.
-
Audio networking-card capacity
Up to 3 networking cards, subject to supported combinations.
Use cases
Applications
-
Configured commercial audio or conferencing installations
-
Corporate and education projects with a documented Tesira system design
Technical details
Technical Specifications
System
- DSP capacity
- Up to 3 DSP-2 cards total
- Configuration
- Tesira software and compiled equipment table
Connectivity
- Audio networking-card capacity
- Up to 3 networking cards, subject to supported combinations
Included & Optional Accessories
- Optional network formats
- AVB, Dante or CobraNet with the required cards
General
- Model
- Tesira SERVER-IO
- Manufacturer part number
- Tesira SERVER-IO
- Product type
- Configurable digital-audio network server
- Standard processing
- One DSP-2 card in the manufacturer’s base configuration
- Standard I/O card capacity
- Up to 12 cards; up to 48 audio I/O channels
In the box
What's Included
-
One Tesira SERVER-IO chassis in the configuration stated on the quotation
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Tesira SIC-4 CK 4-Channel Input Card. Standard four-channel analogue input-card option.
Biamp Tesira SOC-4 CK 4-Channel Analog Output Card. Four-channel analogue output-card option.
Biamp Tesira DAN-1 CK 64x64 Dante Module Card Kit. Dante networking-card option.
Biamp Tesira SEC-4 4-Channel Mic/Line Input Card. AEC-equipped four-channel input-card option.
Installation
Specify the exact DSP, I/O and networking-card population before ordering. AVB expanders require the appropriate AVB interface in the host. Validate the card layout, firmware, DSP resources, network clocking and complete Tesira design before installation.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your Tesira SERVER-IO quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
