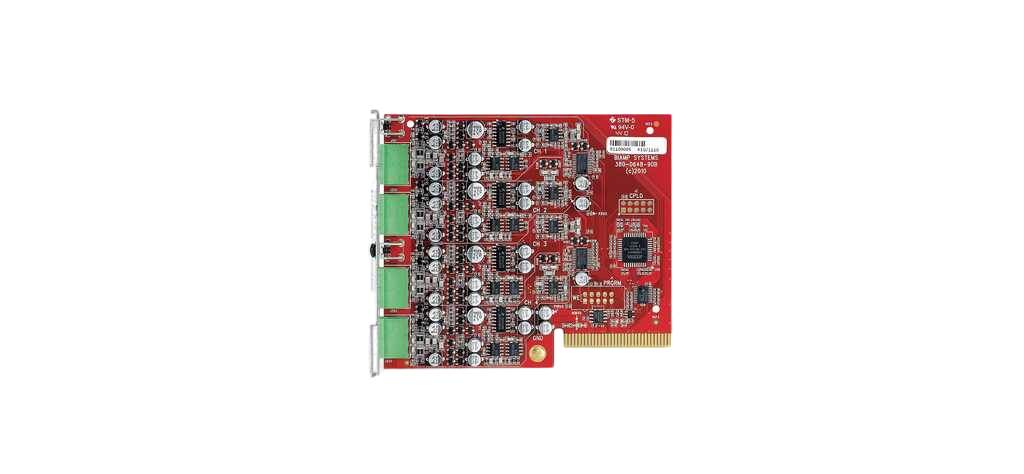

Biamp Tesira SIC-4 CK 4-Channel Input Card

Model 36072MPN 910-00325

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Analogue input channels: 4 balanced mic/line
  • Supported hosts: Tesira SERVER and SERVER-IO
  • Input gain: 0–66dB in 6dB steps
  • Phantom power: +48V
  • Connections: Plug-in barrier-strip connectors
Biamp Tesira SIC-4 CK 4-Channel Input Card
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp Tesira SIC-4 Card Kit?

The Biamp Tesira SIC-4 Card Kit adds four balanced microphone or line-level inputs to a compatible Tesira SERVER or SERVER-IO system. It is a modular input option for designs that need additional analogue sources within a configured Tesira DSP chassis. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

SIC-4 is a plug-in input card, rather than a standalone DSP or an acoustic-echo-cancellation card. The host chassis, processing resources and system configuration are specified separately.

  • Supported hosts: Tesira SERVER and SERVER-IO.
  • Connections: Plug-in barrier-strip connectors.

Use cases

Applications

  • Commercial AV installation requiring the documented Tesira SIC-4 Card Kit function

  • UAE projects specified against the complete system design

Technical details

Technical Specifications

Power

Phantom power
+48V
Phantom power
+48V.

Connectivity

Analogue input channels
4 balanced mic/line
Input gain
0–66dB in 6dB steps
Connections
Plug-in barrier-strip connectors
Input functions
Clip indication and signal polarity inversion
Analogue input channels
4 balanced mic/line.
Input gain
0–66dB in 6dB steps.

General

Model
Tesira SIC-4 Card Kit
Manufacturer part number
910-00325
Supported hosts
Tesira SERVER and SERVER-IO

In the box

What's Included

  • One Biamp Tesira SIC-4 input-card kit

Installation

Installation & Mounting

Recommended Compatible Equipment

Biamp Tesira SERVER-IO Configurable I/O DSP. Documented host chassis option. Confirm slots, card population, DSP resources and the complete design before purchase.

Installation

Confirm the exact host chassis, available card slots and processing resources with the Tesira design. Have the card installed according to the host hardware guide, then configure input gain, phantom power, routing and DSP in the system design. Select an AEC-equipped input solution where echo cancellation is required.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your Tesira SIC-4 Card Kit quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp Tesira SIC-4 Card Kit used for?

The Biamp Tesira SIC-4 Card Kit adds four balanced microphone or line-level inputs to a compatible Tesira SERVER or SERVER-IO system. It is a modular input option for designs that need additional analogue sources within a configured Tesira DSP chassis.

Does SIC-4 include acoustic echo cancellation?

SIC-4 is the standard mic/line input card. Do not specify it as an AEC input card; choose the appropriate Tesira AEC input hardware and processing for conferencing.

Can SIC-4 operate without a Tesira chassis?

No. It is designed for a compatible Tesira SERVER or SERVER-IO host and requires the complete configured system.

Which equipment should I consider with Tesira SIC-4 Card Kit?

Biamp Tesira SERVER-IO Configurable I/O DSP. Documented host chassis option. Confirm slots, card population, DSP resources and the complete design before purchase.

What is included with Tesira SIC-4 Card Kit?

One Biamp Tesira SIC-4 input-card kit. Confirm the exact regional pack on the quotation.

What should I check before installing Tesira SIC-4 Card Kit?

Confirm the exact host chassis, available card slots and processing resources with the Tesira design. Have the card installed according to the host hardware guide, then configure input gain, phantom power, routing and DSP in the system design. Select an AEC-equipped input solution where echo cancellation is required.

Can Corporate AV help specify Tesira SIC-4 Card Kit for a UAE project?

Share your Tesira SIC-4 Card Kit quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp Tesira SIC-4 Card Kit quotation in the UAE?

Contact Corporate AV about Biamp Tesira SIC-4 Card Kit. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
