Biamp TesiraFORTÉ X 400
Model 129684MPN 920-00091-00001
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Assignable AEC channels: 4
- Analogue inputs / outputs: 2 mic/line inputs / 2 mic/line outputs
- USB audio: 1 × 1 mono or 2 × 2 stereo with HID synchronisation
- Network ports: 5 × 1Gbps Ethernet
- PoE+ outputs: 4 ports; IEEE 802.3at Class 4, 30W per port
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

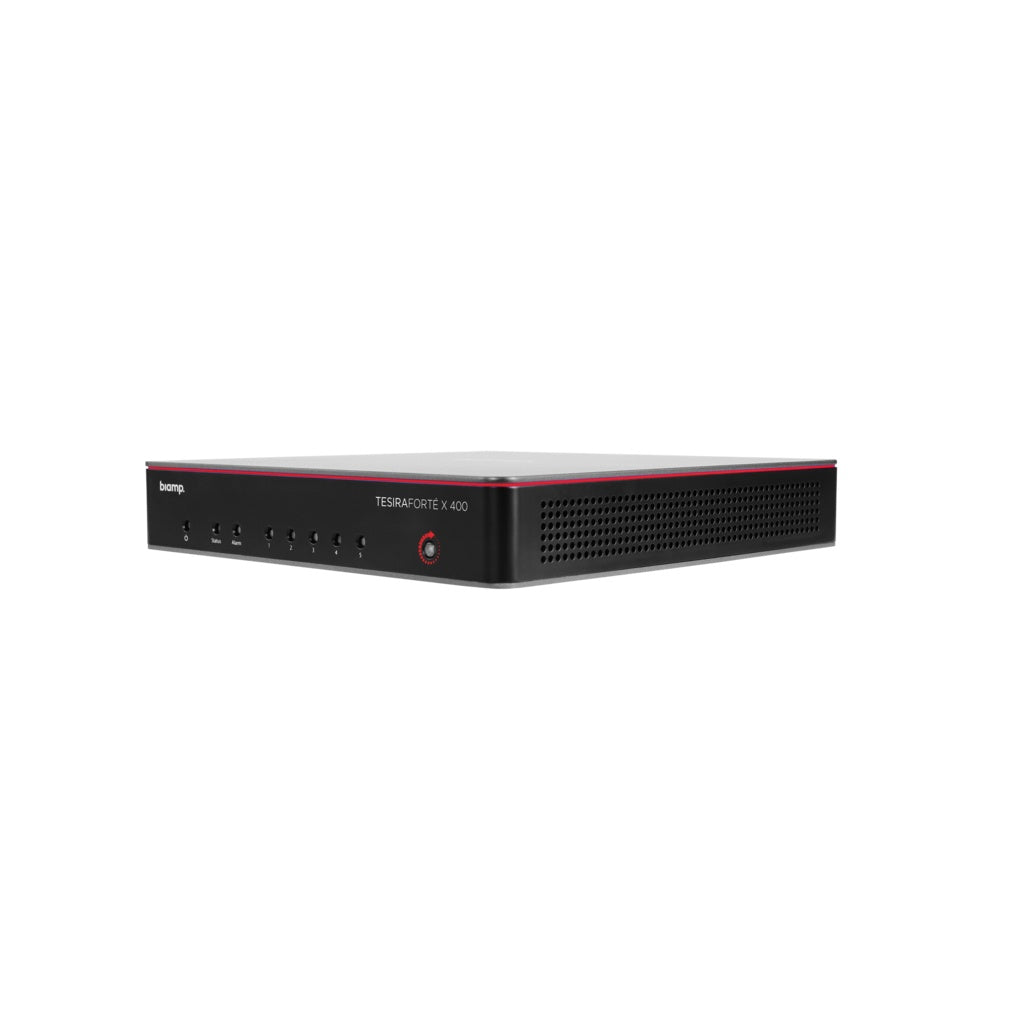

What is the Biamp TesiraFORTÉ X 400?
The Biamp TesiraFORTÉ X 400 is a meeting-room DSP with 4 assignable AEC channels, analogue connections and simultaneous AVB, Dante and AES67 support. Its five Gigabit ports include four PoE+ outputs, helping connect and power supported room-audio devices in a compact system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
TesiraFORTÉ X combines configurable room-audio processing, USB conferencing connectivity and Biamp Launch setup. It requires the specified microphones, loudspeaker amplification and meeting host to form a complete room system.
Use cases
Applications
-
Configured commercial audio or conferencing installations
-
Corporate and education projects with a documented Tesira system design
Technical details
Technical Specifications
System
- Custom configuration
- Tesira software
Connectivity
- Assignable AEC channels
- 4
- Analogue inputs / outputs
- 2 mic/line inputs / 2 mic/line outputs
- USB audio
- 1 × 1 mono or 2 × 2 stereo with HID synchronisation
- Network ports
- 5 × 1Gbps Ethernet
- PoE+ outputs
- 4 ports; IEEE 802.3at Class 4, 30W per port
- Network audio
- Simultaneous AVB, Dante and AES67
- Assignable AEC channels
- 4.
- Analogue inputs / outputs
- 2 mic/line inputs / 2 mic/line outputs.
- USB audio
- 1 × 1 mono or 2 × 2 stereo with HID synchronisation.
- Network ports
- 5 × 1Gbps Ethernet.
- PoE+ outputs
- 4 ports; IEEE 802.3at Class 4, 30W per port.
Physical
- Mounting
- Surface-mount bracket included
General
- Model
- TesiraFORTÉ X 400
- Manufacturer part number
- 920-00091-00001
- Setup
- Biamp Launch discovery, tuning and performance report
- Control I/O
- 4-pin GPIO
In the box
What's Included
-
One Biamp TesiraFORTÉ X 400 meeting-room DSP
-
Surface-mount bracket
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp Parlé TCM-X Beamtracking Ceiling Microphone | White. Parlé AVB ceiling-microphone option; specify coverage and AEC resources for the intended room.
Biamp Voltera D 1200.4 4-Channel DSP Amplifier. DSP amplifier option for the selected loudspeakers. Configure the required protection, output mode and channel power.

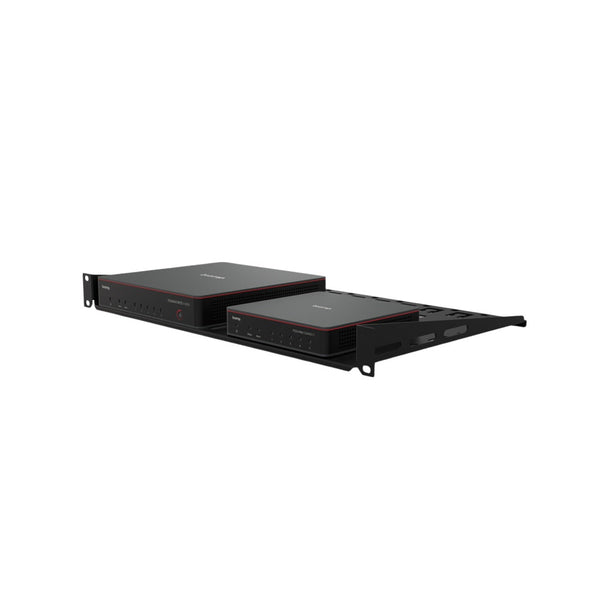

Biamp RMX 100 1RU Universal Rack Shelf For TesiraFORTÉ X. Universal rack-shelf option; verify the intended shelf layout and mounting hardware.
Installation
Count all AEC-required channels against the 4-channel capacity and verify the supported devices and network arrangement. Connect the final microphones and amplified speaker paths before running Biamp Launch. Configure SIP, USB HID behaviour and custom routing where the room design requires them, then test the complete conferencing workflow.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your TesiraFORTÉ X 400 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
