Biamp Parlé TCM-X White
Model 43852MPN 920-00498-20000
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Microphone technology: Beamtracking ceiling array
- Coverage: Four 90° zones / 360°
- Finish: White
- System role: Tesira AVB microphone with network/plenum box
- Connection: Category cable in the documented system arrangement
- Authorized Biamp Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Biamp Parlé TCM-X White?

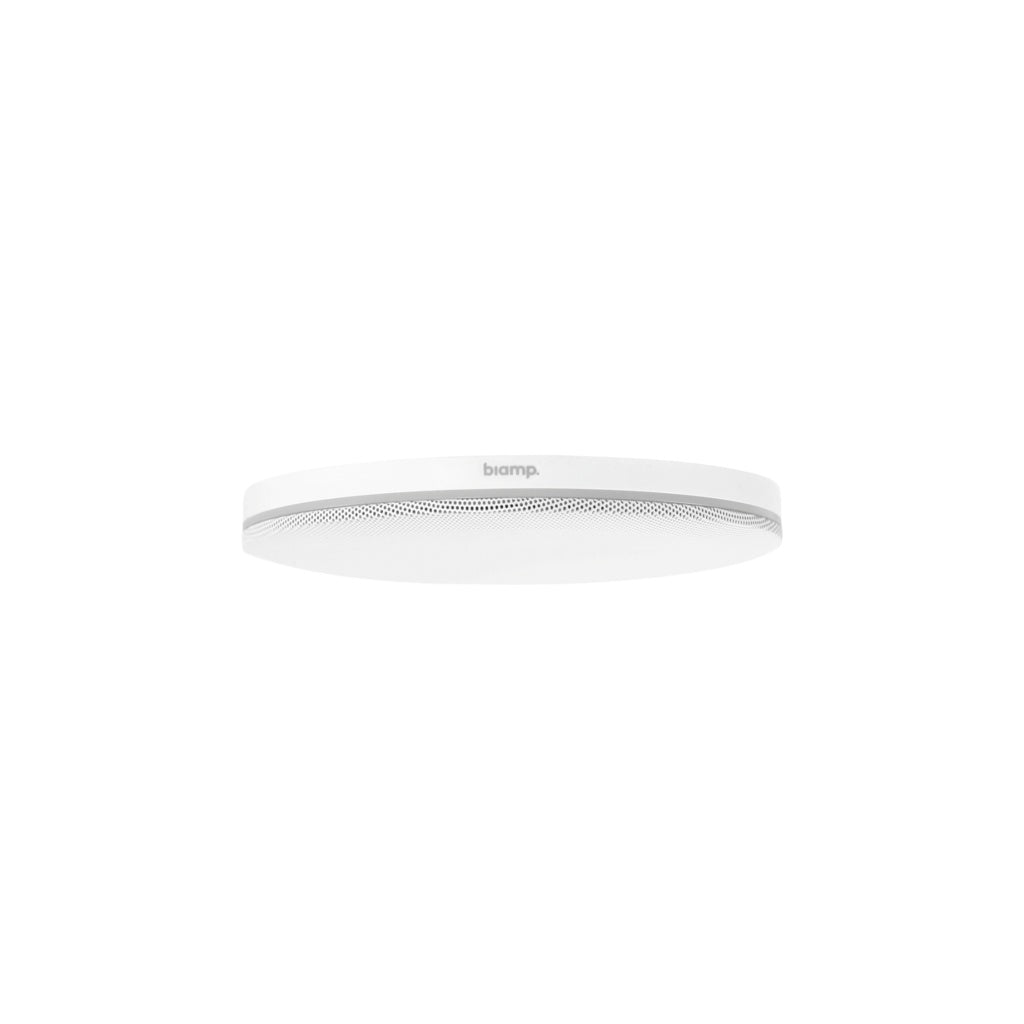

The Biamp Parlé TCM-X White is a low-profile Beamtracking ceiling microphone with four 90-degree zones for 360-degree coverage. The TCM-X package combines the ceiling microphone and a network/plenum box for a supported Tesira AVB system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
TCM-X tracks and mixes room conversation for a configured Tesira system. It requires the supported AVB audio path, host processing and PoE power; it is not a Dante or generic USB microphone.
Why this product
Key Benefits
-
Microphone technology
Beamtracking ceiling array.
-
Coverage
Four 90° zones / 360°.
-
Finish
White.
-
System role
Tesira AVB microphone with network/plenum box.
-
Connection
Category cable in the documented system arrangement.
Use cases
Applications
-
Supported commercial meeting-room AV installations
-
UAE projects with a documented mounting, audio or media-network design
Technical details
Technical Specifications
Microphone
- Microphone technology
- Beamtracking ceiling array
Connectivity
- Connection
- Category cable in the documented system arrangement
Power
- Power
- PoE Type 1 Class 3; 15.4W source requirement
Physical
- Finish
- White
General
- Model
- Parlé TCM-X White
- Manufacturer part number
- 920-00498-20000
- Coverage
- Four 90° zones / 360°
- System role
- Tesira AVB microphone with network/plenum box
- Expansion
- One optional TCM-XEX; two microphones maximum per plenum box
In the box
What's Included
-
One white Parlé TCM-X ceiling microphone
-
TCM-X network/plenum box
Installation
Installation & Mounting
Recommended Compatible Equipment
Biamp TesiraFORTÉ X 400 Meeting Room DSP. AVB-capable room-DSP option; account for microphone channels and AEC resources.
Biamp TesiraCONNECT TC-5 5-Port Network Expansion Device. AVB and PoE+ connection option for the planned room topology.

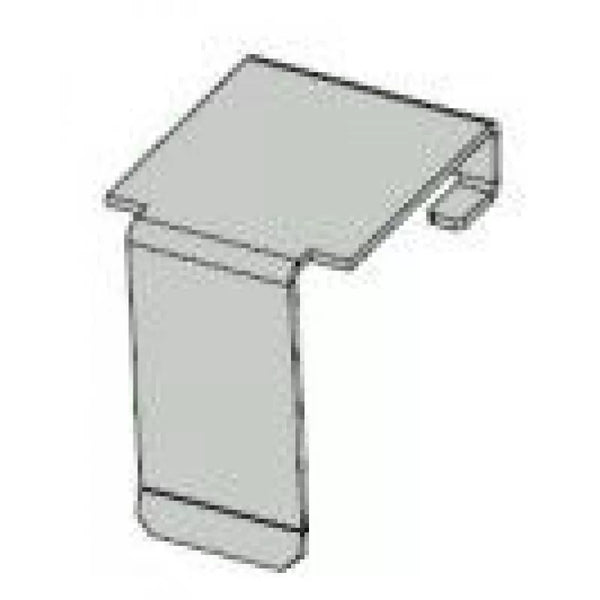

Biamp TB-1 Ceiling Tile Bridge. Optional ceiling tile bridge documented for supported Parlé installations.
Biamp Parlé TCM-XEX White Beamtracking Expansion Microphone. Optional expansion microphone; maximum two microphones per TCM-X plenum box.
Installation
Plan coverage against the seating layout, ceiling height and room acoustics. Check the required microphone and network cable paths and the structural/ceiling support. Provide the supported AVB host and PoE power; assign the required AEC and audio processing in the Tesira design. Verify cable lengths, mounting hardware, mute indications and the final conferencing audio path.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your Parlé TCM-X White quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
