Biamp

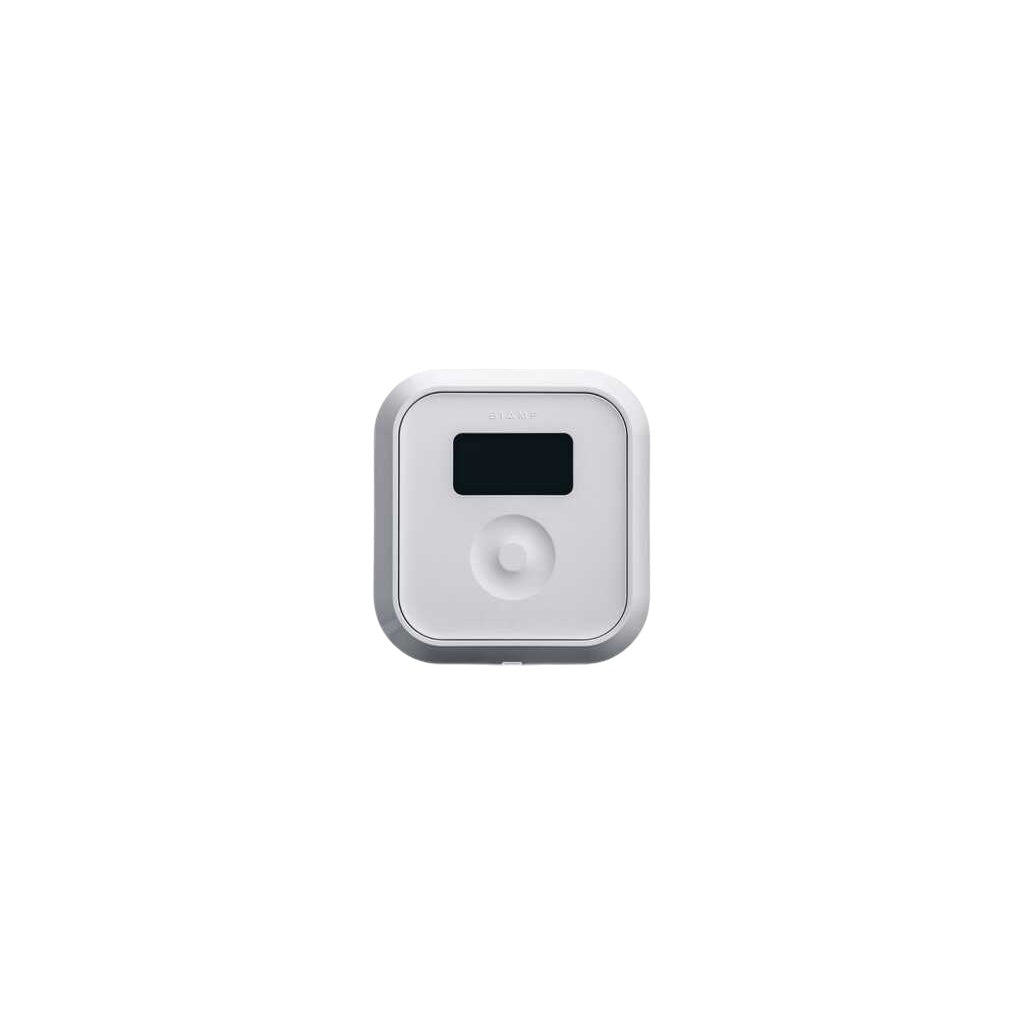

Biamp Tesira TEC-1s

Model 76446MPN 920-00316-00001

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Mounting: Surface mount
  • Display: High-contrast OLED
  • Interface: Capacitive-touch navigation
  • Selectable volumes / actions: Up to 32
  • Network / power: Ethernet with PoE
Biamp Tesira TEC-1s
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp Tesira TEC-1s?

The Biamp Tesira TEC-1s is a PoE Ethernet remote control for Tesira and TesiraFORTÉ systems. Its OLED display and capacitive-touch interface give users access to configured volume levels and actions in a surface-mount installation. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

TEC-1 controls functions assigned in the Tesira system design. It is not a standalone room processor, amplifier or universal device remote.

Why this product

Key Benefits

  • Mounting

    Surface mount.

  • Display

    High-contrast OLED.

  • Interface

    Capacitive-touch navigation.

  • Selectable volumes / actions

    Up to 32.

  • Network / power

    Ethernet with PoE.

Use cases

Applications

  • Configured commercial audio or conferencing installations

  • Corporate and education projects with a documented Tesira system design

Technical details

Technical Specifications

Control & Interface

Display
High-contrast OLED

Connectivity

Interface
Capacitive-touch navigation
Network / power
Ethernet with PoE
Connections
RJ45 or IDC; standard category cabling

Physical & Mounting

Mounting
Surface mount

Model & Identification

Model
Tesira TEC-1s
Manufacturer part number
920-00316-00001

General

Selectable volumes / actions
Up to 32
Functions
Configured levels, presets, source selection and other system actions

In the box

What's Included

  • One Biamp Tesira TEC-1s control panel

  • Moulded surface-mount rear chassis

Installation

Installation & Mounting

Recommended Compatible Equipment

Biamp TesiraFORTÉ X 400 Meeting Room DSP. TesiraFORTÉ X processor option for the configured control system.

Biamp POE29U-1AT(PL)D-R Phihong Gigabit PoE+ Injector. PoE injector option if suitable PoE power is not already provided; confirm the electrical class and network arrangement.

Installation

Confirm the surface location and cable entry, network route and PoE supply. Assign the control functions in the Tesira design, verify device discovery and test the final labels, actions and volume limits before handover.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your Tesira TEC-1s quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp Tesira TEC-1s used for?

The Biamp Tesira TEC-1s is a PoE Ethernet remote control for Tesira and TesiraFORTÉ systems. Its OLED display and capacitive-touch interface give users access to configured volume levels and actions in a surface-mount installation.

How do TEC-1i and TEC-1s differ?

TEC-1i is designed for flush in-wall or in-surface installation. TEC-1s includes a rear chassis for surface mounting. Both control programmed Tesira functions over Ethernet.

Does TEC-1 control AV equipment without a Tesira system?

Its functions are programmed in the Tesira system design. It needs the supported system, network and PoE power arrangement.

Which equipment should I consider with Tesira TEC-1s?

Biamp TesiraFORTÉ X 400 Meeting Room DSP. TesiraFORTÉ X processor option for the configured control system.

Biamp POE29U-1AT(PL)D-R Phihong Gigabit PoE+ Injector. PoE injector option if suitable PoE power is not already provided; confirm the electrical class and network arrangement.

What is included with Tesira TEC-1s?

One Biamp Tesira TEC-1s control panel; Moulded surface-mount rear chassis. Confirm the exact regional pack on the quotation.

What should I check before installing Tesira TEC-1s?

Confirm the surface location and cable entry, network route and PoE supply. Assign the control functions in the Tesira design, verify device discovery and test the final labels, actions and volume limits before handover.

Can Corporate AV help specify Tesira TEC-1s for a UAE project?

Share your Tesira TEC-1s quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp Tesira TEC-1s quotation in the UAE?

Contact Corporate AV about Biamp Tesira TEC-1s. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
