Biamp

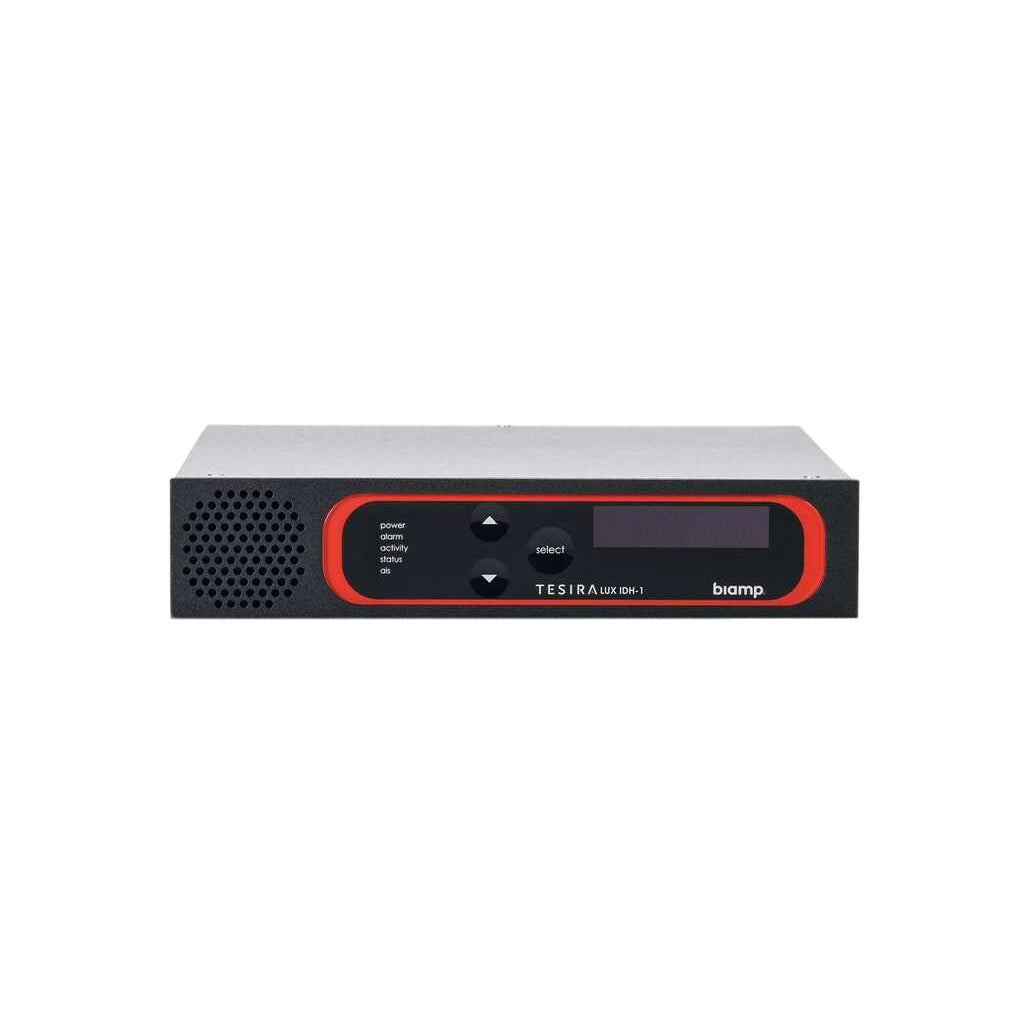

Biamp TesiraLUX IDH-1

Model 36079MPN 920-00426-00001

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Device role: AVB video encoder / talker
  • Video capability: Up to 4K60; system bandwidth and format dependent
  • Video connections: HDMI and DisplayPort 1.2 inputs
  • PCM audio: 8-channel embedding / de-embedding
  • Analogue audio: 2 mic/line inputs
Biamp TesiraLUX IDH-1
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp TesiraLUX IDH-1?

The Biamp TesiraLUX IDH-1 is an AVB/TSN video encoder for a configured Tesira media system, supporting video input up to 4K60. It brings HDMI or DisplayPort source content into the network. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

TesiraLUX IDH-1 handles the source/encoding side of a TesiraLUX media route. It is not interchangeable with the OH-1 decoder; a complete source-to-display path and supported network are required.

Why this product

Key Benefits

  • Device role

    AVB video encoder / talker.

  • Video capability

    Up to 4K60; system bandwidth and format dependent.

  • Video connections

    HDMI and DisplayPort 1.2 inputs.

Use cases

Applications

  • Supported commercial meeting-room AV installations

  • UAE projects with a documented mounting, audio or media-network design

Technical details

Technical Specifications

Control & Interface

Control
Serial/TTP and 4 logic connections

Connectivity

Device role
AVB video encoder / talker
Video capability
Up to 4K60; system bandwidth and format dependent
Video connections
HDMI and DisplayPort 1.2 inputs

Physical & Mounting

Form factor
Half-rack

Model & Identification

Model
TesiraLUX IDH-1
Manufacturer part number
920-00426-00001

General

PCM audio
8-channel embedding / de-embedding
Analogue audio
2 mic/line inputs
System functions
Lip-sync, EDID and bandwidth management
Content protection
HDCP supported
PCM audio
8-channel embedding / de-embedding.
Analogue audio
2 mic/line inputs.

In the box

What's Included

  • One Biamp TesiraLUX IDH-1 video encoder

Installation

Installation & Mounting

Recommended Compatible Equipment

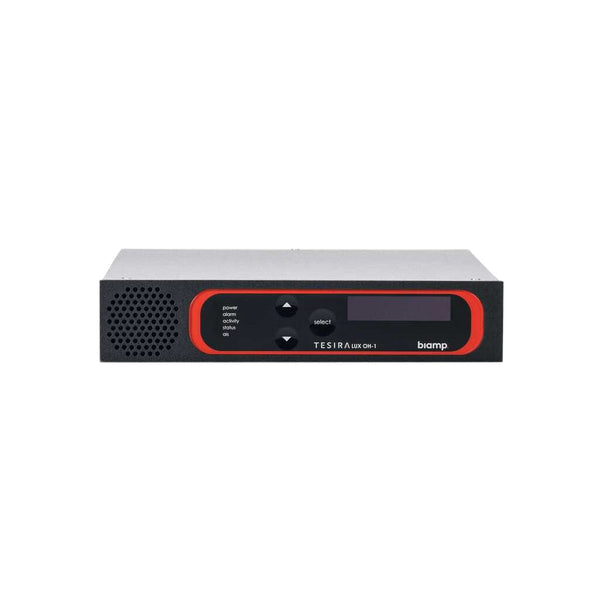

Biamp TesiraLUX OH-1 AVB Video Decoder. Matching TesiraLUX decoder for the destination display. Specify the supported network and complete media route.

Installation

Design the complete AVB/TSN media route and calculate bandwidth for the selected resolution, frame rate and compression. Confirm source/display EDID, HDCP, network interface choice and firmware. Use the required encoder at the source and decoder at the destination; test synchronised audio and video in the final installation.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your TesiraLUX IDH-1 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp TesiraLUX IDH-1 used for?

The Biamp TesiraLUX IDH-1 is an AVB/TSN video encoder for a configured Tesira media system, supporting video input up to 4K60. It brings HDMI or DisplayPort source content into the network.

Is TesiraLUX IDH-1 an encoder or decoder?

IDH-1 is the source-side encoder. It accepts HDMI or DisplayPort content for transmission on the configured TesiraLUX network.

Does every 4K60 format use the same bandwidth?

No. Resolution, frame rate, chroma, bit depth and compression affect bandwidth. Check the supported format and network capacity in the complete TesiraLUX design.

Which equipment should I consider with TesiraLUX IDH-1?

Biamp TesiraLUX OH-1 AVB Video Decoder. Matching TesiraLUX decoder for the destination display. Specify the supported network and complete media route.

What is included with TesiraLUX IDH-1?

One Biamp TesiraLUX IDH-1 video encoder. Confirm the exact regional pack on the quotation.

What should I check before installing TesiraLUX IDH-1?

Design the complete AVB/TSN media route and calculate bandwidth for the selected resolution, frame rate and compression. Confirm source/display EDID, HDCP, network interface choice and firmware. Use the required encoder at the source and decoder at the destination; test synchronised audio and video in the final installation.

Can Corporate AV help specify TesiraLUX IDH-1 for a UAE project?

Share your TesiraLUX IDH-1 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp TesiraLUX IDH-1 quotation in the UAE?

Contact Corporate AV about Biamp TesiraLUX IDH-1. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
