Biamp

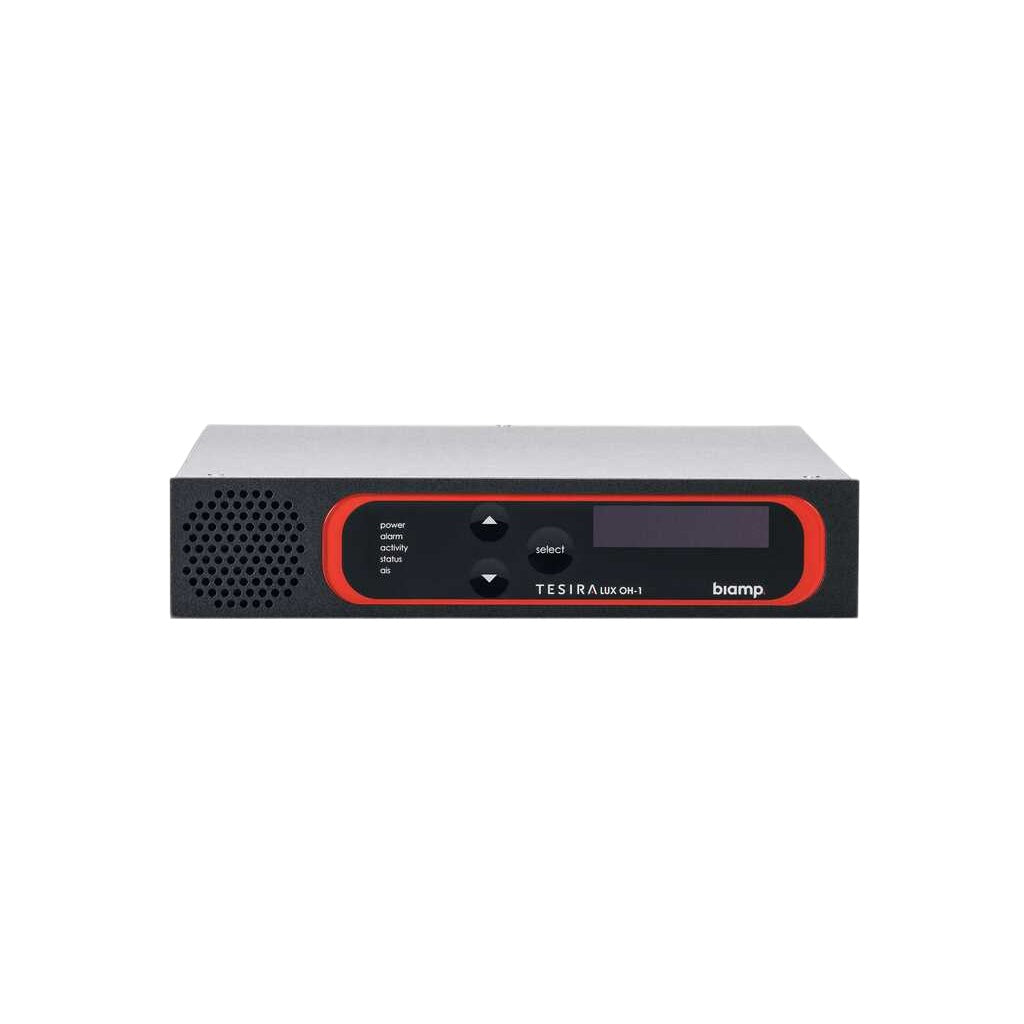

Biamp TesiraLUX OH-1

Model 36080MPN 920-00427-00001

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Device role: AVB video decoder / listener
  • Video capability: Up to 4K60; system bandwidth and format dependent
  • Video connections: HDMI output
  • PCM audio: 8-channel embedding / de-embedding
  • Analogue audio: 2 mic/line outputs
Biamp TesiraLUX OH-1
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp TesiraLUX OH-1?

The Biamp TesiraLUX OH-1 is an AVB/TSN video decoder for a configured Tesira media system, supporting video output up to 4K60. It receives networked media and presents the decoded signal through HDMI to the destination display. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

TesiraLUX OH-1 handles the destination/decoding side of a TesiraLUX media route. It is not interchangeable with the IDH-1 encoder; a complete source-to-display path and supported network are required.

Why this product

Key Benefits

  • Device role

    AVB video decoder / listener.

  • Video capability

    Up to 4K60; system bandwidth and format dependent.

  • Video connections

    HDMI output.

Use cases

Applications

  • Supported commercial meeting-room AV installations

  • UAE projects with a documented mounting, audio or media-network design

Technical details

Technical Specifications

Control & Interface

Control
Serial/TTP and 4 logic connections

Connectivity

Device role
AVB video decoder / listener
Video capability
Up to 4K60; system bandwidth and format dependent
Video connections
HDMI output

Physical & Mounting

Form factor
Half-rack

Model & Identification

Model
TesiraLUX OH-1
Manufacturer part number
920-00427-00001

General

PCM audio
8-channel embedding / de-embedding
Analogue audio
2 mic/line outputs
System functions
Lip-sync, EDID and bandwidth management
Content protection
HDCP supported
PCM audio
8-channel embedding / de-embedding.
Analogue audio
2 mic/line outputs.

In the box

What's Included

  • One Biamp TesiraLUX OH-1 video decoder

Installation

Installation & Mounting

Recommended Compatible Equipment

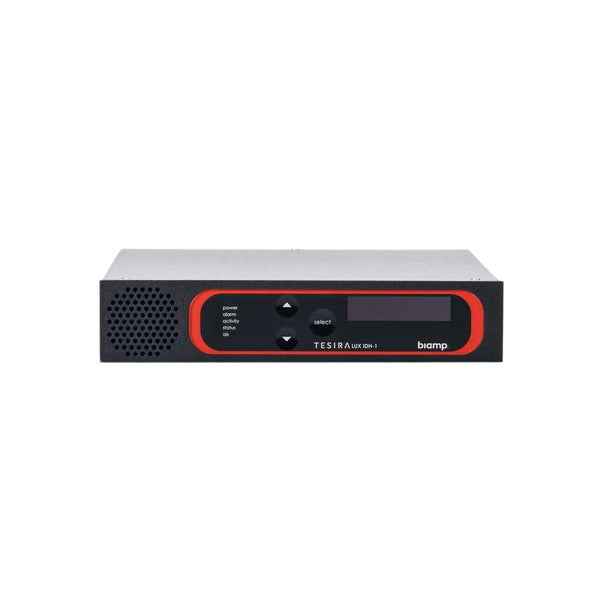

Biamp TesiraLUX IDH-1 AVB Video Encoder. Matching TesiraLUX encoder for the source. Specify the supported network and complete media route.

Installation

Design the complete AVB/TSN media route and calculate bandwidth for the selected resolution, frame rate and compression. Confirm source/display EDID, HDCP, network interface choice and firmware. Use the required encoder at the source and decoder at the destination; test synchronised audio and video in the final installation.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your TesiraLUX OH-1 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp TesiraLUX OH-1 used for?

The Biamp TesiraLUX OH-1 is an AVB/TSN video decoder for a configured Tesira media system, supporting video output up to 4K60. It receives networked media and presents the decoded signal through HDMI to the destination display.

Is TesiraLUX OH-1 an encoder or decoder?

OH-1 is the destination-side decoder. It outputs decoded video through HDMI; it is not the source encoder.

Does every 4K60 format use the same bandwidth?

No. Resolution, frame rate, chroma, bit depth and compression affect bandwidth. Check the supported format and network capacity in the complete TesiraLUX design.

Which equipment should I consider with TesiraLUX OH-1?

Biamp TesiraLUX IDH-1 AVB Video Encoder. Matching TesiraLUX encoder for the source. Specify the supported network and complete media route.

What is included with TesiraLUX OH-1?

One Biamp TesiraLUX OH-1 video decoder. Confirm the exact regional pack on the quotation.

What should I check before installing TesiraLUX OH-1?

Design the complete AVB/TSN media route and calculate bandwidth for the selected resolution, frame rate and compression. Confirm source/display EDID, HDCP, network interface choice and firmware. Use the required encoder at the source and decoder at the destination; test synchronised audio and video in the final installation.

Can Corporate AV help specify TesiraLUX OH-1 for a UAE project?

Share your TesiraLUX OH-1 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp TesiraLUX OH-1 quotation in the UAE?

Contact Corporate AV about Biamp TesiraLUX OH-1. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
