Biamp

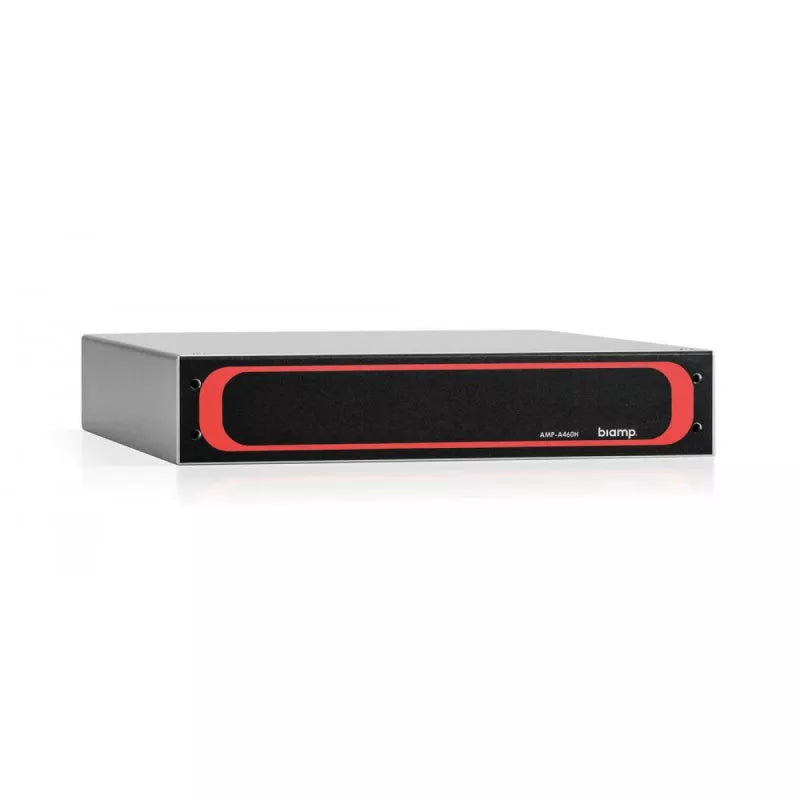

Biamp AMP-A460H

Model 35835MPN AMP-A460H

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Output channels: 4
  • Published output: 60 W per channel, single channel driven at 4 Ω or 8 Ω
  • Output configuration: Low impedance; 70/100 V direct drive in bridged mode only
  • Cooling: Convection
  • Rack format: Half-rack, 1RU
Biamp AMP-A460H
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp AMP-A460H?

The Biamp AMP-A460H is a 4-channel Class D power amplifier for permanent commercial audio. Its published output is 60 W per channel, single channel driven at 4 Ω or 8 Ω. Use it with a suitable upstream mixer or processor and correctly matched passive speakers. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

An installation amplifier for low impedance; 70/100 v direct drive in bridged mode only.

Why this product

Key Benefits

  • Output configuration

    Low impedance; 70/100 V direct drive in bridged mode only.

  • Cooling

    Convection.

  • Rack format

    Half-rack, 1RU.

Use cases

Applications

  • Commercial background music

  • Retail and hospitality audio

  • Fixed installed sound zones

Technical details

Technical Specifications

System

Output configuration
Low impedance; 70/100 V direct drive in bridged mode only
Cooling
Convection

Connectivity

Output channels
4
Published output
60 W per channel, single channel driven at 4 Ω or 8 Ω
Inputs
Four balanced analogue line inputs
Output channels
4.
Published output
60 W per channel, single channel driven at 4 Ω or 8 Ω.

Physical

Rack format
Half-rack, 1RU

General

Model
AMP-A460H
Manufacturer part number
AMP-A460H
Bridged operation
120 W per bridged pair; follow the specified operating mode
Filter
Switchable 80 Hz high-pass per channel pair

In the box

What's Included

  • One Biamp AMP-A460H amplifier; confirm regional mains cord and connector pack

Installation

Installation & Mounting

Recommended Compatible Equipment

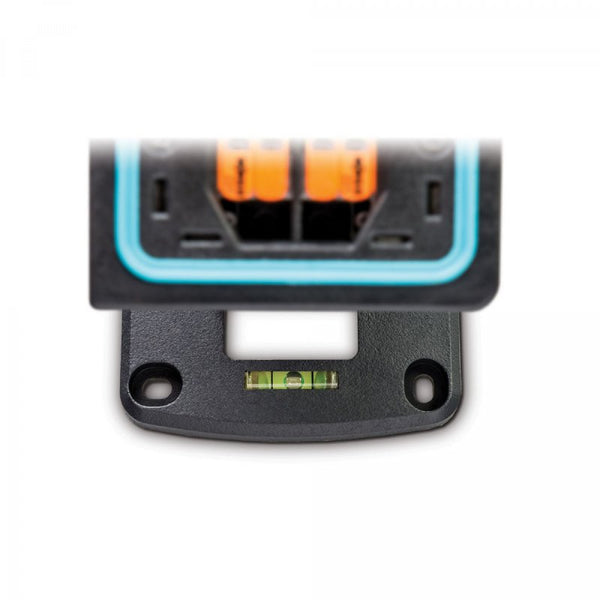

Biamp MASK4C-BL 4.25" Design Two-way Loudspeaker with ClickMount System. An 8 Ω speaker option for a correctly configured standard channel. Check multi-channel loading, available output and loudspeaker limits.

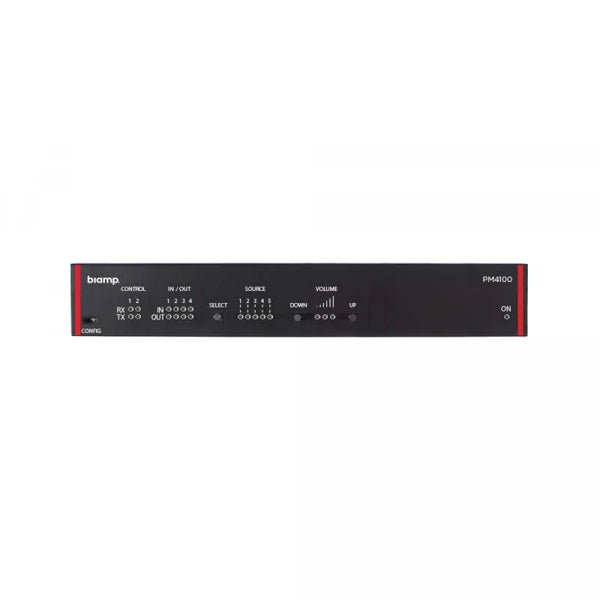

Biamp PM4100 Stereo Preamplifier. An upstream stereo preamplifier option. Match output level and connector wiring to the amplifier inputs.

Installation

Check speaker mode, per-channel impedance or transformer-tap total, gain and output limits. Provide the ventilation and rack clearance specified in the manual. Confirm mains voltage, regional cord, signal cabling and any upstream processing required by the speakers.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your AMP-A460H quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp AMP-A460H used for?

The Biamp AMP-A460H is a 4-channel Class D power amplifier for permanent commercial audio. Its published output is 60 W per channel, single channel driven at 4 Ω or 8 Ω. Use it with a suitable upstream mixer or processor and correctly matched passive speakers.

How should I match the speakers to this amplifier?

Use the specified output configuration: Low impedance; 70/100 V direct drive in bridged mode only. An 8 Ω speaker option for a correctly configured standard channel. Check multi-channel loading, available output and loudspeaker limits. Avoid clipped operation and leave suitable system headroom.

Can the channels be bridged?

120 W per bridged pair; follow the specified operating mode. Bridging changes the required wiring and load; use the manufacturer's exact instructions and do not treat two independent channels as a bridged output without configuration.

Which equipment should I consider with AMP-A460H?

Biamp MASK4C-BL 4.25" Design Two-way Loudspeaker with ClickMount System. An 8 Ω speaker option for a correctly configured standard channel. Check multi-channel loading, available output and loudspeaker limits.

Biamp PM4100 Stereo Preamplifier. An upstream stereo preamplifier option. Match output level and connector wiring to the amplifier inputs.

What is included with AMP-A460H?

One Biamp AMP-A460H amplifier; confirm regional mains cord and connector pack. Confirm the exact regional pack on the quotation.

What should I check before installing AMP-A460H?

Check speaker mode, per-channel impedance or transformer-tap total, gain and output limits. Provide the ventilation and rack clearance specified in the manual. Confirm mains voltage, regional cord, signal cabling and any upstream processing required by the speakers.

Can Corporate AV help specify AMP-A460H for a UAE project?

Share your AMP-A460H quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp AMP-A460H quotation in the UAE?

Contact Corporate AV about Biamp AMP-A460H. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
