Biamp

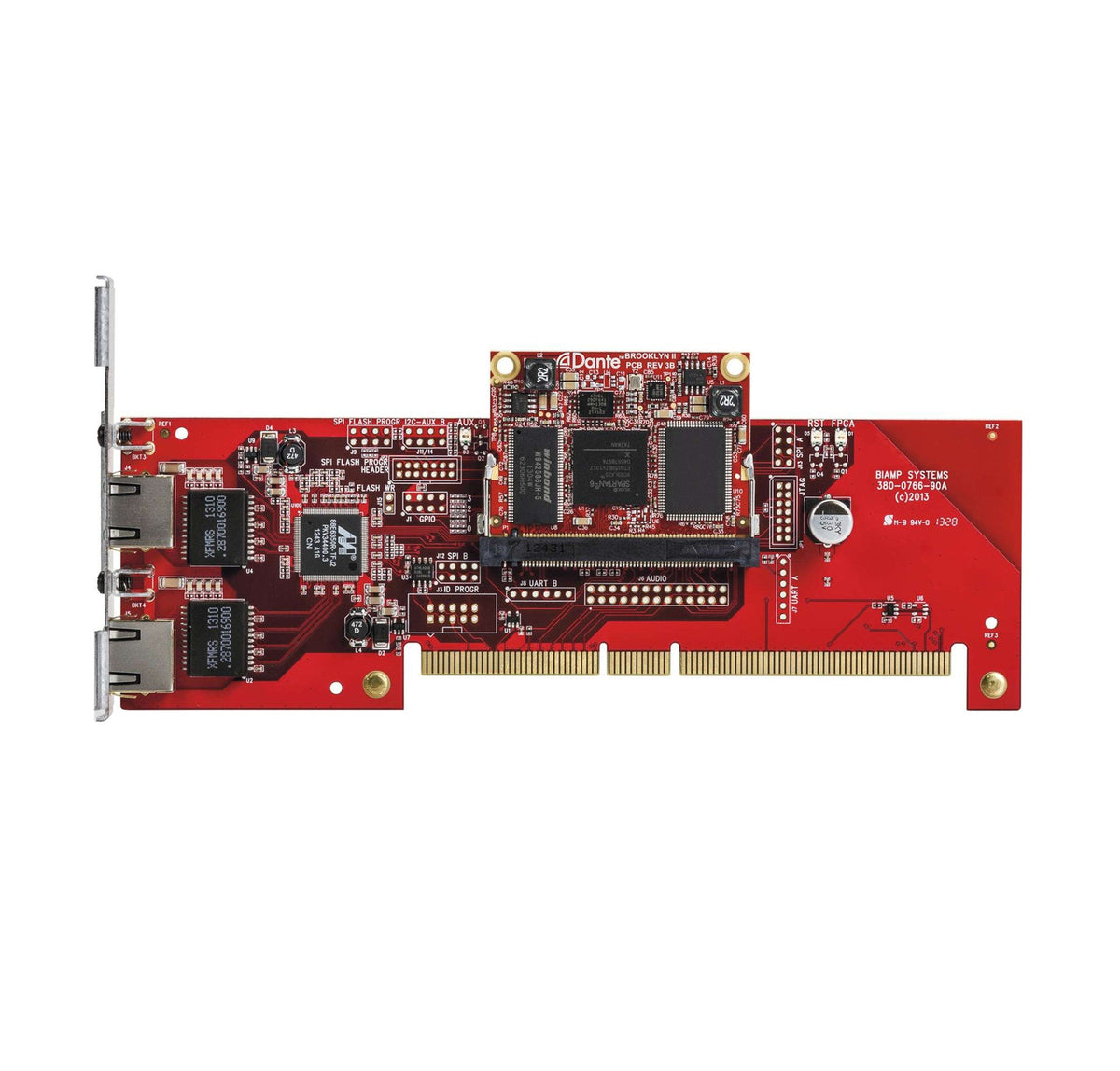

Biamp Tesira DAN-1 CK

Model 76476MPN Tesira DAN-1 CK

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Dante channel capacity: Up to 64 × 64
  • Supported hosts: Tesira SERVER and SERVER-IO
  • Network connections: Dual RJ45 primary and secondary
  • Simultaneous Dante flows: Up to 32 × 32
  • Installation: Factory or supported field installation
Biamp Tesira DAN-1 CK
  • Authorized Biamp Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Biamp Tesira DAN-1 CK?

The Biamp Tesira DAN-1 CK is a Dante networking card kit for Tesira SERVER and SERVER-IO. It adds up to 64 input and 64 output network-audio channels, allowing a configured Tesira system to exchange audio with compatible Dante equipment. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

DAN-1 is an optional internal interface card. It requires a supported Tesira chassis, available networking-card capacity and a programmed system; it is not an external Dante adapter or a replacement for a classic TesiraFORTÉ network interface.

Why this product

Key Benefits

  • Dante channel capacity

    Up to 64 × 64.

  • Supported hosts

    Tesira SERVER and SERVER-IO.

  • Network connections

    Dual RJ45 primary and secondary.

  • Simultaneous Dante flows

    Up to 32 × 32.

  • Installation

    Factory or supported field installation.

Use cases

Applications

  • Configured commercial audio or conferencing installations

  • Corporate and education projects with a documented Tesira system design

Technical details

Technical Specifications

Connectivity

Dante channel capacity
Up to 64 × 64
Network connections
Dual RJ45 primary and secondary
Simultaneous Dante flows
Up to 32 × 32

General

Model
Tesira DAN-1 CK
Manufacturer part number
Tesira DAN-1 CK
Supported hosts
Tesira SERVER and SERVER-IO
Installation
Factory or supported field installation
Routing
Explicit Dante input/output blocks in Tesira software

In the box

What's Included

  • One Biamp Tesira DAN-1 CK card kit

Installation

Installation & Mounting

Recommended Compatible Equipment

Biamp Tesira SERVER-IO Configurable I/O DSP. Supported host platform. Specify the required card population, processing resources and audio network as a complete configuration.

Installation

Confirm the host chassis, available networking-card capacity, firmware and the compiled Tesira design. Plan primary/secondary network behaviour and Dante clocking and subscriptions. Install the card according to the host guide and validate the complete audio route.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your Tesira DAN-1 CK quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Biamp Tesira DAN-1 CK used for?

The Biamp Tesira DAN-1 CK is a Dante networking card kit for Tesira SERVER and SERVER-IO. It adds up to 64 input and 64 output network-audio channels, allowing a configured Tesira system to exchange audio with compatible Dante equipment.

Will DAN-1 fit a TesiraFORTÉ fixed-I/O DSP?

It is an internal option for Tesira SERVER and SERVER-IO. It is not a field-conversion card for a classic fixed-I/O TesiraFORTÉ.

Does 64 × 64 Dante mean 64 channels of AEC?

No. Dante transport, available processing resources and acoustic-echo-cancellation capacity are separate parts of the system design.

Which equipment should I consider with Tesira DAN-1 CK?

Biamp Tesira SERVER-IO Configurable I/O DSP. Supported host platform. Specify the required card population, processing resources and audio network as a complete configuration.

What is included with Tesira DAN-1 CK?

One Biamp Tesira DAN-1 CK card kit. Confirm the exact regional pack on the quotation.

What should I check before installing Tesira DAN-1 CK?

Confirm the host chassis, available networking-card capacity, firmware and the compiled Tesira design. Plan primary/secondary network behaviour and Dante clocking and subscriptions. Install the card according to the host guide and validate the complete audio route.

Can Corporate AV help specify Tesira DAN-1 CK for a UAE project?

Share your Tesira DAN-1 CK quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Biamp Tesira DAN-1 CK quotation in the UAE?

Contact Corporate AV about Biamp Tesira DAN-1 CK. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
