Bose ShowMatch SM20 DeltaQ Array Module
Model 730999-8860
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Vertical coverage: 20°
- Driver configuration: Two 8-inch woofers; four compression drivers
- Frequency range (-10 dB): 59 Hz–18 kHz
- Nominal impedance: 8 Ω LF + 6 Ω HF
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

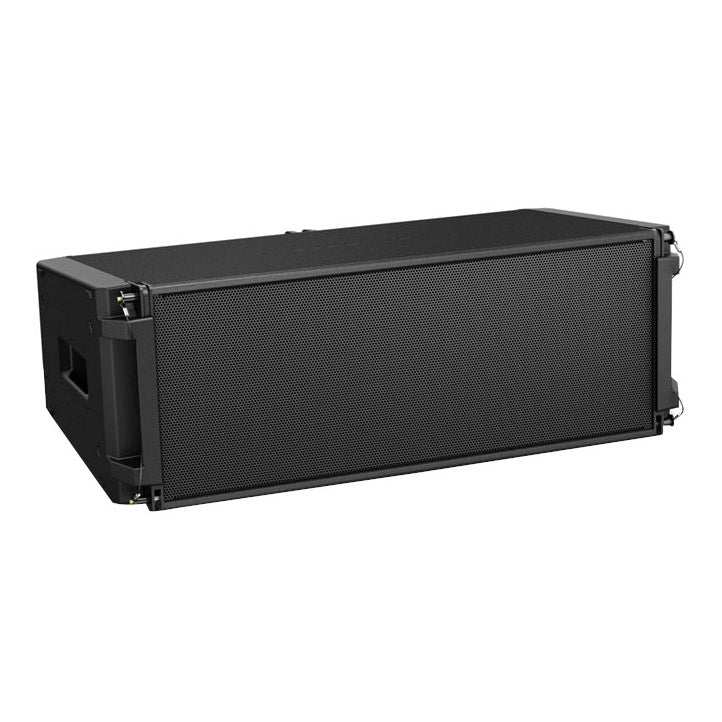

What is the Bose ShowMatch SM20 DeltaQ Array Module?
Bose ShowMatch SM20 is a passive DeltaQ array module with 20° vertical coverage. It combines two 8-inch woofers and four compression drivers for an engineered array whose coverage and rigging must be designed as a complete system. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
SM20 is a bi-amplified loudspeaker module, not a self-powered PA cabinet. It requires separate LF/HF amplified feeds and an active two-way DSP crossover.
- Driver configuration: Two 8-inch woofers; four compression drivers.
- Frequency range (-10 dB): 59 Hz–18 kHz.
Use cases
Applications
-
Engineered venue arrays
-
Performance and presentation reinforcement
Technical details
Technical Specifications
System
- Driver configuration
- Two 8-inch woofers; four compression drivers
- Crossover
- 750 Hz acoustic; active two-way DSP required
Frequency
- Frequency range (-10 dB)
- 59 Hz–18 kHz
Performance & Coverage
- Vertical coverage
- 20°
- Listed horizontal coverage
- 100°; confirm supplied/optional waveguide arrangement
- Vertical coverage
- 20°.
- Listed horizontal coverage
- 100°; confirm supplied/optional waveguide arrangement.
Power
- Nominal impedance
- 8 Ω LF + 6 Ω HF
- Continuous power handling
- 450 W LF + 100 W HF
- Nominal impedance
- 8 Ω LF + 6 Ω HF.
Physical
- Dimensions (H × W × D)
- 303 × 793 × 461 mm
- Weight
- 29.0 kg
General
- Model
- ShowMatch SM20 DeltaQ Array Module
- Manufacturer part number
- 730999-8860
In the box
What's Included
-
One ShowMatch SM20 module
-
Two 70° waveguide panels
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment

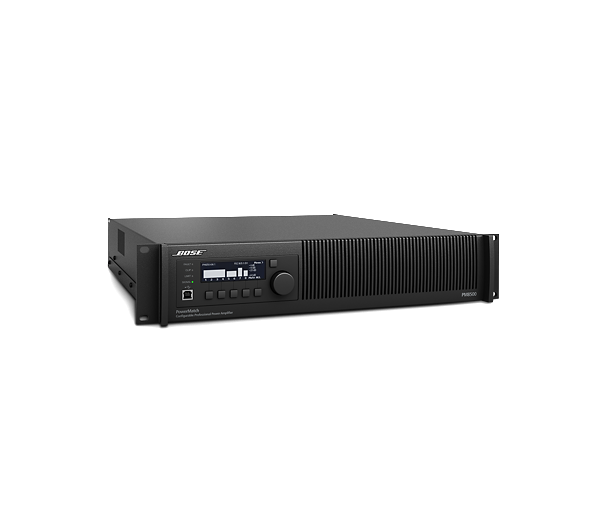

Bose PowerMatch PM8500N Configurable Multichannel Amplifier (8x500w) . PowerMatch PM8500N is a documented legacy amplifier option for ShowMatch, with the specified LF/HF channel grouping and DSP. Confirm availability and the complete channel design; it is not a one-channel-per-module connection.

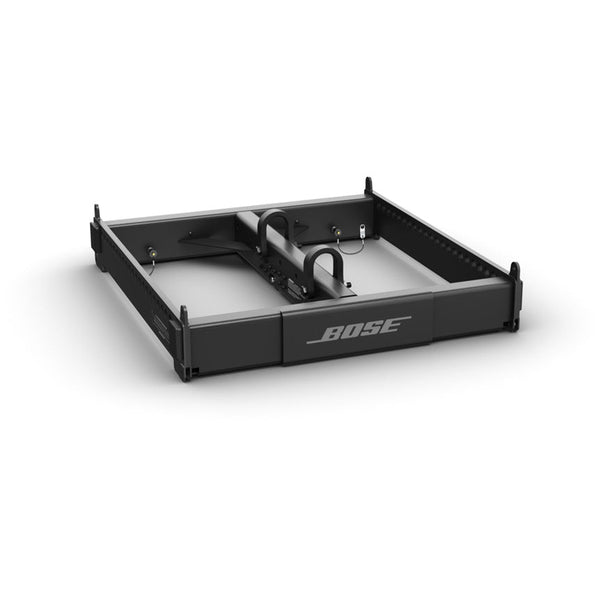

Bose ShowMatch SMAF Array frame. SMAF is a frame option for a documented ShowMatch array. The actual frame, suspension points and accessories must follow the engineered module arrangement.
Installation
Use the manufacturer DSP preset, separate LF/HF feeds and documented wiring. Have the entire array designed, load-checked and rigged using model-specific hardware. Confirm the actual waveguide configuration, array size and amplifier channel plan before ordering.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your ShowMatch SM20 DeltaQ Array Module quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
