Bose

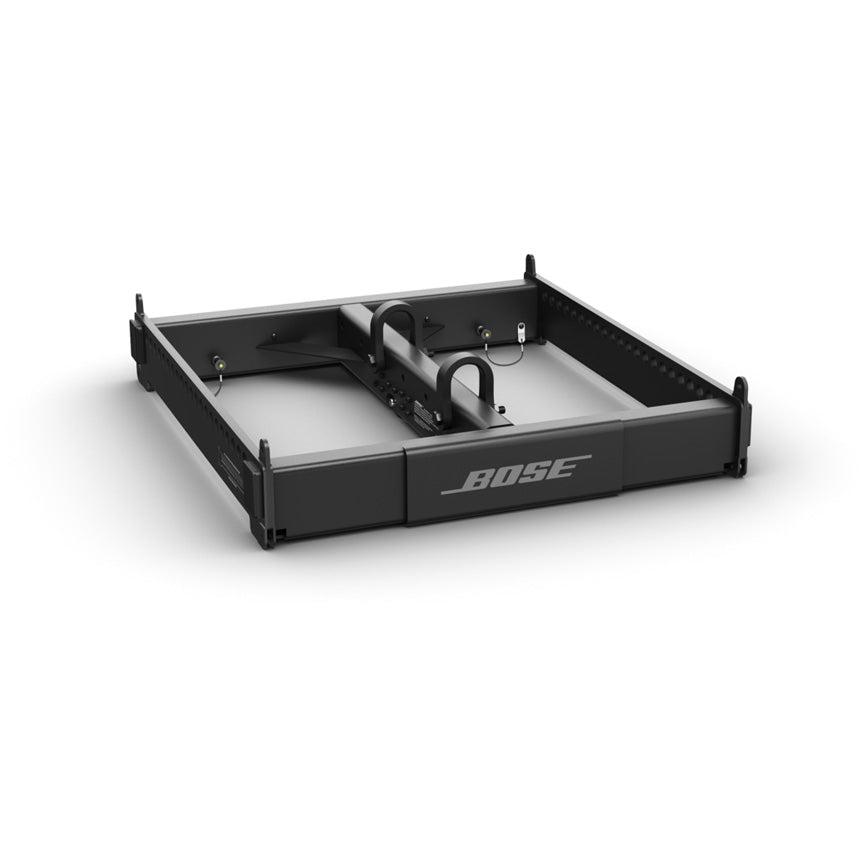

Bose ShowMatch SMAF Array Frame

Model 770300-0110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • System: ShowMatch
  • Use: Suspended arrays with subwoofer modules; documented ground stacks
  • Dimensions (H × W × D): 149 × 727 × 762 mm
  • Net weight: 37.6 kg
  • Environment: Indoor
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose ShowMatch SMAF Array Frame
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ShowMatch SMAF Array Frame?

Use the SMAF frame for ShowMatch suspended arrays containing subwoofers or for a documented ground-stack arrangement of subwoofer and mid/high modules. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

Use the SMAF frame for ShowMatch suspended arrays containing subwoofers or for a documented ground-stack arrangement of subwoofer and mid/high modules..

Why this product

Key Benefits

  • System

    ShowMatch.

  • Use

    Suspended arrays with subwoofer modules; documented ground stacks.

  • Dimensions (H × W × D)

    149 × 727 × 762 mm.

  • Environment

    Indoor.

Use cases

Applications

  • Engineered installed PA systems

  • ShowMatch system specification

Technical details

Technical Specifications

Physical

Dimensions (H × W × D)
149 × 727 × 762 mm
Net weight
37.6 kg
Net weight
37.6 kg.

Model & Identification

Model
ShowMatch SMAF Array Frame
Manufacturer part number
770300-0110

General

System
ShowMatch
Use
Suspended arrays with subwoofer modules; documented ground stacks
Environment
Indoor

In the box

What's Included

  • One SMAF frame

  • Four quick pins

  • Installation guide

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose ShowMatch SMS118 Subwoofer. Confirm the connection, power and installation arrangement for your system.

Bose ShowMatch SM10 DeltaQ Array Loudspeaker. Confirm the connection, power and installation arrangement for your system.

Installation

Have a qualified installer specify the complete mounting system, structural attachment, load and aiming arrangement using the current manufacturer instructions. The component alone does not establish the allowable load of the complete installation. Check the latest frame product notice: shackle adapters are no longer included with SMAF/SMAFT frames.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your ShowMatch SMAF Array Frame quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose ShowMatch SMAF Array Frame used for?

Use the SMAF frame for ShowMatch suspended arrays containing subwoofers or for a documented ground-stack arrangement of subwoofer and mid/high modules.

Can SMAF suspend ShowMatch subwoofer modules?

Yes. SMAF supports the documented SMS118 arrangement. Confirm the exact module sequence, suspension points and calculated loads; the T-bar SMAFT is a different frame.

What information is needed to select this accessory?

Provide the exact speaker modules, array or mounting drawing, intended orientation and project location. Confirm the current rigging instructions and all supporting components before ordering.

Which equipment should I consider with ShowMatch SMAF Array Frame?

Bose ShowMatch SMS118 Subwoofer. Confirm the precise connection and required accessories with the complete system specification.

Bose ShowMatch SM10 DeltaQ Array Loudspeaker. Confirm the precise connection and required accessories with the complete system specification.

What is included with ShowMatch SMAF Array Frame?

One SMAF frame; Four quick pins; Installation guide. Confirm the exact regional pack on the quotation.

What should I check before installing ShowMatch SMAF Array Frame?

Have a qualified installer specify the complete mounting system, structural attachment, load and aiming arrangement using the current manufacturer instructions. The component alone does not establish the allowable load of the complete installation. Check the latest frame product notice: shackle adapters are no longer included with SMAF/SMAFT frames.

Can Corporate AV help specify ShowMatch SMAF Array Frame for a UAE project?

Share your ShowMatch SMAF Array Frame quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Bose ShowMatch SMAF Array Frame quotation in the UAE?

Contact Corporate AV about ShowMatch SMAF Array Frame (770300-0110). Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
