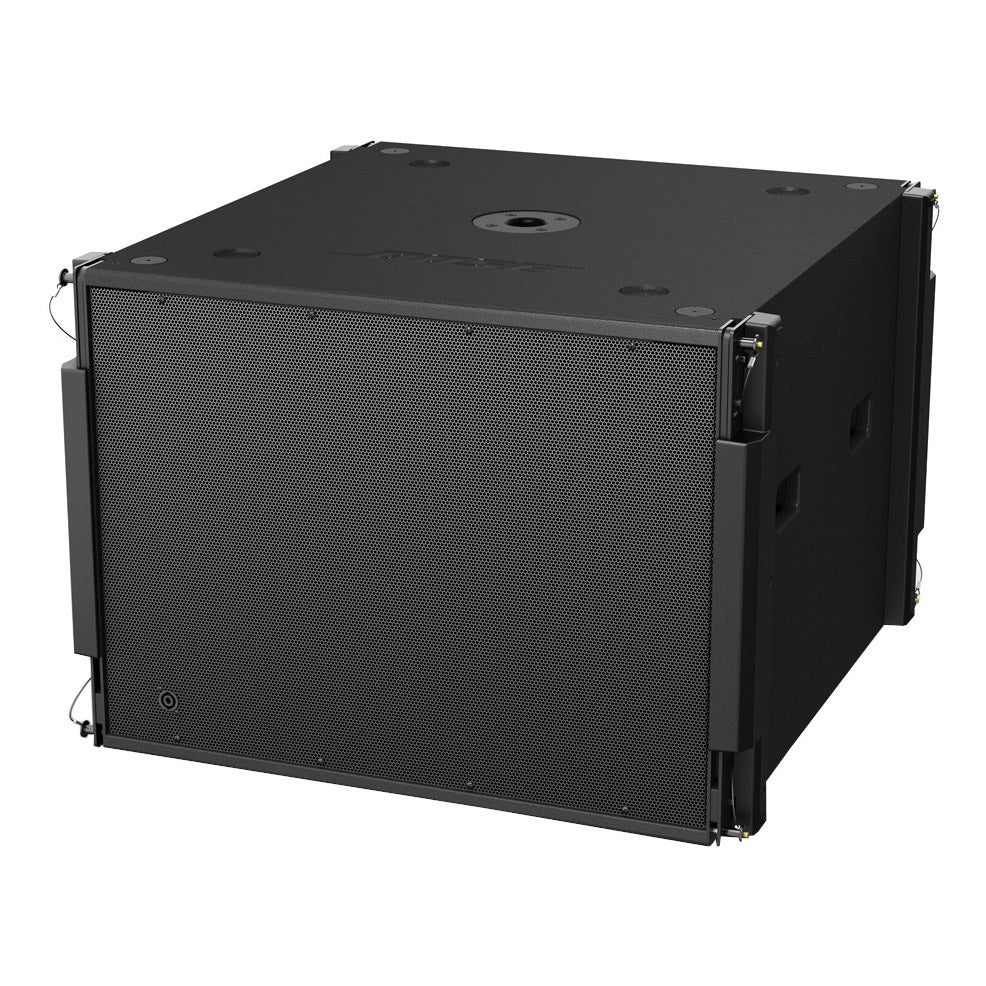

Bose ShowMatch SMS118 Passive Subwoofer

Model 734302-0110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Woofer: 18-inch high-excursion
  • Frequency range (-10 dB): 29–300 Hz
  • Nominal impedance: 4 Ω
  • Continuous power handling: 750 W
  • DSP crossover: Active crossover required; documented range 60–100 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose ShowMatch SMS118 Passive Subwoofer
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose ShowMatch SMS118 Passive Subwoofer?

The Bose ShowMatch SMS118 is an 18-inch passive subwoofer for a designed ShowMatch system. It can form part of documented flown or ground-stacked arrangements, with the correct frame and amplifier configuration. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

The Bose ShowMatch SMS118 is an 18-inch passive subwoofer for a designed ShowMatch system.

  • Frequency range (-10 dB): 29–300 Hz.
  • DSP crossover: Active crossover required; documented range 60–100 Hz.

Use cases

Applications

  • ShowMatch low-frequency reinforcement

  • Engineered performance venue systems

Technical details

Technical Specifications

System

Woofer
18-inch high-excursion
DSP crossover
Active crossover required; documented range 60–100 Hz
Woofer
18-inch high-excursion.

Frequency

Frequency range (-10 dB)
29–300 Hz

Power

Nominal impedance
4 Ω
Continuous power handling
750 W
Nominal impedance
4 Ω.
Continuous power handling
750 W.

Physical

Dimensions (H × W × D)
540 × 765 × 775 mm
Weight
61.9 kg

General

Model
ShowMatch SMS118 Passive Subwoofer
Manufacturer part number
734302-0110

In the box

What's Included

  • One ShowMatch SMS118 subwoofer

  • Installation guide

Installation

Installation & Mounting

Recommended Compatible Equipment

Bose PowerMatch PM8500N Configurable Multichannel Amplifier (8x500w)  . Bose documents PowerMatch channel grouping for SMS118, including Quad low-impedance operation. Confirm the exact amplifier, wiring, preset and load against the design.

Bose ShowMatch SMAF Array frame. SMAF is the ShowMatch frame used for documented subwoofer-containing arrays. Select the full suspension arrangement separately.

Installation

Use the Bose subwoofer preset/crossover and amplifier configuration, and assess the complete mechanical arrangement. SMAFT is not the frame for subwoofer modules. Do not infer allowable array loads from cabinet quantity alone.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your ShowMatch SMS118 Passive Subwoofer quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the Bose ShowMatch SMS118 Passive Subwoofer used for?

The Bose ShowMatch SMS118 is an 18-inch passive subwoofer for a designed ShowMatch system. It can form part of documented flown or ground-stacked arrangements, with the correct frame and amplifier configuration.

Does SMS118 require a separate amplifier?

Yes. It is a 4-ohm passive subwoofer and needs an appropriate amplified feed with DSP crossover and protection.

Can the SMAFT T-bar suspend SMS118?

No. Use the documented SMAF arrangement for arrays containing subwoofer modules, with the complete rigging and load design.

Which equipment should I consider with ShowMatch SMS118 Passive Subwoofer?

Bose PowerMatch PM8500N Configurable Multichannel Amplifier (8x500w)  . Bose documents PowerMatch channel grouping for SMS118, including Quad low-impedance operation. Confirm the exact amplifier, wiring, preset and load against the design.

Bose ShowMatch SMAF Array frame. SMAF is the ShowMatch frame used for documented subwoofer-containing arrays. Select the full suspension arrangement separately.

What is included with ShowMatch SMS118 Passive Subwoofer?

One ShowMatch SMS118 subwoofer; Installation guide. Confirm the exact regional pack on the quotation.

What should I check before installing ShowMatch SMS118 Passive Subwoofer?

Use the Bose subwoofer preset/crossover and amplifier configuration, and assess the complete mechanical arrangement. SMAFT is not the frame for subwoofer modules. Do not infer allowable array loads from cabinet quantity alone.

Can Corporate AV help specify ShowMatch SMS118 Passive Subwoofer for a UAE project?

Share your ShowMatch SMS118 Passive Subwoofer quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a Bose ShowMatch SMS118 Passive Subwoofer quotation in the UAE?

Contact Corporate AV about ShowMatch SMS118 Passive Subwoofer (734302-0110). Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
