Bose

Bose CSP-1248 Commercial Sound Processor

Model 808456-4110

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Analogue Audio Inputs: 12 (4 unbalanced, summed-mono + 8 balanced, mic/line)
  • Analogue Line Outputs: 4 balanced, line
  • Digital Audio: 8 AmpLink out
  • AEC: Not included
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose CSP-1248
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose CSP-1248?

The Bose CSP-1248 is a fixed-architecture commercial sound processor for routing, equalisation and management of music and paging zones. Corporate AV can specify the compatible equipment, cabling and configuration for a project in Dubai, Abu Dhabi or elsewhere in the UAE.

This commercial sound processor is one component of a complete audio installation. Configure the input sources, output zones, routing, EQ and room controls for the actual site. Distinguish the balanced analogue outputs from the separate AmpLink outputs; the model number is not a count of analogue speaker outputs.

  • AEC: Not included.
  • System specification: Include the device, compatible interfaces, power and commissioning requirements in the equipment schedule.

Use cases

Applications

  • Commercial audio systems

    Coordinate the device with the specified source, control and output equipment.

  • Corporate AV projects

    Plan the wiring, equipment locations and operating requirements before installation.

  • System upgrades

    Confirm compatibility with the existing model, firmware and signal connections.

Technical details

Technical Specifications

System

Configuration
Browser-based CSP configuration workflow

Connectivity

Analogue Audio Inputs
12 (4 unbalanced, summed-mono + 8 balanced, mic/line)
Analogue Line Outputs
4 balanced, line
Mains Input
85–264 VAC, 50/60 Hz
Analogue Audio Inputs
12 (4 unbalanced, summed-mono + 8 balanced, mic/line).
Analogue Line Outputs
4 balanced, line.

Physical

Dimensions (H × W × D)
1.7 in × 19.0 in × 8.5 in (44 mm × 483 mm × 215 mm)

General

Model
CSP-1248
Manufacturer Part Number
808456-4110
Digital Audio
8 AmpLink out
AEC
Not included
Digital Audio
8 AmpLink out.

In the box

What's Included

  • (1) 3-pin Euroblock connector

  • (11) cable ties

  • (1) CSP-1248

  • (1) 4-pin Euroblock connector

  • (1) AC power cord

  • (2) 2-pin Euroblock connectors

  • (5) 6-pin Euroblock connectors

  • (1) 9-pin Euroblock connector

  • (1) installation guide

Installation

Installation & Mounting

Recommended Compatible Equipment

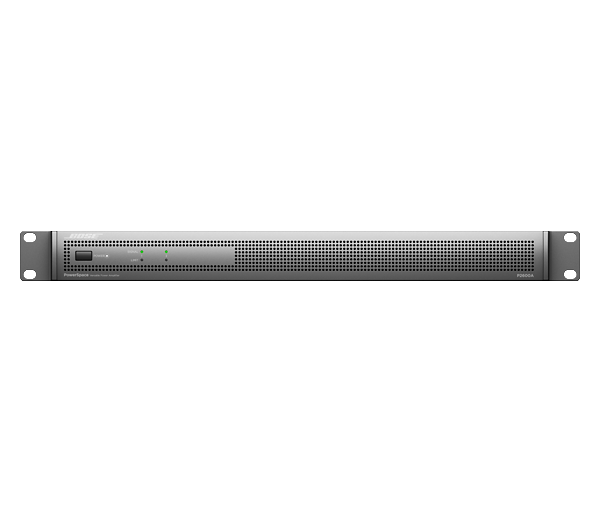

Bose PowerSpace P2600A 2-Channel Amplifier is a compatible amplification option for a documented analogue-line or AmpLink connection. Match signal routing, speaker circuits and required amplifier quantity; the processor itself does not power passive speakers.

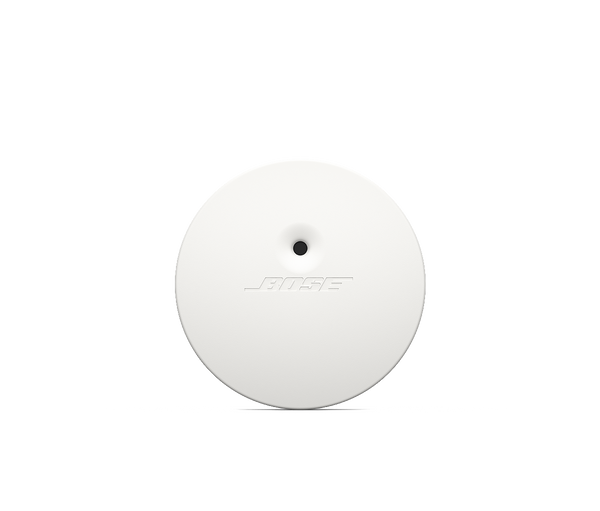

Bose AVM-1 Sense Microphone supplies an ambient-noise reference for the processor's supported AutoVolume function. It is not a conferencing or performance microphone.

Installation

Configure the input sources, output zones, routing, EQ and room controls for the actual site. Distinguish the balanced analogue outputs from the separate AmpLink outputs; the model number is not a count of analogue speaker outputs.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share the CSP-1248 quantity, existing equipment, required audio functions and project location with Corporate AV for an itemised supply and commissioning proposal.

Complete your solution

Recommended Accessories

Expert FAQs

What does the Bose CSP-1248 do?

A fixed-architecture commercial sound processor for routing, equalisation and management of music and paging zones.

What is the analogue audio inputs specification of CSP-1248?

Analogue Audio Inputs: 12 (4 unbalanced, summed-mono + 8 balanced, mic/line). Match this to the complete system's interfaces and channel requirements.

Does CSP-1248 include acoustic echo cancellation?

Bose lists AEC as not included for CSP-1248. Choose a documented conferencing processor when acoustic echo cancellation is required; ordinary routing and EQ do not substitute for AEC.

Which complementary equipment should I consider with CSP-1248?

Bose PowerSpace P2600A 2-Channel Amplifier is a compatible amplification option for a documented analogue-line or AmpLink connection. Match signal routing, speaker circuits and required amplifier quantity; the processor itself does not power passive speakers. Bose AVM-1 Sense Microphone. supplies an ambient-noise reference for the processor's supported AutoVolume function. It is not a conferencing or performance microphone.

What is included with CSP-1248?

(1) 3-pin Euroblock connector; (11) cable ties; (1) CSP-1248; (1) 4-pin Euroblock connector; (1) AC power cord; (2) 2-pin Euroblock connectors; (5) 6-pin Euroblock connectors; (1) 9-pin Euroblock connector; (1) installation guide. Confirm the regional pack and any additional power, wiring or system equipment on the quotation.

What setup is needed for CSP-1248?

Configure the input sources, output zones, routing, EQ and room controls for the actual site. Distinguish the balanced analogue outputs from the separate AmpLink outputs; the model number is not a count of analogue speaker outputs.

What information does Corporate AV need to specify CSP-1248?

Provide the existing device models, input/output requirements, room or zone layout, required quantity and UAE installation location. Include cabling, power and commissioning in the scope.

How can I request a Bose CSP-1248 quotation in the UAE?

Contact Corporate AV for CSP-1248 (808456-4110) with your system requirements and quantity. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, lead time, warranty and the complete installation or supply scope.
