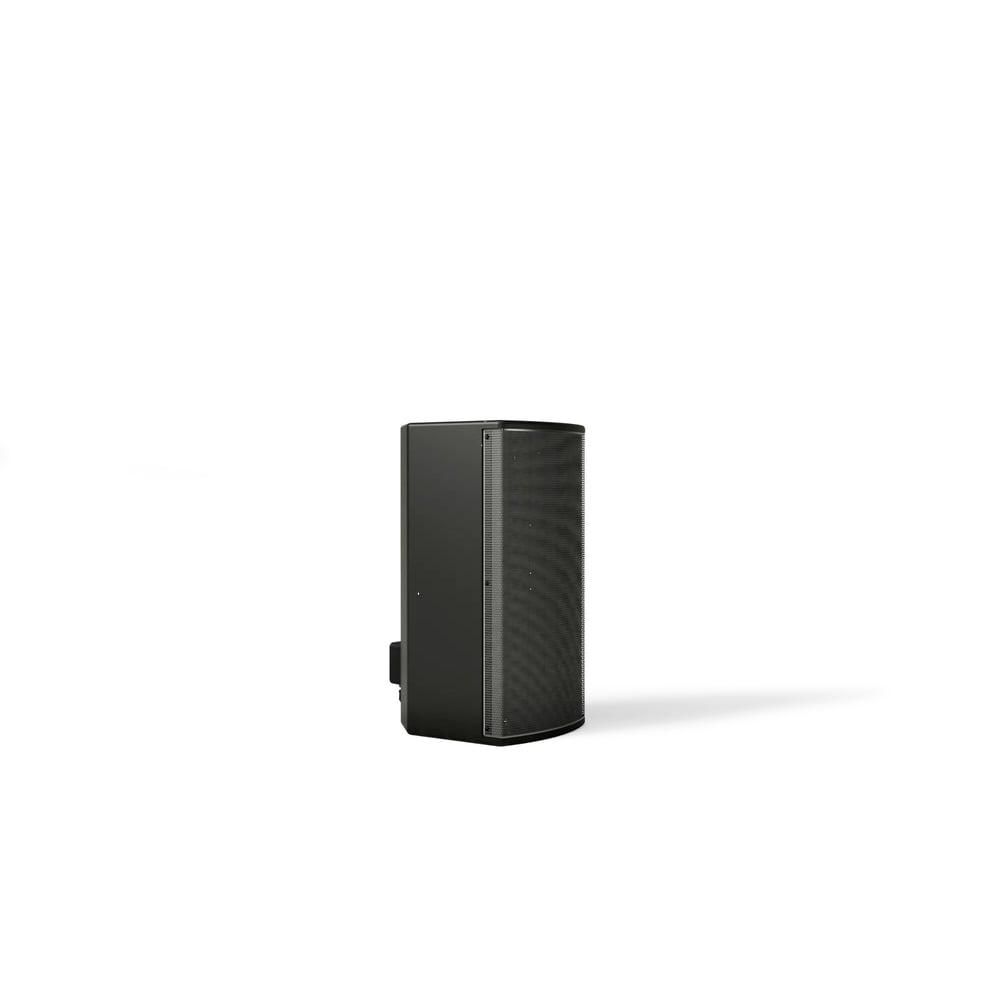

Bose ArenaMatch Utility AMU108-120 Black
Model 893798-0100
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver configuration: One 8-inch woofer and compression driver
- Coverage: 120° × 60°, rotatable horn in horizontal configuration
- Frequency range (-10 dB): 80 Hz–18 kHz
- Continuous power handling (AES): 250 W
- Continuous power handling (Bose extended-lifecycle): 200 W
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose ArenaMatch Utility AMU108-120 Black?
The black Bose AMU108-120 is a passive, IP55-rated installation speaker for music and speech indoors or outdoors. Its wider 120-degree horn option suits layouts needing broader coverage than the standard AMU108. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
AMU108-120 receives amplified audio through a 70/100 V transformer or 8-ohm bypass connection. The selected tap, mounting orientation, speaker quantity and room or outdoor layout determine the system design.
Why this product
Key Benefits
-
Driver configuration
One 8-inch woofer and compression driver.
-
Frequency range (-10 dB)
80 Hz–18 kHz.
-
Continuous power handling (AES)
250 W.
-
Continuous power handling (Bose extended-lifecycle)
200 W.
Use cases
Applications
-
Hospitality and restaurant audio
-
Indoor or outdoor music and announcements
-
Distributed venue and activity-space sound
Technical details
Technical Specifications
System
- Driver configuration
- One 8-inch woofer and compression driver
Frequency
- Frequency range (-10 dB)
- 80 Hz–18 kHz
Performance & Coverage
- Coverage
- 120° × 60°, rotatable horn in horizontal configuration
- Coverage
- 120° × 60°, rotatable horn in horizontal configuration.
Power
- Continuous power handling (AES)
- 250 W
- Continuous power handling (Bose extended-lifecycle)
- 200 W
- 100 V taps
- 10, 20, 40, 80 W
- 70 V taps
- 5, 10, 20, 40, 80 W
Connectivity
- Connection
- 70/100 V transformer or 8 Ω bypass
Physical
- Dimensions (L × W × D), input cover fitted
- 235 × 470 × 279 mm
- Speaker weight, without bracket
- 10.6 kg
- Colour
- Black
Environmental
- Environmental rating
- IP55, with specified input cover and installation
General
- Model
- ArenaMatch Utility AMU108-120 Black
- Manufacturer part number
- 893798-0100
In the box
What's Included
-
One black AMU108-120 loudspeaker
-
U-bracket
-
Input cover
-
Four M8 screws
-
Four M4 screws
-
Two rubber washers
-
T3 square drive
-
Installation guide
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose PowerShareX PSX2404D Networkable Power Amplifier. PowerShareX PSX2404D is an amplification option with AMU presets. Configure the output mode, gain, high-pass filter and limiting for the selected AMU108-120 circuit; total speaker load and power allocation must be checked.
Bose MB210-WR Outdoor Subwoofer | Color: Black. MB210-WR can add bass to a designed system. It needs its own appropriate amplifier channel and crossover/protection settings; it is not included with this speaker.
Installation
Use the input cover and specified cable-entry sealing for the environment. Confirm the mounting structure and horn orientation. Configure the 80 Hz high-pass filter at a minimum 12 dB/octave, the appropriate preset and output limiting. Match the amplifier to the tap total or combined 8-ohm circuit load.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your ArenaMatch Utility AMU108-120 Black quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
