Bose FreeSpace FS2C 2.25" 16W In-Ceiling Loudspeaker, White (Pair)
Model 841154-0420
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.aeDatasheet: Download PDF
- 2.25" (57 mm) full-range driver, 83 Hz to 19 kHz
- 16 W continuous, 64 W peak, 86 dB sensitivity
- 70 V taps 1 to 16 W, 100 V taps 2 to 16 W, 16 Ω bypass
- 160 mm ceiling cutout, EN 54-24 certified
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose FreeSpace FS2C?

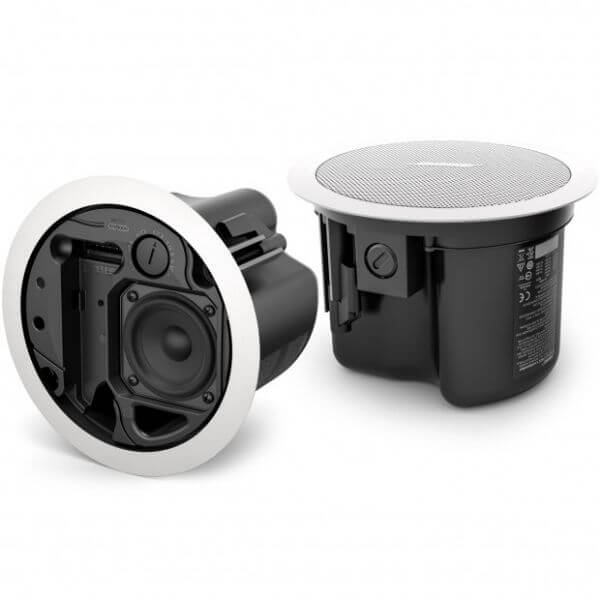

The Bose FreeSpace FS2C is a compact in-ceiling loudspeaker with a 2.25 inch (57 mm) driver, 16 W continuous power handling and 70 V / 100 V transformer taps, sold as a pair in white. It covers 150° and fits a 160 mm ceiling cutout, for background music and voice announcements in offices, retail stores and hospitality spaces across the UAE. It is certified to EN 54-24:2008 for voice alarm systems in buildings.
The Bose FreeSpace FS2C is the compact in-ceiling model of the Bose Professional FreeSpace FS loudspeaker line, built for background music and paging in commercial spaces. It has a 2.25 inch full-range driver, a frequency range of 83 Hz to 19 kHz and 150° coverage, and it connects to 70 V / 100 V distributed systems or directly at 16 Ω.
Why this product
Key Benefits
-
Shared FreeSpace FS voicing
The FS2C shares its voicing with every FreeSpace FS model, so tonal quality stays consistent when it is combined with larger FS speakers in the same system.
-
Clear voice and smooth music
The 2.25 inch full-range transducer is tuned for intelligible announcements and smooth background music response.
-
Wide 150° coverage
A 150° horizontal and vertical coverage pattern spreads sound evenly, so fewer speakers are needed to cover a space.
-
Flexible transformer taps
Taps at 1, 2, 4, 8 and 16 W on 70 V lines and 2, 4, 8 and 16 W on 100 V lines, plus a 16 Ω bypass, let each speaker be set to the level its area needs.
-
Quick installation
Two mounting arms, a front-baffle Euroblock input and a cutout template make fitting into a 160 mm hole straightforward, and a safety cable point is built in.
-
Voice alarm and plenum ready
The FS2C is certified to EN 54-24:2008 for voice alarm systems and is suitable for plenum spaces in compliance with UL 2043.
-
Paintable white enclosure
The engineered-plastics baffle with steel backcan comes in white similar to RAL 9003, has a rotatable, removable logo, and the current UL 1480A version can be painted to match the ceiling.
Use cases
Applications
-
Offices and meeting areas
Background music and paging from a compact white speaker that blends into light ceilings.
-
Retail stores
Even 150° coverage keeps music and announcements consistent across the shop floor.
-
Hotels, restaurants and cafes
A small 160 mm cutout keeps the speaker discreet in lobbies, corridors and dining areas.
-
Voice alarm systems
EN 54-24 certification allows use in voice alarm systems for fire detection in buildings.
Technical details
Technical Specifications
System
- System Type
- Passive in-ceiling loudspeaker
- Driver
- 1 × 2.25 in (57 mm) full-range
- Recommended Crossover
- 85 Hz high-pass, 24 dB per octave minimum
Frequency
- Frequency Range
- 83 Hz to 19,000 Hz (-10 dB)
Performance & Coverage
- Sensitivity
- 86 dB SPL (1 W at 1 m)
- Maximum SPL
- 98 dB at 1 m (calculated)
- Coverage
- 150° horizontal, 150° vertical
Power
- Power Handling
- 16 W continuous, 64 W peak
- Nominal Impedance
- 16 Ω (transformer bypass)
- Transformer Taps 70V
- 1, 2, 4, 8, 16 W, bypass
- Transformer Taps 100V
- 2, 4, 8, 16 W, bypass
Connectivity
- Input Connector
- Euroblock, front baffle
Physical
- Ceiling Cutout Diameter
- 160 mm (6.3 in) diameter
- Dimensions
- 182 mm diameter × 132 mm depth (loudspeaker); 127 mm × 125 mm (backcan)
- Weight
- 1.6 kg per loudspeaker with grille; 4.4 kg shipping weight per pair
- Colour
- White (similar to RAL 9003)
- Enclosure
- Engineered-plastics front baffle, steel backcan
- Grille
- Perforated steel, powder-coated
- Mounting
- 2 mounting arms, 1 safety cable attachment point
Environmental
- Indoor or Outdoor Use
- Indoor only, suitable for plenum locations
- Operating Temperature
- 0 °C to 50 °C
Certifications & Warranty
- Certifications
- EN 54-24:2008, UL 1480A, UL 2043 (plenum), NFPA 70 and NFPA 72
In the box
What's Included
-
2 × Bose FreeSpace FS2C in-ceiling loudspeakers, white (1 pair)
-
1 × cutout template
Installation
Installation & Mounting
Recommended Amplifiers
For a single zone, the Bose Veritas 1100BH delivers 1 × 100 W at 70 V or 100 V and has built-in EQ presets for FreeSpace FS loudspeakers. Bose recommends it for FreeSpace loudspeakers up to 6 inch models.
For two zones or more speakers, the Bose Veritas 2160BH delivers 2 × 160 W at 70 V or 100 V and the same FreeSpace FS preset. Both Veritas models have a Bluetooth 5.0 input and are available in 230 V UK versions. Select the preset for the exact FS2C loudspeaker model during commissioning.
Recommended Tile Bridge

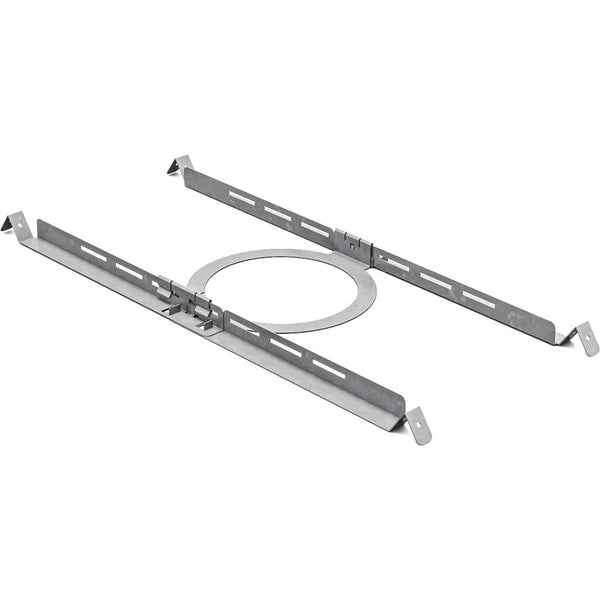

For suspended or drop ceilings, the Bose FreeSpace FS2C tile bridge (6-pack) is sold separately and is needed for suspended ceilings. It is not included with the FS2C.
Ownership and support
Ownership & Support
Expandability
The FS2C can be mixed with other FreeSpace FS in-ceiling, surface-mount and pendant models on the same distributed line, and DesignMax subwoofers can be added for extra low-frequency output. Shared FS voicing keeps the sound consistent across models.
Support
For a UAE project quotation, provide the exact model, quantity, installation location and associated equipment. Corporate AV can review the proposed system scope; confirm delivery timing, regional warranty and any separately supplied accessories on the quotation.
