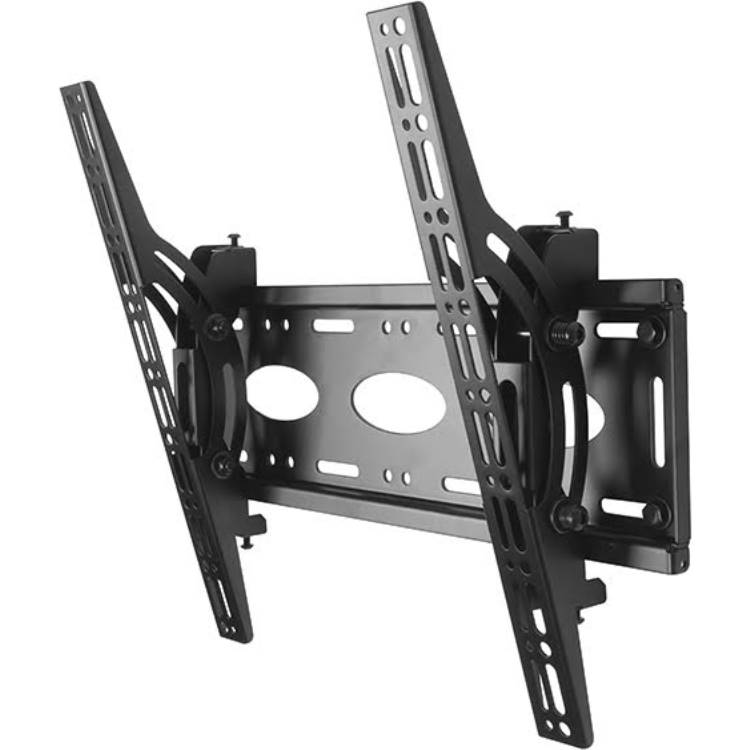

B-Tech BT8431-PRO/B 55-inch Tilting Screen Wall Mount

Model BT8431-PRO/B

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Maximum screen size: 55 inches for this PRO/B reference
  • Maximum screen load: 35 kg
  • Tilt: ±18°
  • Maximum fixing range: 465 mm horizontal × 400 mm vertical
  • Wall distance: 80 mm
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
B-Tech BT8431-PRO/B 55-inch Tilting Screen Wall Mount
  • Authorized Clevertouch Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the B-Tech BT8431-PRO/B?

The black B-Tech BT8431-PRO/B adds adjustable tilt to a hook-on screen installation. This listed PRO/B variant supports screens up to 55 inches and 35 kg, with a security locking bar for public-facing or shared spaces. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.

The black B-Tech BT8431-PRO/B adds adjustable tilt to a hook-on screen installation.

Use cases

Applications

  • Meeting-room screen installations

  • Indoor commercial signage

  • Presentation displays in shared spaces

Technical details

Technical Specifications

Compatibility

Maximum screen size
55 inches for this PRO/B reference
Maximum screen load
35 kg
Maximum screen size
55 inches for this PRO/B reference.
Maximum screen load
35 kg.

Adjustment

Tilt
±18°
Wall distance
80 mm
Tilt
±18°.
Wall distance
80 mm.

Installation & Security

Installation
Concrete, brick or suitable stud wall; security locking bar included

Model & Identification

Model
BT8431-PRO/B
Manufacturer part number
BT8431-PRO/B

General

Maximum fixing range
465 mm horizontal × 400 mm vertical
Maximum fixing range
465 mm horizontal × 400 mm vertical.

In the box

What's Included

  • B-Tech BT8431-PRO/B tilting wall mount

  • Security locking bar

  • Universal M4, M5, M6 and M8 mounting hardware

Installation

Installation & Mounting

Recommended Compatible Equipment

LG 55UH5Q 55-inch 4K UHD Signage Display. The LG 55UH5Q is 55 inches, weighs 14.3 kg and uses 300 × 300 mm VESA fixings, within this PRO/B variant's published limits. Confirm clearance throughout the required tilt range.

Installation

Check the exact supplied part number, display size, bare display weight, VESA holes, screw depth and rear clearance. Have a competent installer assess the wall structure, anchors and complete installed load. Limits quoted here follow the listed variant; later similarly named series revisions can differ.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.

Support

Share your BT8431-PRO/B quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

Complete your solution

Recommended Accessories

Expert FAQs

What is the B-Tech BT8431-PRO/B used for?

The black B-Tech BT8431-PRO/B adds adjustable tilt to a hook-on screen installation. This listed PRO/B variant supports screens up to 55 inches and 35 kg, with a security locking bar for public-facing or shared spaces.

Does BT8431-PRO/B include the screen?

No. This product is mounting hardware. The display and other system equipment are separate unless the quotation expressly includes them.

Can I select BT8431-PRO/B by screen size alone?

No. Match the exact variant's screen range, load rating and fixing pattern, then check screw depth, ventilation, connectors and the wall structure.

Which equipment should I consider with BT8431-PRO/B?

LG 55UH5Q 55-inch 4K UHD Signage Display. The LG 55UH5Q is 55 inches, weighs 14.3 kg and uses 300 × 300 mm VESA fixings, within this PRO/B variant's published limits. Confirm clearance throughout the required tilt range.

What is included with BT8431-PRO/B?

B-Tech BT8431-PRO/B tilting wall mount; Security locking bar; Universal M4, M5, M6 and M8 mounting hardware. Confirm the exact regional pack on the quotation.

What should I check before installing BT8431-PRO/B?

Check the exact supplied part number, display size, bare display weight, VESA holes, screw depth and rear clearance. Have a competent installer assess the wall structure, anchors and complete installed load. Limits quoted here follow the listed variant; later similarly named series revisions can differ.

Can Corporate AV help specify BT8431-PRO/B for a UAE project?

Share your BT8431-PRO/B quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.

How can I request a B-Tech BT8431-PRO/B quotation in the UAE?

Contact Corporate AV about B-Tech BT8431-PRO/B. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Share the quantity, connected equipment and project location so we can confirm availability, lead time and the required scope.
