Clevertouch 1542410 LIGHT Motorised Display Wall Lift
Model 1542410
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Support configuration: Wall-supported motorised height adjustment
- Screen-size reference: Up to 86-inch displays
- Vertical travel: 500 mm
- VESA adjustment: Horizontal 200–800 mm; vertical 200–600 mm
- Maximum display load: 125 kg
- Authorized Clevertouch Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Clevertouch 1542410?

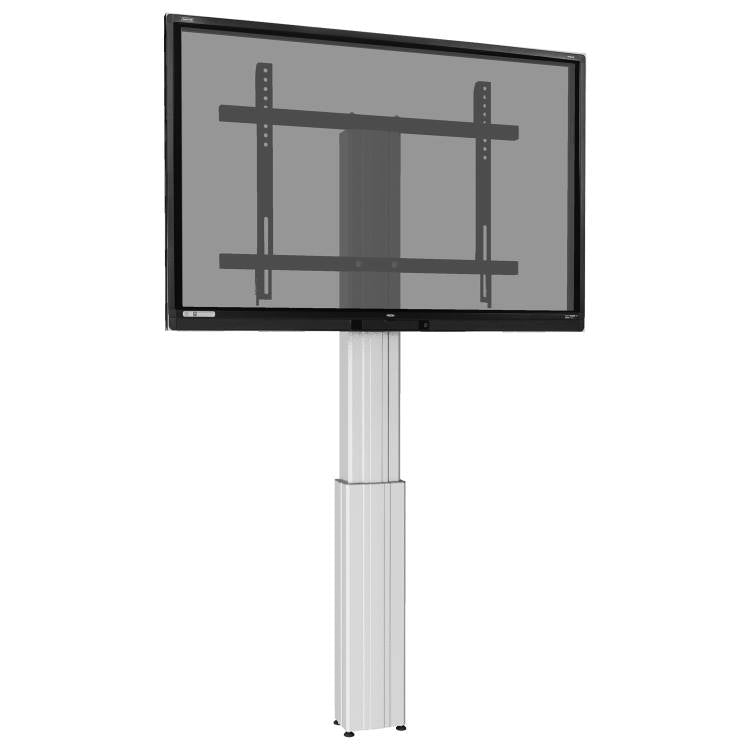

The Clevertouch 1542410 light motorised display wall lift provides a wall-supported motorised height adjustment for a supported presentation screen. Select the complete display-and-support combination around the required viewing position, room access and the manufacturer's mechanical limits. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
This is the 1542410 support accessory, supplied separately from the interactive display. Up to 86-inch displays. The product code identifies the specific lift or stand configuration; similarly named models should not be assumed to have the same load capacity or movement.
Why this product
Key Benefits
-
Support configuration
Wall-supported motorised height adjustment.
-
Screen-size reference
Up to 86-inch displays.
-
VESA adjustment
Horizontal 200–800 mm; vertical 200–600 mm.
Use cases
Applications
-
Presentation and teaching spaces with an approved screen
-
Meeting-room viewing-position planning
-
Replacement lift or stand enquiries
Technical details
Technical Specifications
Compatibility
- Screen-size reference
- Up to 86-inch displays
- VESA adjustment
- Horizontal 200–800 mm; vertical 200–600 mm
- Maximum display load
- 125 kg
- Maximum display load
- 125 kg.
Adjustment
- Vertical travel
- 500 mm
- Screen-centre height
- 1049–1549 mm in the referenced configuration
- Vertical travel
- 500 mm.
Installation & Security
- Mounting details
- Four levelling feet and two wall brackets
Model & Identification
- Model
- 1542410
- Manufacturer part number
- 1542410
General
- Support configuration
- Wall-supported motorised height adjustment
- Selection checks
- Screen weight, exact fixing pattern, movement clearance and complete fitted load
In the box
What's Included
-
Motorised lift and display-mount assembly
-
Four levelling feet
-
Two wall brackets
-
Wired height-control remote
Installation
Installation & Mounting
Recommended Compatible Equipment
Clevertouch Pro Series 3 65-inch 4K Interactive Display. Clevertouch's 65-inch Pro Series 3 display has a 600 × 400 mm pattern and approximately 35.05 kg panel weight, within this support's stated size, pattern and load range. Confirm the full assembly and fixing details.
Installation
Confirm the full display model, mounting pattern, supported load, fixing hardware and movement envelope before installation. Assess the supporting wall and floor as required by the lift instructions; a wall lift must not be treated as a freestanding trolley. Route cables with enough travel and keep the lift or tilt path clear. The linked 65-inch Pro Series 3 has a 600 × 400 mm pattern and a published panel weight of approximately 35.05 kg, within the referenced size and load limits; check screw engagement and fitted accessories.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Send Corporate AV the 1542410 quantity, complete display model, required movement and UAE location so the support configuration and installation scope can be checked.
