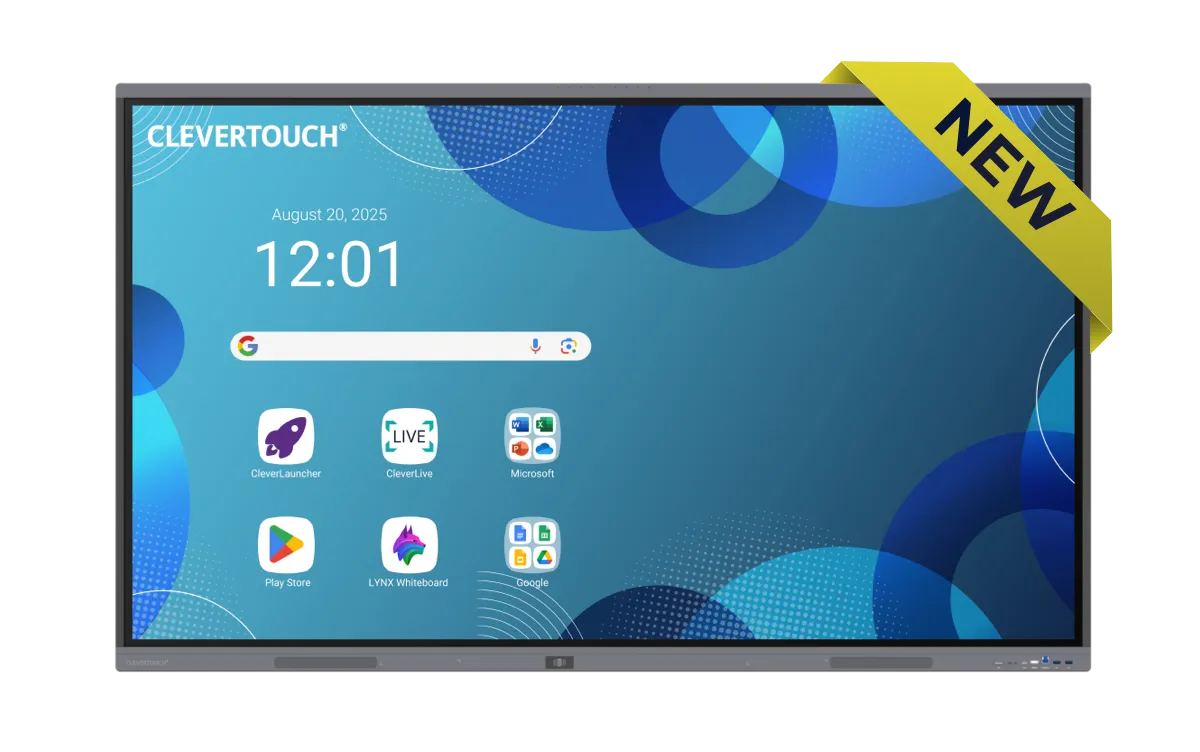

Clevertouch Pro Series 3 86-inch 4K Interactive Display
Model 15486PRO3MPN 1541352
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Display: 86-inch 3840 × 2160 UHD at 60 Hz
- Touch: 50-point high-precision infrared touch with palm rejection
- Memory: 16 GB RAM and 128 GB internal storage
- Brightness: 450 cd/m² published; glass measurement basis is not specified
- Authorized Clevertouch Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Clevertouch Pro Series 3 86?
The 86-inch Clevertouch Pro Series 3 gives larger classrooms and collaboration rooms a shared 4K workspace for explaining ideas, annotating content and presenting from connected devices. Built-in Android computing and room audio support everyday collaboration while leaving Windows computing and cameras available as separate project choices. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
A 86-inch interactive display combining a 4K screen, multi-user touch and built-in Android computing for classroom and workplace collaboration.
- Platform: Google EDLA-certified Android; current brochure lists Android 16, while earlier references list Android 14. Confirm supplied firmware and upgrade eligibility.
- Brightness: 450 cd/m² published; glass measurement basis is not specified.
Use cases
Applications
-
Collaborative classroom teaching
-
Staff training and group workshops
-
Meeting-room presentations and annotation
Technical details
Technical Specifications
Display
- Brightness
- 450 cd/m² published; glass measurement basis is not specified
Touch
- Touch
- 50-point high-precision infrared touch with palm rejection
- Touch
- 50-point high-precision infrared touch with palm rejection.
System & Software
- Platform
- Google EDLA-certified Android; current brochure lists Android 16, while earlier references list Android 14. Confirm supplied firmware and upgrade eligibility
- Memory
- 16 GB RAM and 128 GB internal storage
- Memory
- 16 GB RAM and 128 GB internal storage.
Audio & Camera
- Audio
- Two 25 W speakers and 20 W subwoofer
- Microphones and camera
- Eight-microphone array; camera optional
Connectivity
- USB-C
- Front port supports video, audio, touch, network and up to 65 W charging with a compatible host and cable
- Connectivity
- Three HDMI inputs, HDMI output, DisplayPort, USB touch, LAN input/output, WiFi 6E and Bluetooth 5.2
Physical & Mounting
- Net display weight
- 55.00 kg in the current brochure; approximate
- VESA mounting
- 800 × 600 mm
- Dimensions (W × H × D)
- 1957 × 1171 × 97 mm; approximate
Model & Identification
- Model
- Pro Series 3 86
- Manufacturer part number
- 1541352
General
- Display
- 86-inch 3840 × 2160 UHD at 60 Hz
- Operating environment
- Indoor, 0–40°C
- Display
- 86-inch 3840 × 2160 UHD at 60 Hz.
In the box
What's Included
-
86-inch Clevertouch Pro Series 3 display
-
3 m HDMI cable
-
3 m USB-A to USB-B cable
-
1.5 m USB-C cable
-
3 m regional power cable
-
Remote control
-
Two remote-control batteries
-
Two dual-recognition styluses
-
User guide
-
Quick installation guide
-
Clevertouch WiFi module
Installation
Installation & Mounting
Recommended Compatible Equipment
VSYS VS01A-69F Fixed TV Mount. VSYS wall-mount candidate covering the 86-inch screen, 800 × 600 mm fixings and 55.00 kg reference load. Confirm the exact supplied panel revision, rear clearance, anchors and total installed load.
VSYS VTLX16-69FW TV Cart. VSYS floor-stand option with a screen range, listed VESA pattern and 120 kg rating covering the reference panel. Confirm actual panel weight, accessory loads and stability during touch use.
Installation
Confirm the supplied panel revision, 800 × 600 mm VESA pattern and 55.00 kg reference display weight. Check the complete installed load, access route, viewing distance, touch reach, wall anchors, cable clearances and trolley stability. Specify a camera and compatible Windows OPS PC separately if required.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your Pro Series 3 86 quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
