Product details
Overview

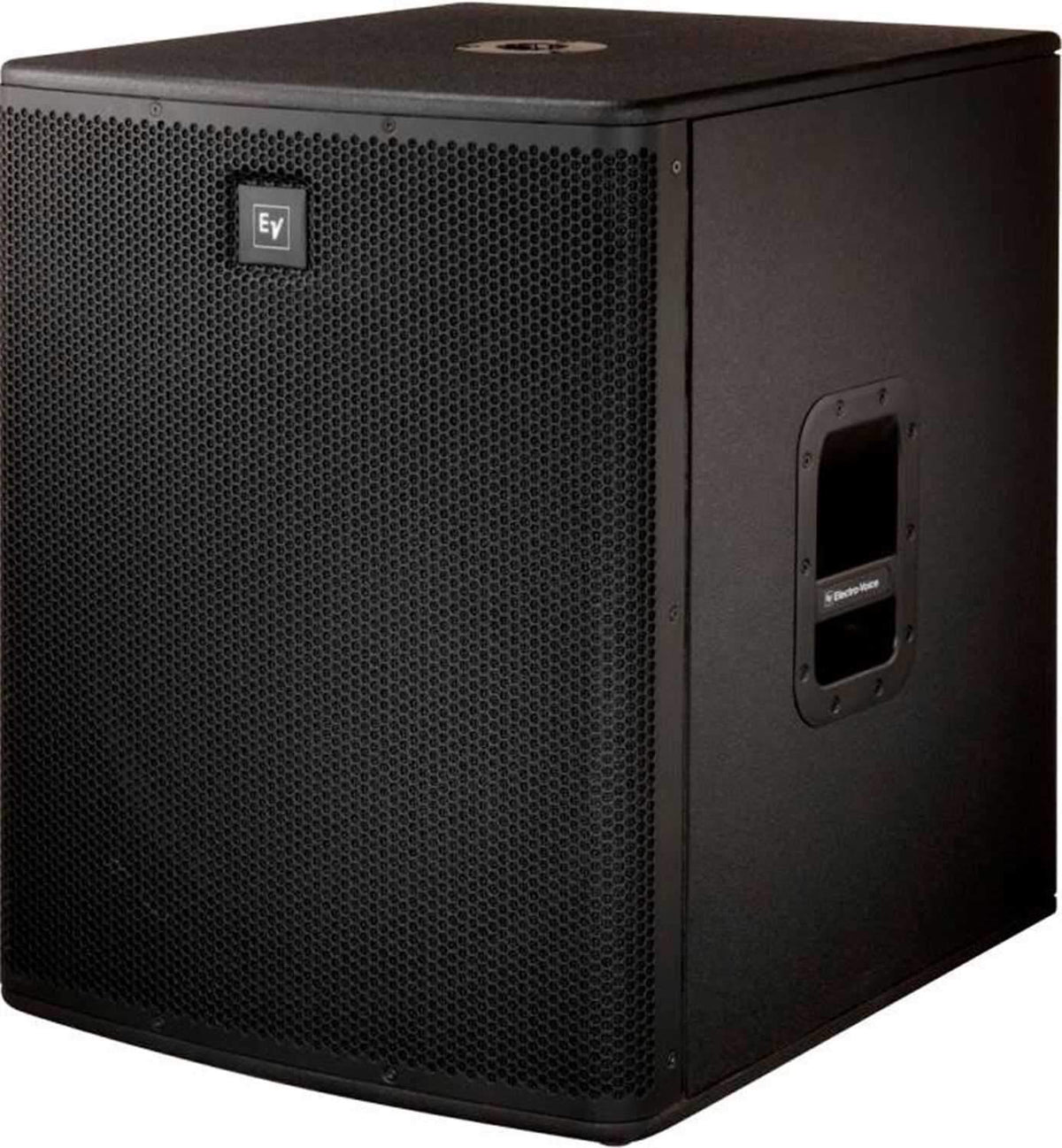

Electro-Voice ELX118 18" Passive Subwoofer
Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.
See it in detail
Product Video
Why this product
Key Benefits
-
Designed for House of Worship, Pro Music, and other applications.
-
18" woofer provides extended low-frequency output
-
32 Hz – 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL
-
400 W continuous and 1600 W peak power handling
-
Rugged wood cabinet—supports pole-mounted or stacked Live Loudspeakers
Technical details
Technical Specifications
System
- LF Transducer
- (1) EVS-18K, 457mm (18") Woofer
- HF Transducer
- N/A
- Crossover Frequency
- N/A Hz
Frequency
- Frequency Response (-3 dB)
- 50 Hz - 100 Hz Hz
- Frequency Response (-10 dB)
- 35 Hz - 200 Hz Hz
- Recommended High-Pass Frequency
- 30 Hz
Performance & Coverage
- Axial Sensitivity
- 96 dB
- Max. SPL/1m (calc)
- 134 dB
- Coverage
- (Nominal -6 dB) H° Omnidirectional °
- Coverage
- (Nominal -6 dB) V° Omnidirectional °
Power
- Nominal Impedance (Passive)
- 8 Ohms
- Minimum Impedance
- 6.7 Ohms
Connectivity
- Connector Type
- Dual NL4
Physical
- Case Material
- 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
- Grill
- 18GA Steel with Black Powdercoat
- Height
- 661 mm (26.02")
- Width
- 507 mm (19.96")
- Depth
- 574 mm (22.6")
- Weight Net
- 31.8 kg (70.11 lbs)
Shipping & Packaging
- Shipping Weight
- 35.4 kg (78.04 lbs)
