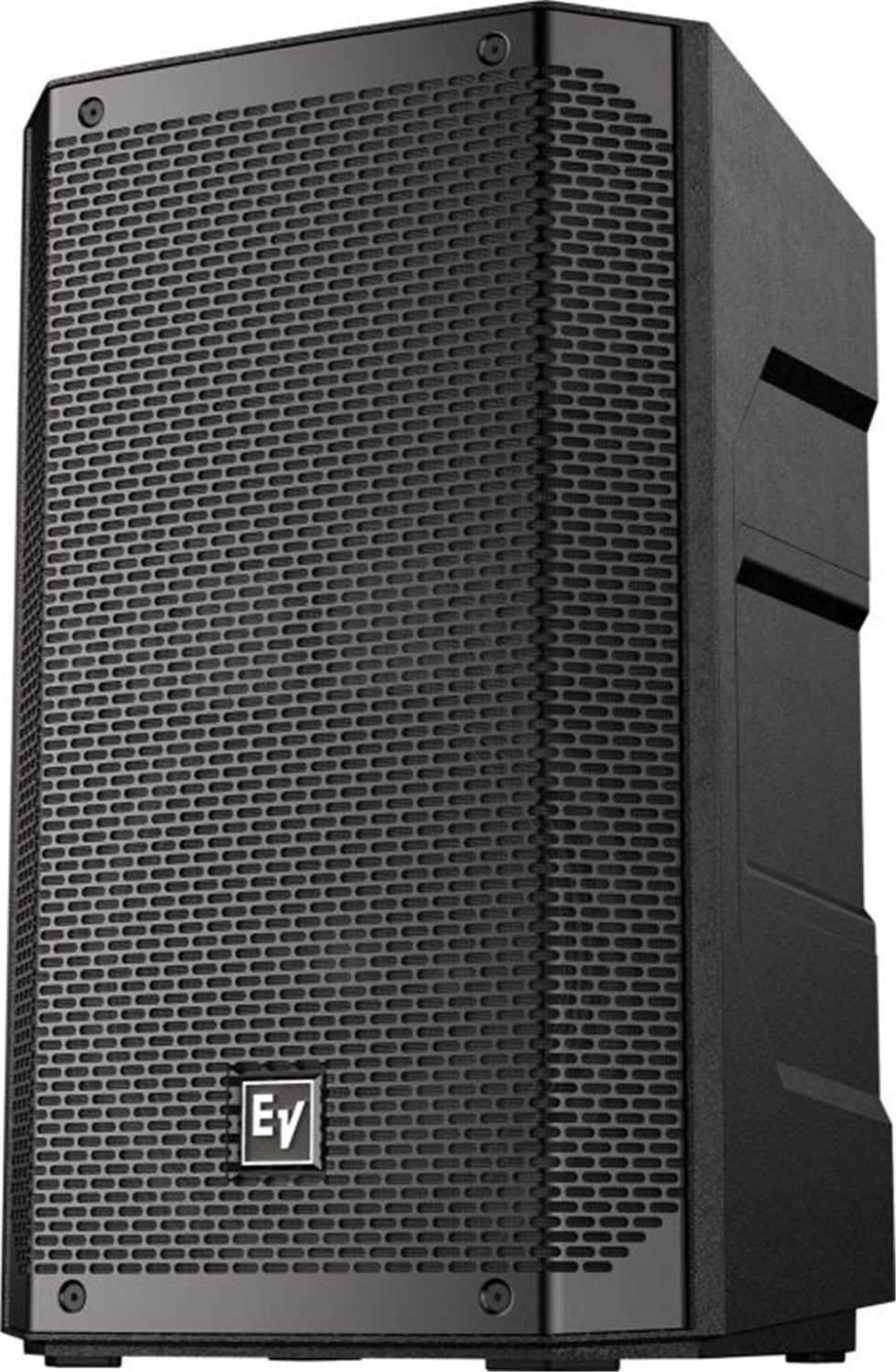

Electro-Voice ELX200-10 10" Passive Loudspeaker
Model ELX200-10
Price on Request
Availability: In Stock
- Authorized Electro Voice Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Electro-Voice ELX200-10 10" Passive Loudspeaker
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a go to for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Why this product
Key Benefits
-
1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
-
1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
-
High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
-
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
-
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
Technical details
Technical Specifications
System
- Crossover Frequency
- 2 kHz
- HF Transducer
- DH-1C 1-inch titanium compression driver
- LF Transducer
- EVS-10M 254 mm (10 in)
- Woofer Size
- 10inch
Frequency
- Frequency Range (-10 dB)
- 49 Hz - 22 kHz
- Frequency Response (-3 dB)
- 65 Hz - 20 kHz
- Recommended High-Pass Frequency
- 55Hz
Performance & Coverage
- Coverage (Nominal -6 dB) H
- 90°
- Coverage (Nominal -6 dB) V
- 60°
- Max. SPL/1m (calc)
- 127dB
Power
- Minimum Impedance
- 7.2?
- Nominal Impedance
- 8?
- Power Handling (Continuous / Peak)
- 300 W/1200W
- Power Rating
- 1200W
Connectivity
- Connector Type
- Dual NL4
Physical
- Available Color
- Black
- Depth
- 12.56" (319mm)
- Enclosure Material
- Polypropylene Composite
- Grille
- 18 AWG steel with powdercoat
- Height
- 20.91" (531mm)
- Suspension
- (3) M10 suspension points
- Weight Net
- 29.54lbs (13.4kg)
- Width
- 12.99" (330mm)
Shipping & Packaging
- Shipping Weight
- 33.73lbs (15.3kg)
General
- Family
- ELX200
- Speaker Type
- Full-Range
More details
Additional Information
Specifications:
- Axial Sensitivity (SPL, 1 W @ 1 m): 90dB
